SR3D-401

Tianji Gento
Industrial-RobotChinaChinaVeröffentlicht
SR3D-401
Vergleichen
Quellen:
en.tianjizn.com
Branchen:
AutomobilindustrieElektronikFertigung
Anwendungen:
MontageMaterialhandhabungKommissionierung
Preis:
Nicht angekündigt

BESCHREIBUNG

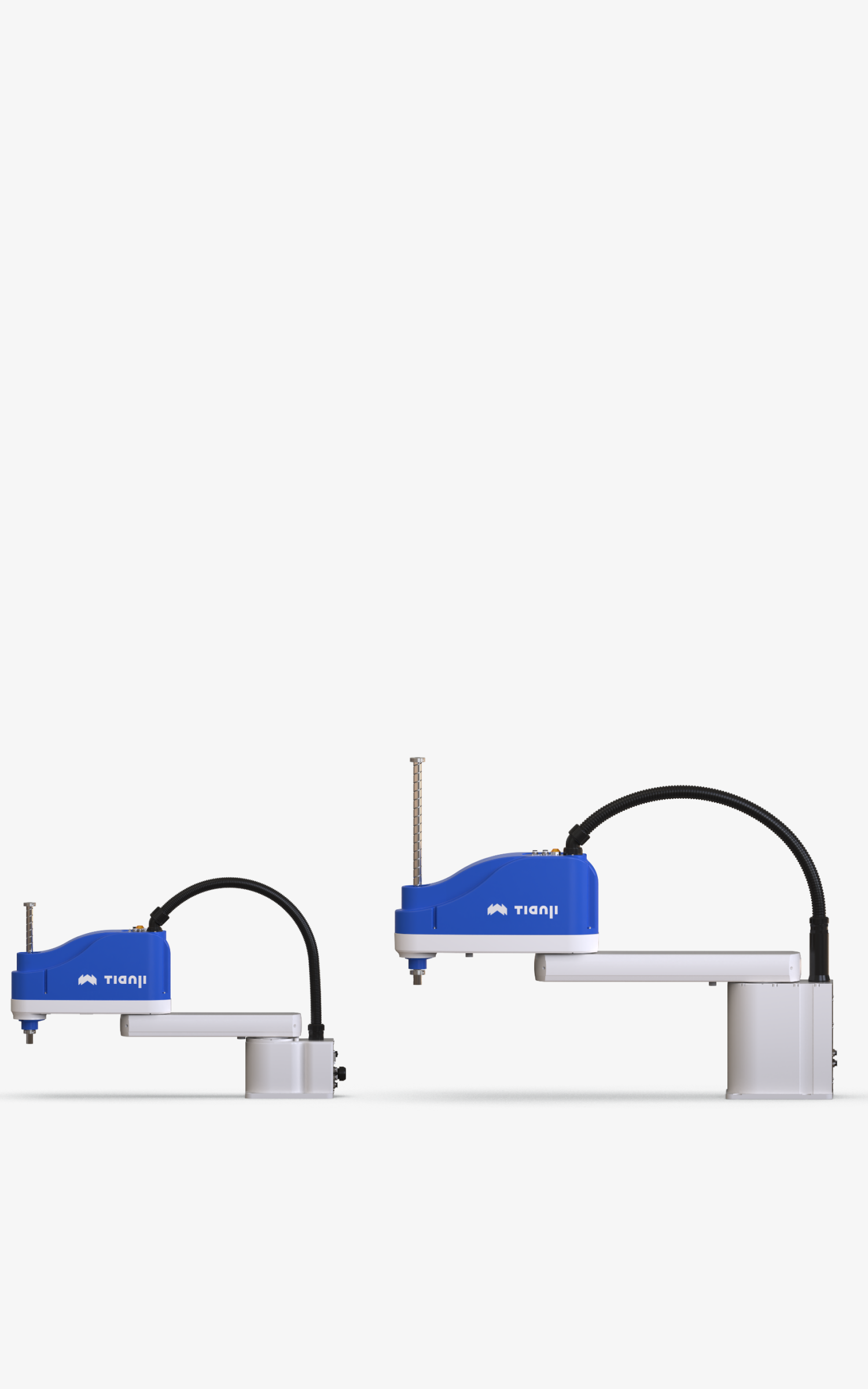

The SR3D-401 is a four-axis SCARA robot from Tianji with a 400 mm arm and 3 kg payload. It repeats to ±0.01 mm on the J1+J2 axes and completes the standard cycle in 0.42s, with a 150mm Z-axis stroke. The high-rigidity arm and robot-specific motors hold accuracy at speed for loading, assembly, inspection and palletising.

FUNKTIONEN

  • 3 kg payload on a 400 mm arm
  • ±0.01 mm J1+J2 repeatability
  • 0.42s standard cycle time
  • 150mm Z-axis stroke
  • 14.5 kg body weight
  • High-rigidity arm for stable high-speed operation

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht14.5 kg
Traglast3 kg
Reichweite400 mm
Wiederholgenauigkeit±0.01 mm
Mobilität
BewegungsartStationär
Freiheitsgrade4
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the SR3D-401?

The SR3D-401 is a four-axis SCARA robot from Tianji with a 400 mm arm and 3 kg payload. It repeats to ±0.01 mm on the J1+J2 axes and completes the standard cycle in 0.42s, with a 150mm Z-axis stroke.

Who makes the SR3D-401?

The SR3D-401 is made by Tianji Gento, a robotics company based in China.

How much does the SR3D-401 cost?

Tianji Gento has not publicly announced pricing for the SR3D-401. You can enquire through RobotAIGeek for current pricing.

What is the SR3D-401 used for?

The SR3D-401 is designed for montage, materialhandhabung, and kommissionierung. It is used in automobilindustrie, elektronik, and fertigung settings.

What is the payload capacity of the SR3D-401?

The SR3D-401 has a payload capacity of 3 kg and a reach of 400 mm.

How much does the SR3D-401 weigh?

The SR3D-401 weighs 14.5 kg.

How many degrees of freedom does the SR3D-401 have?

The SR3D-401 has 4 degrees of freedom.
