Shihe HighMate AP Series

Shihe Technology
Cleaning-RobotsChinaChinaVeröffentlicht
Shihe HighMate AP Series
Vergleichen
Quellen:
robotplusplus.cn
Branchen:
EnergieFertigung
Anwendungen:
ReinigungBeschichtenSprühen
Preis:
Nicht angekündigt

BESCHREIBUNG

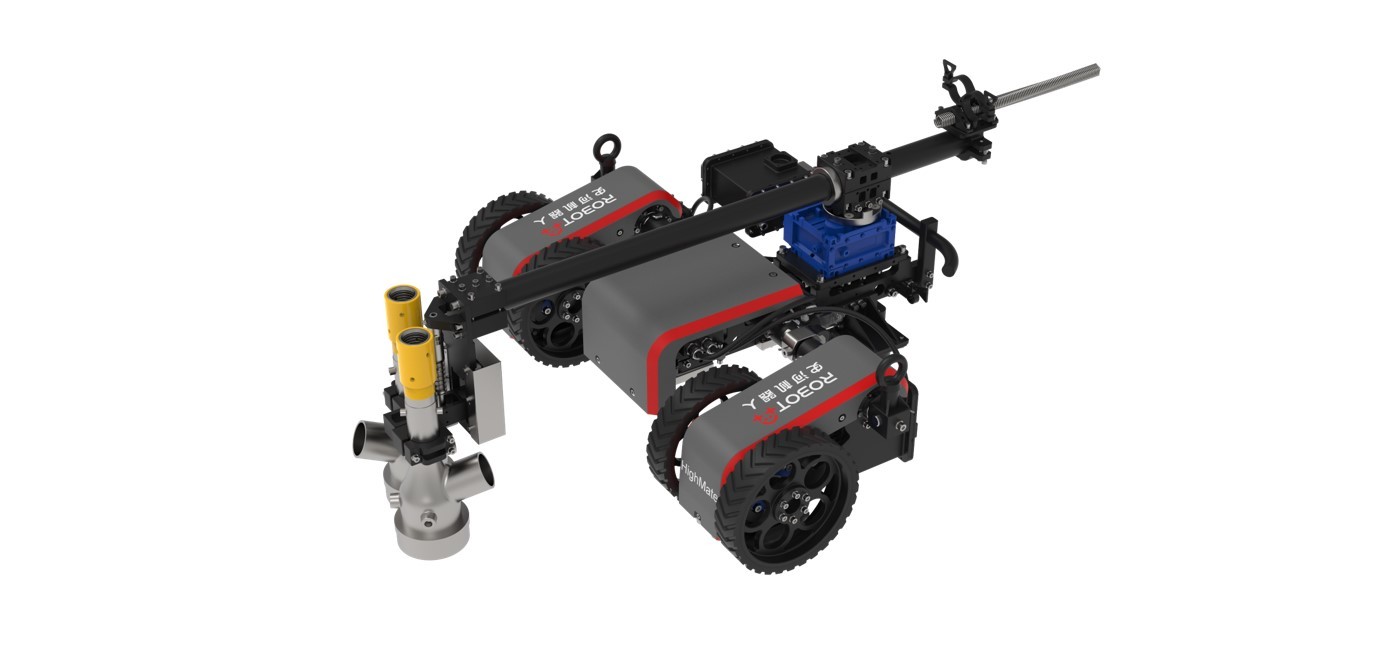

The AP series is Shihe's modular anti-corrosion platform for petrochemical storage tanks, and it is sold as a construction kit rather than a single machine: one magnetic chassis, a process control program, an execution module and a process attachment, combined for the job in hand. Three execution modules are offered - a swing-arm reciprocating module, a linear reciprocating module and a water-jet spray disc - and between them they deliver five processes. Open blasting runs two guns at up to 35 m2/h, dry or wet. Vacuum recirculating blasting runs two vacuum guns at up to 10 m2/h, recovering the abrasive. There is medium-to-low pressure washing and ultra-high-pressure water jetting, semi-open spraying down to a 60 micron minimum film thickness, and recovery-type water jetting at up to 45 m2/h. The platform itself is 760 x 1,000 x 350 mm and 66 kg, drawing a maximum 1,200 W and travelling at 0 to 7.6 m/min. Shihe describes it as continuing the reliability and safety design of its magnetic wall-climbing line.

FUNKTIONEN

  • Modular architecture: chassis + process control program + execution module + process attachment
  • Three execution modules: swing-arm reciprocating, linear reciprocating, water-jet spray disc
  • Open blasting, dry or wet: two guns, up to 35 m2/h
  • Vacuum recirculating blasting: two vacuum guns, up to 10 m2/h
  • Medium and low pressure washing plus ultra-high-pressure water jetting
  • Semi-open spraying with a minimum film thickness of 60 microns
  • Recovery-type water-jet spray disc at up to 45 m2/h
  • Platform dimensions 760 x 1,000 x 350 mm
  • weight 66 kg
  • Maximum installed power 1,200 W
  • travel speed 0-7.6 m/min

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht66 kg
AbmessungenL 1 m × W 760 mm × H 350 mm
Mobilität
BewegungsartRadbasiert
ManipulationNiedrig
EinsatzumgebungPetrochemical storage tank and vessel exteriors requiring blasting, washing, spraying and anti-corrosion repair
AktorenMagnetic-adhesion chassis accepting swing-arm reciprocating, linear reciprocating or water-jet spray-disc execution modules
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the Shihe HighMate AP Series?

The AP series is Shihe's modular anti-corrosion platform for petrochemical storage tanks, and it is sold as a construction kit rather than a single machine: one magnetic chassis, a process control program, an execution module and a process attachment, combined for the job in hand.

Who makes the Shihe HighMate AP Series?

The Shihe HighMate AP Series is made by Shihe Technology, a robotics company based in China.

How much does the Shihe HighMate AP Series cost?

Shihe Technology has not publicly announced pricing for the Shihe HighMate AP Series. You can enquire through RobotAIGeek for current pricing.

What is the Shihe HighMate AP Series used for?

The Shihe HighMate AP Series is designed for reinigung, beschichten, and sprühen. It is used in energie and fertigung settings.

How much does the Shihe HighMate AP Series weigh?

The Shihe HighMate AP Series weighs 66 kg.
