BESCHREIBUNG

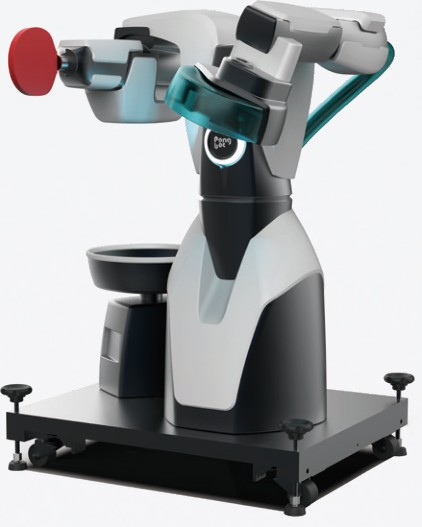

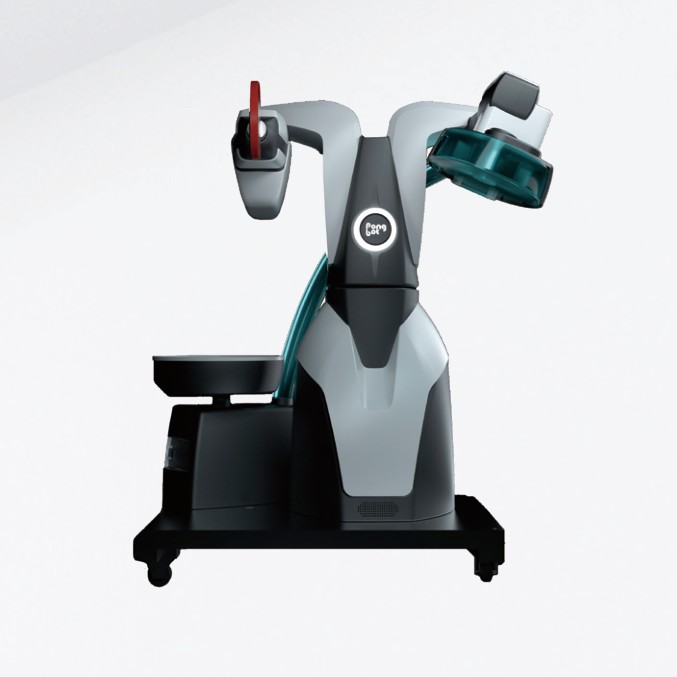

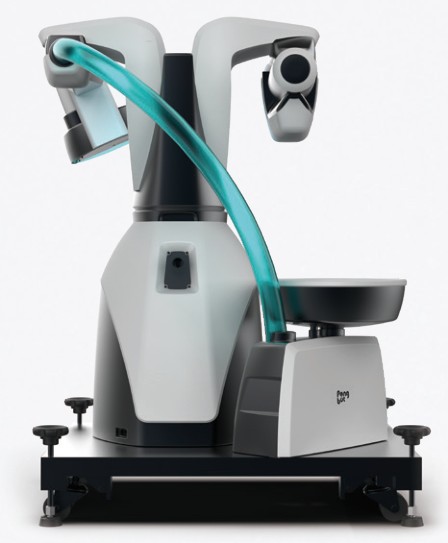

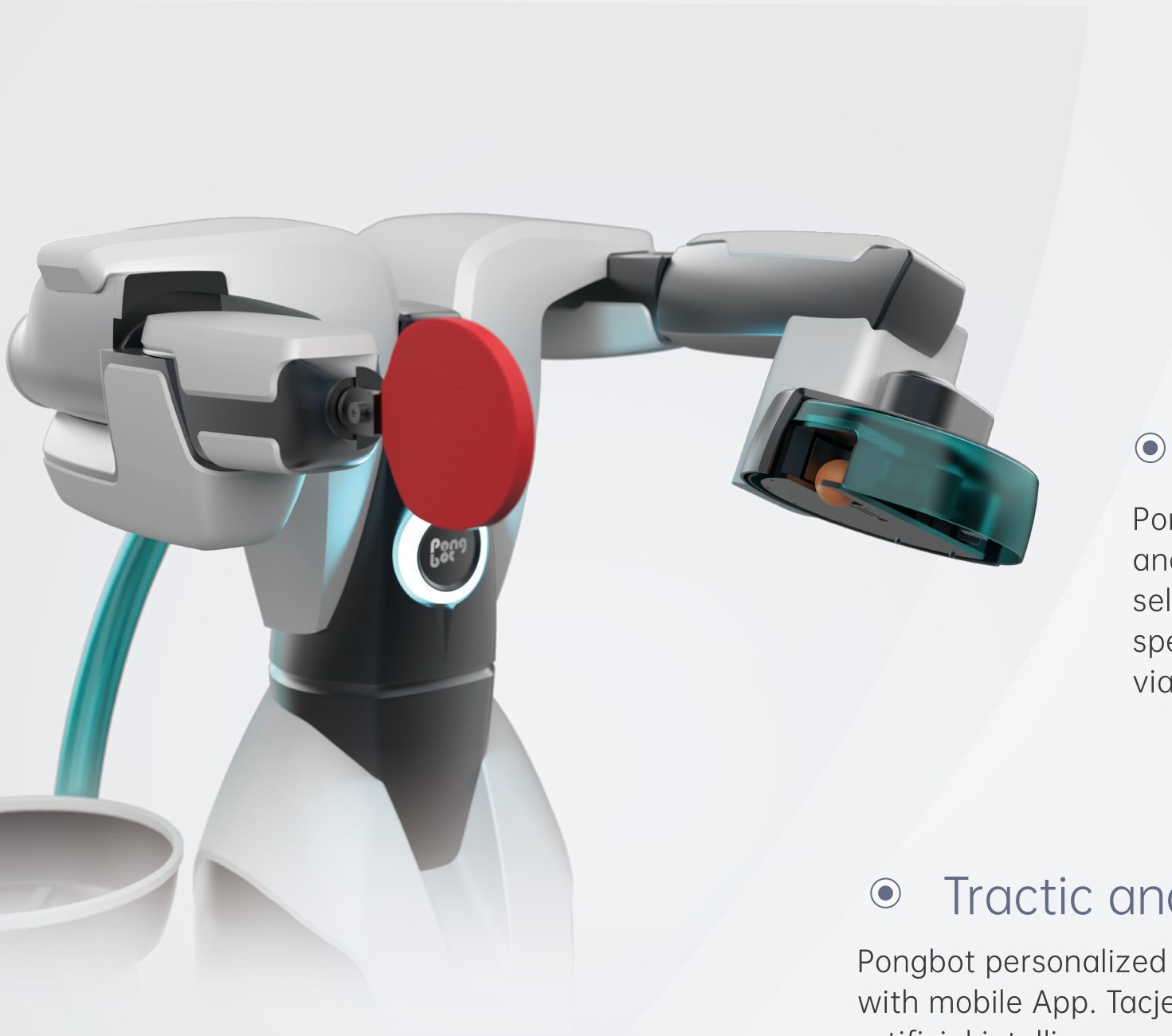

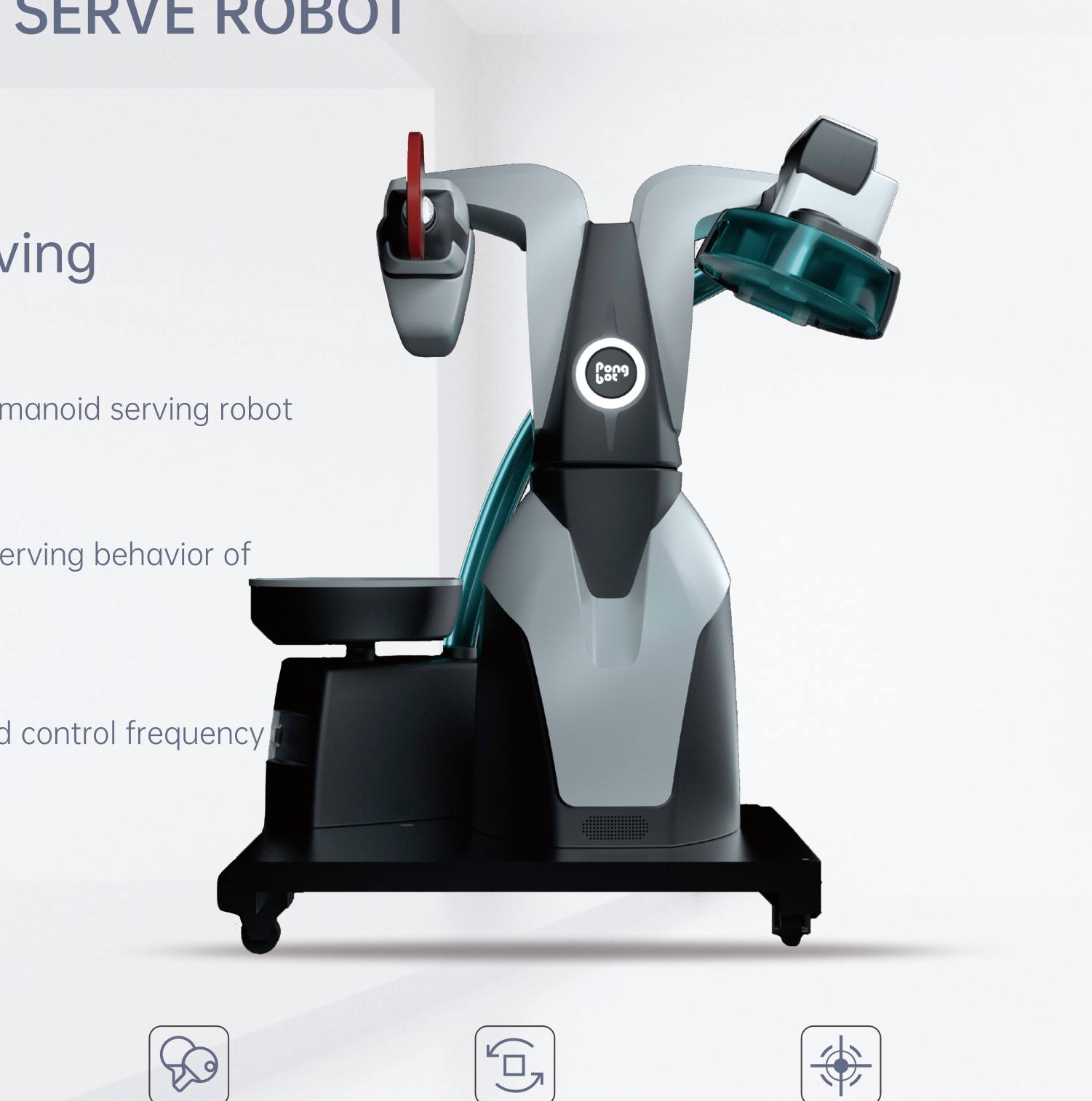

The M-ONE is PongBot's odd one out. Every other machine in its range fires balls from a barrel; the M-ONE is a robot arm that holds an actual table tennis bat and swings it, reproducing the way a coach serves rather than approximating the result. PongBot calls it the world's first humanoid serving robot. Because it strikes with a bat, the bat itself becomes a variable: rubbers can be swapped to change how the ball behaves, and the arm switches between topspin, backspin and no-spin by changing its stroke. Ball speed runs from 4 to 12 m/s with spin up to 80 revolutions per second, at 30 to 85 balls a minute, and it can place the ball anywhere on the table. It is a substantial machine: 963 x 925 x 1145 mm and 127 kg, running on mains power at 200 W, with a hopper holding up to 180 balls and an optional touchscreen. Settings are driven from a mobile app, and an optional trajectory-analysis system records where each ball lands, compares strokes against a reference and syncs the data to the cloud for review on any device.
FUNKTIONEN
- Arm-type serving robot: swings a real table tennis bat instead of firing from a barrel
- Reproduces coach-like serving actions
- Interchangeable bats to vary rubber and ball behaviour
- Topspin, backspin and no-spin, switched by stroke
- Ball speed 4-12 m/s
- Spin up to 80 revolutions per second
- Serving frequency 30-85 balls per minute
- Places the ball anywhere on the table
- Ball storage up to 180
- Robot dimensions 963.2 x 924.5 x 1145 mm (H x W x D)
- packed 1080 x 1160 x 1300 mm
- Weight 127 kg
- Mains powered: 220-240 V AC, 50/60 Hz, 200 W
- Operating temperature 0-40 C
- Optional touchscreen for on-machine control
- Mobile app control of spin, speed and placement
- Optional trajectory-analysis system with movement comparison and cloud sync
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 127 kg |
|---|---|
| Abmessungen | L 1.15 m × W 925 mm × H 963 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Einsatzumgebung | Indoor, beside a table tennis table; operating temperature 0-40 C |
| Sensorik & Rechenleistung | |
| Sensoren | optional trajectory-analysis camera system |
| Konnektivität | Mobile app control; optional on-machine touchscreen |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 127 kg |
|---|---|
| Abmessungen | L 1.15 m × W 925 mm × H 963 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Einsatzumgebung | Indoor, beside a table tennis table; operating temperature 0-40 C |
| Sensorik & Rechenleistung | |
| Sensoren | optional trajectory-analysis camera system |
| Konnektivität | Mobile app control; optional on-machine touchscreen |
Bilder
martti
martti
martti
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the PONGBOT M-ONE?
The M-ONE is PongBot's odd one out. Every other machine in its range fires balls from a barrel; the M-ONE is a robot arm that holds an actual table tennis bat and swings it, reproducing the way a coach serves rather than approximating the result. PongBot calls it the world's first humanoid serving robot.
Who makes the PONGBOT M-ONE?
The PONGBOT M-ONE is made by PongBot, a robotics company based in China.
How much does the PONGBOT M-ONE cost?
PongBot has not publicly announced pricing for the PONGBOT M-ONE. You can enquire through RobotAIGeek for current pricing.
What is the PONGBOT M-ONE used for?
The PONGBOT M-ONE is designed for analyse, unterhaltung, and bildung. It is used in verbraucher, freizeit & tourismus, and bildung settings.
How much does the PONGBOT M-ONE weigh?
The PONGBOT M-ONE weighs 127 kg.
