BESCHREIBUNG

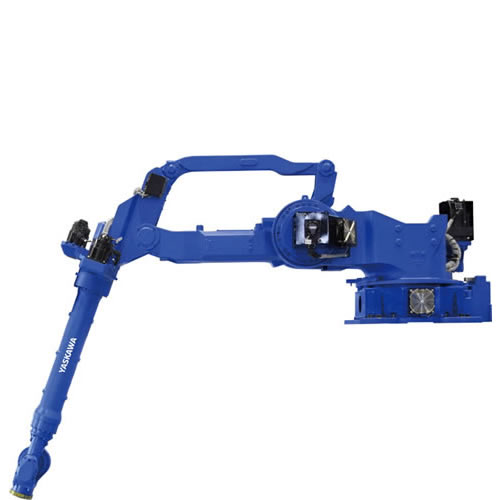

PH130RF ist ein Industrial-Robot von YASKAWA Electric. Er ist für Materialhandhabung ausgelegt. Eckdaten: 1560 kg, 130 kg Traglast, 3474 mm Reichweite, 6 Freiheitsgrade, erschienen 2019.
Yaskawa Motoman PH130RF is a PH Series industrial robot with 130 kg payload and 3474 mm horizontal reach (1560 kg mass, ±0.3 mm repeatability).
FUNKTIONEN
- Payload 130 kg
- Horizontal reach 3474 mm
- Vertical reach 4151 mm
- Mass 1560 kg
- Repeatability ±0.3 mm
- 6 controlled axes
- Applications: Material Handling, Press Tending
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 1560 kg |
|---|---|
| Traglast | 130 kg |
| Reichweite | 3.47 m |
| Wiederholgenauigkeit | ±0.3 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 1560 kg |
|---|---|
| Traglast | 130 kg |
| Reichweite | 3.47 m |
| Wiederholgenauigkeit | ±0.3 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
Bilder
martti
Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the PH130RF?
Yaskawa Motoman PH130RF is a PH Series industrial robot with 130 kg payload and 3474 mm horizontal reach (1560 kg mass, ±0.3 mm repeatability).
Who makes the PH130RF?
The PH130RF is made by YASKAWA Electric, a robotics company based in Japan.
How much does the PH130RF cost?
YASKAWA Electric has not publicly announced pricing for the PH130RF. You can enquire through RobotAIGeek for current pricing.
What is the PH130RF used for?
The PH130RF is designed for materialhandhabung. It is used in automobilindustrie and fertigung settings.
What is the payload capacity of the PH130RF?
The PH130RF has a payload capacity of 130 kg and a reach of 3.47 m.
How much does the PH130RF weigh?
The PH130RF weighs 1,560 kg.
How many degrees of freedom does the PH130RF have?
The PH130RF has 6 degrees of freedom.
When was the PH130RF released?
The PH130RF was released in 2019.
