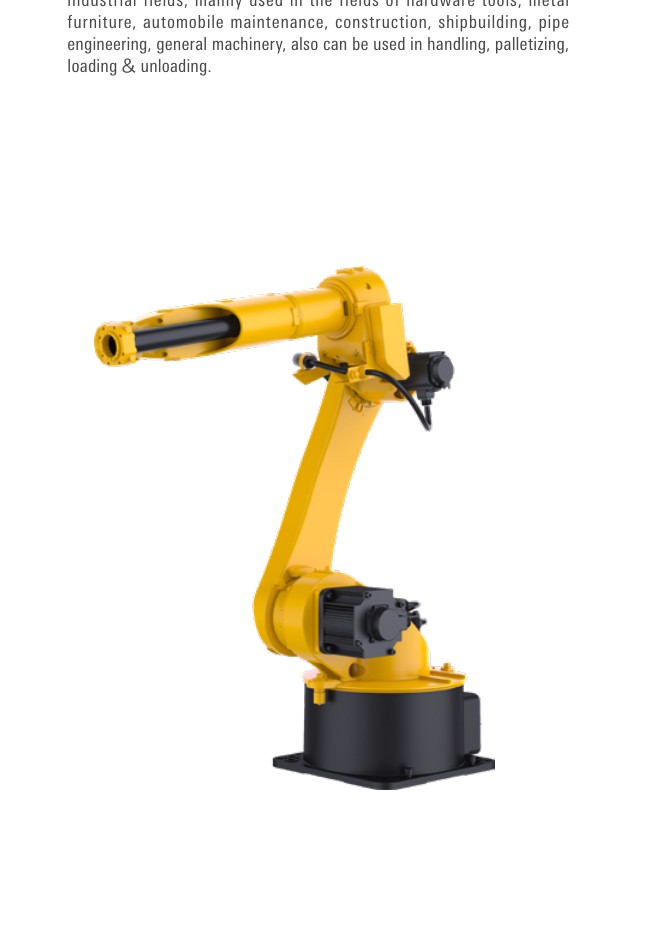

Peitian AIR25-1840-HW

Peitian Robot
Industrial-RobotChinaChinaVeröffentlicht
Peitian AIR25-1840-HW
Vergleichen
Quellen:
cdn.robotaigeek.com
Branchen:
ForschungFertigung
Anwendungen:
MontagePick-and-PlaceLoading and unloadinghandlingpalletisinginjection mouldingweldinggrinding and polishingdispensingpacking
Preis:
Nicht angekündigt

BESCHREIBUNG

The AIR25-1840-HW is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 25 kg to a reach of 1843 mm. Peitian quotes position repeatability of ±0.06mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling. The manipulator weighs 275 kg. It is sealed to IP54(Wrist: IP67), and can be mounted Floor or wall or ceiling. It runs on Peitian's inCube22 / ARC5-25 controller cabinet. This is a hollow-wrist model: dress packs and services run through the wrist rather than around it, which stops cables snagging and wearing in applications where the tool rotates continuously.

FUNKTIONEN

  • Hollow-wrist six-axis industrial robot arm
  • Rated payload 25 kg
  • Maximum reach 1843 mm
  • Manipulator weight 275 kg
  • Position repeatability ±0.06mm
  • Ingress protection IP54(Wrist: IP67)
  • Mounting: Floor / wall / ceiling
  • Compatible controller cabinets: inCube22 / ARC5-25
  • Working range Axis 1 rotation -170°/+170°
  • Axis 2 arm -95°/+150°
  • Axis 3 arm -90°/+143°
  • Axis 4 wrist -155°/+155°
  • Axis 5 bend -120°/+120°
  • Axis 6 turn -360°/+360°
  • Rotation rate Axis 1 rotation 220°/s
  • Axis 2 arm 220°/s
  • Axis 3 arm 143°/s
  • Axis 4 wrist 420°/s
  • Axis 5 bend 420°/s
  • Axis 6 turn 720°/s
  • Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
  • No corrosive, flammable or explosive gases permitted in the operating environment

TECHNISCHE DATEN

Physisch
Gewicht275 kg
Traglast25 kg
Reichweite1.84 m
Mobilität
BewegungsartStationär
Freiheitsgrade6
ManipulationHoch
EinsatzumgebungIndustrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases
Aktoren6-axis hollow-wrist six-axis manipulator, mounted Floor or wall or ceiling
Sensorik & Rechenleistung
Software / KIDriven by Peitian inCube22 / ARC5-25 controller cabinets
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the Peitian AIR25-1840-HW?

The AIR25-1840-HW is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 25 kg to a reach of 1843 mm. Peitian quotes position repeatability of ±0.06mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling.

Who makes the Peitian AIR25-1840-HW?

The Peitian AIR25-1840-HW is made by Peitian Robot, a robotics company based in China.

How much does the Peitian AIR25-1840-HW cost?

Peitian Robot has not publicly announced pricing for the Peitian AIR25-1840-HW. You can enquire through RobotAIGeek for current pricing.

What is the Peitian AIR25-1840-HW used for?

The Peitian AIR25-1840-HW is designed for montage, pick-and-place, loading and unloading, and handling. It is used in forschung and fertigung settings.

What is the payload capacity of the Peitian AIR25-1840-HW?

The Peitian AIR25-1840-HW has a payload capacity of 25 kg and a reach of 1.84 m.

How much does the Peitian AIR25-1840-HW weigh?

The Peitian AIR25-1840-HW weighs 275 kg.

How many degrees of freedom does the Peitian AIR25-1840-HW have?

The Peitian AIR25-1840-HW has 6 degrees of freedom.
