BESCHREIBUNG

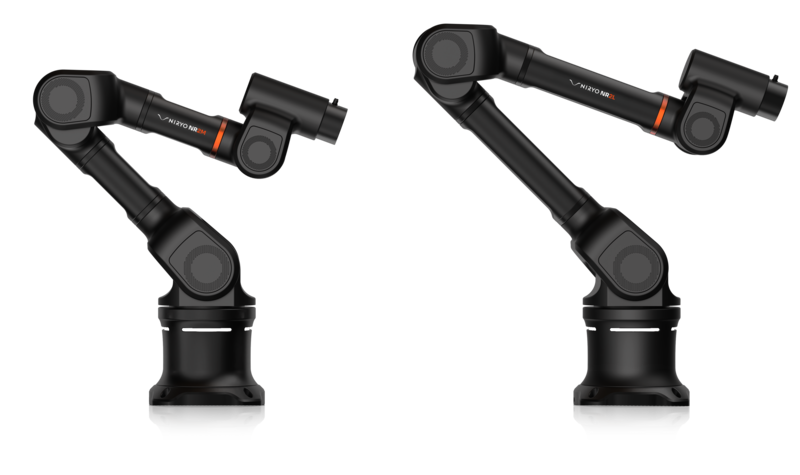

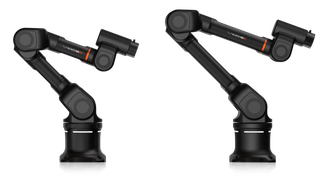

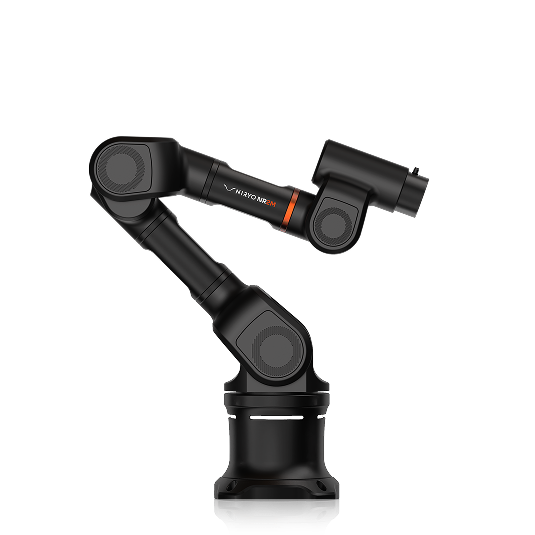

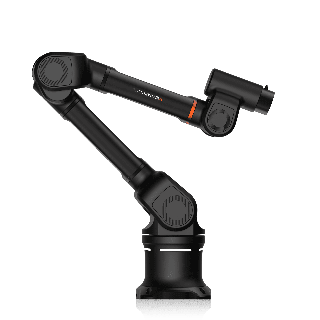

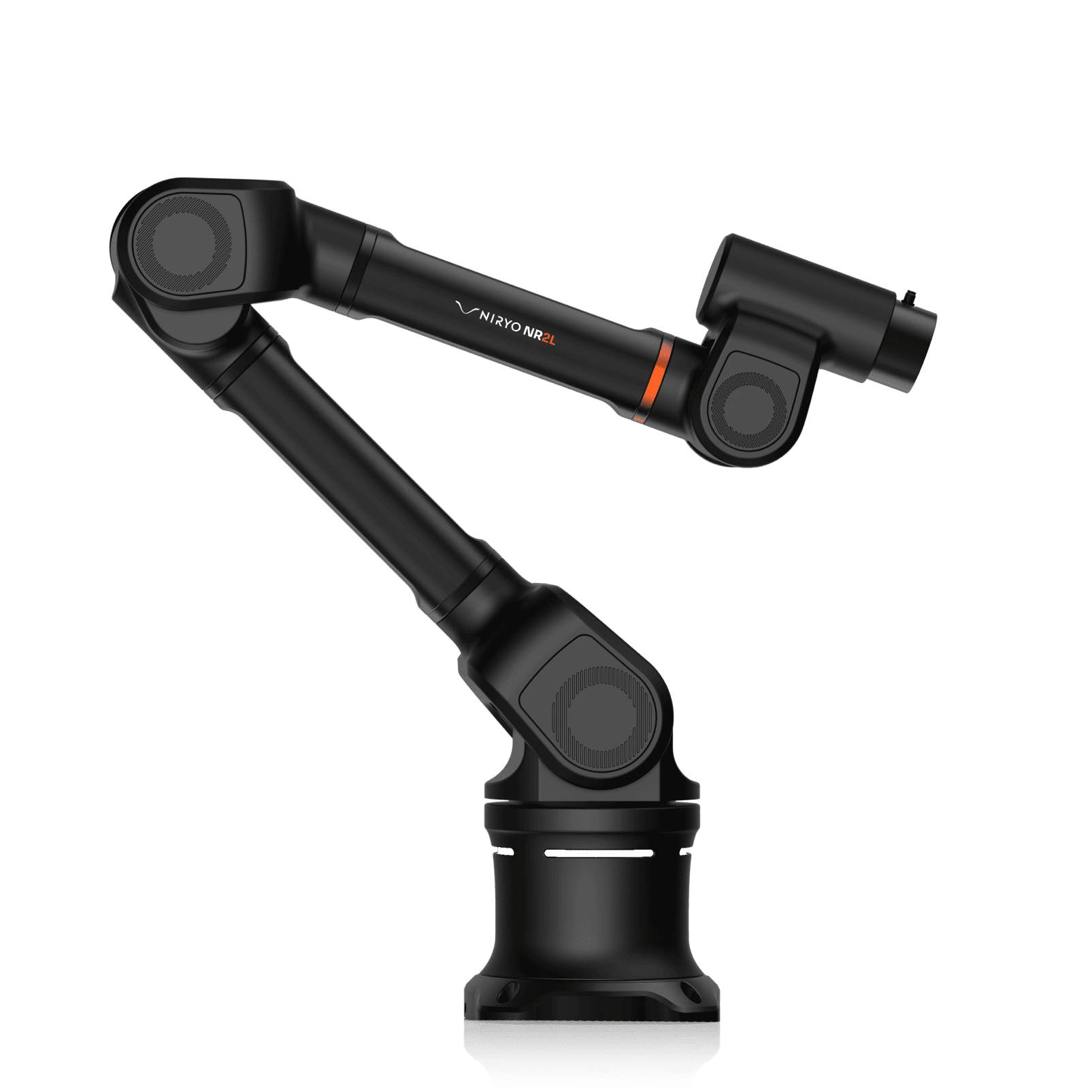

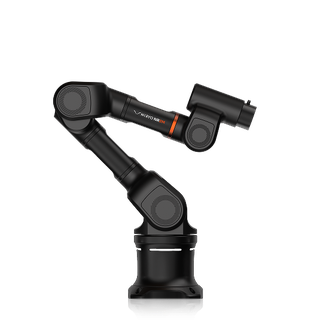

NR2 is Niryo's compact 6-axis industrial robotic arm for light industrial automation, part of its Nate (Niryo to Automate) platform and NR Series, with an open, AI-ready architecture. It is sized for lightweight parts - machine tending, component handling, quality inspection, packaging and assembly - without oversizing the robot. It carries 2 kg with plus or minus 0.1 mm pose repeatability (ISO 9283) and a maximum TCP speed of 3 m/s, on a base footprint of just 190 mm diameter. Two versions share that footprint: NR2 M with 800 mm reach and 17 kg robot weight, and NR2 L with up to 1,100 mm reach, up to 2 kg payload depending on reach, and 19 kg. It runs at 5 to 45 degrees C on 100-240 VAC, has Ethernet, USB and I/O interfaces, meets ISO 10218-1 and is CE certified. Each robot comes with the NC 1000 controller, designed for 24/7 operation and simplified connection to machines, sensors and safety devices, and is programmed with NiryoStudio for Nate. Niryo announced it as now available on 2 September 2026; it forms a complete ecosystem with Niryo's NA actuators, NPG grippers and smart machines.
FUNKTIONEN
- Compact 6-axis industrial robotic arm
- Payload 2 kg
- Reach 800 mm (NR2 M) or up to 1,100 mm (NR2 L)
- Repeatability +/-0.1 mm (ISO 9283)
- Max TCP speed 3 m/s
- 190 mm base footprint
- Robot weight 17 kg (M) / 19 kg (L)
- Operating temperature 5-45 C
- 100-240 VAC
- Ethernet / USB / I/O
- ISO 10218-1
- CE
- NC 1000 controller for 24/7 operation
- NiryoStudio for Nate
- AI-ready open architecture
- Launched September 2026
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 17 kg (NR2 M) / 19 kg (NR2 L) |
|---|---|
| Traglast | 2 kg |
| Reichweite | 1.1 m |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 17 kg (NR2 M) / 19 kg (NR2 L) |
|---|---|
| Traglast | 2 kg |
| Reichweite | 1.1 m |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
Bilder
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Niryo NR2?
NR2 is Niryo's compact 6-axis industrial robotic arm for light industrial automation, part of its Nate (Niryo to Automate) platform and NR Series, with an open, AI-ready architecture.
Who makes the Niryo NR2?
The Niryo NR2 is made by Niryo, a robotics company based in France.
How much does the Niryo NR2 cost?
Niryo has not publicly announced pricing for the Niryo NR2. You can enquire through RobotAIGeek for current pricing.
What is the Niryo NR2 used for?
The Niryo NR2 is designed for montage, maschinenbeschickung, verpacken, and pick-and-place. It is used in lager & logistik and fertigung settings.
What is the payload capacity of the Niryo NR2?
The Niryo NR2 has a payload capacity of 2 kg and a reach of 1.1 m.
How much does the Niryo NR2 weigh?
The Niryo NR2 weighs 17 kg.
How many degrees of freedom does the Niryo NR2 have?
The Niryo NR2 has 6 degrees of freedom.
When was the Niryo NR2 released?
The Niryo NR2 was released in 2026.
