Neuromeka D3

Neuromeka
Delta-RobotSouth KoreaSouth KoreaVeröffentlicht
Neuromeka D3
Vergleichen
Quellen:
en.neuromeka.com
Branchen:
ElektronikLager & LogistikFertigung
Anwendungen:
VerpackenPick-and-PlaceSortieren
Preis:
Nicht angekündigt

BESCHREIBUNG

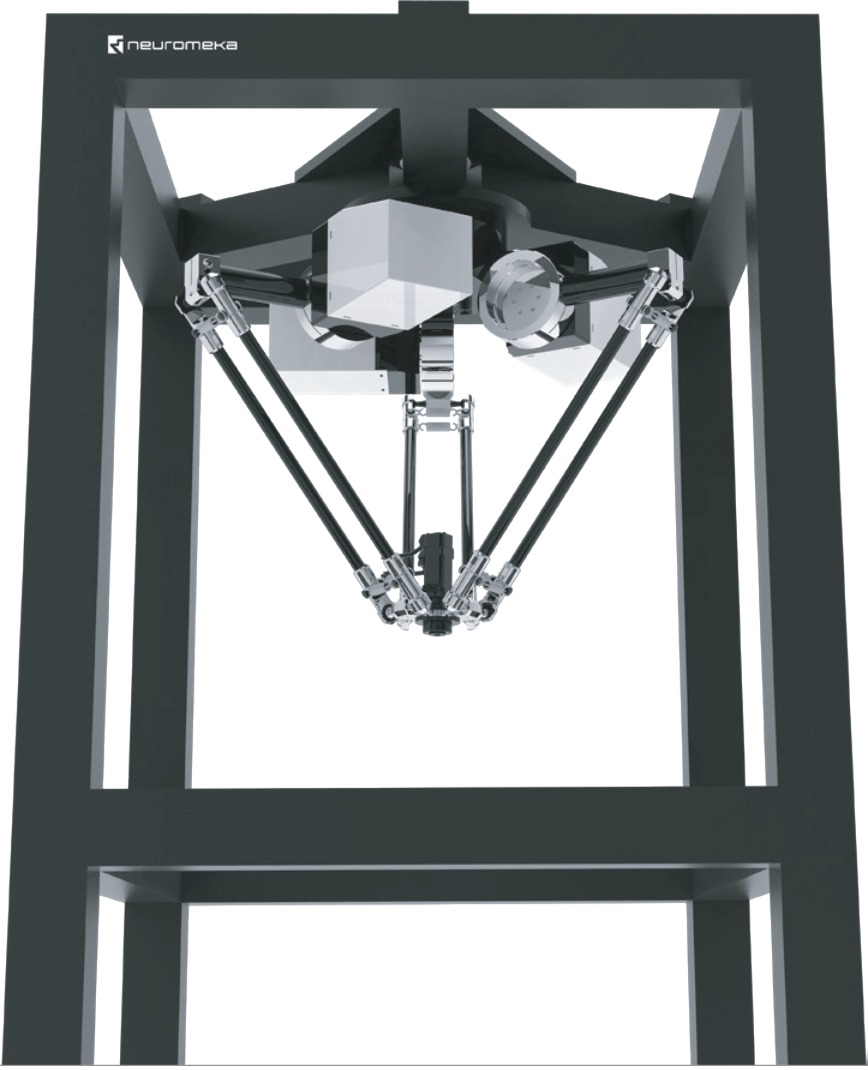

The D3 is the smaller of Neuromeka's two delta robots — the spider-like arrangement used wherever things have to be picked off a moving belt quickly. Four axes, 3 kg of payload, and a working area 800 mm across and 300 mm deep with the wrist turning plus or minus 180 degrees. Speed is the point of a delta, and here it is quoted honestly against load: on the standard 25 x 305 x 25 mm path the D3 completes a cycle in 0.30 s empty, 0.45 s with 1 kg, 0.51 s with 2 kg and 0.55 s at its full 3 kg. It repeats to 0.1 mm, weighs 60 kg and runs on AC servo motors with absolute encoders. Neuromeka builds the frame around a custom vibration-suppression design, which is what keeps a fast delta accurate, and sells it as part of a line: grippers, conveyors, vision and PLC integration.

FUNKTIONEN

  • 4-axis high-speed delta robot
  • Payload 3 kg, weight 60 kg
  • Working area 800 mm across, 300 mm deep
  • roll axis plus or minus 180 degrees
  • Repeatability 0.1 mm
  • Cycle time on a 25 x 305 x 25 mm path: 0.30 s empty, 0.45 s at 1 kg, 0.51 s at 2 kg, 0.55 s at 3 kg
  • AC servo motors with absolute encoders
  • Custom vibration-suppression frame design
  • Sold with gripper, conveyor, vision and PLC integration
  • Korean Good Design award
  • KCs certified

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht60 kg
Traglast3 kg
Reichweite800 mm
Wiederholgenauigkeit±0.1 mm
Mobilität
BewegungsartStationär
Freiheitsgrade4
EinsatzumgebungProduction and packaging lines
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the Neuromeka D3?

The D3 is the smaller of Neuromeka's two delta robots — the spider-like arrangement used wherever things have to be picked off a moving belt quickly. Four axes, 3 kg of payload, and a working area 800 mm across and 300 mm deep with the wrist turning plus or minus 180 degrees.

Who makes the Neuromeka D3?

The Neuromeka D3 is made by Neuromeka, a robotics company based in South Korea.

How much does the Neuromeka D3 cost?

Neuromeka has not publicly announced pricing for the Neuromeka D3. You can enquire through RobotAIGeek for current pricing.

What is the Neuromeka D3 used for?

The Neuromeka D3 is designed for verpacken, pick-and-place, and sortieren. It is used in elektronik, lager & logistik, and fertigung settings.

What is the payload capacity of the Neuromeka D3?

The Neuromeka D3 has a payload capacity of 3 kg and a reach of 800 mm.

How much does the Neuromeka D3 weigh?

The Neuromeka D3 weighs 60 kg.

How many degrees of freedom does the Neuromeka D3 have?

The Neuromeka D3 has 4 degrees of freedom.
