BESCHREIBUNG

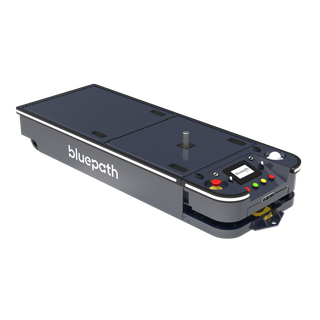

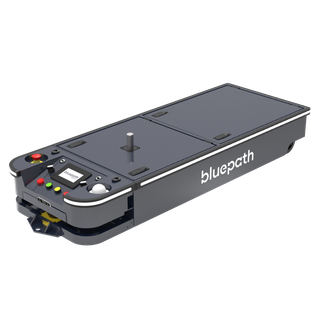

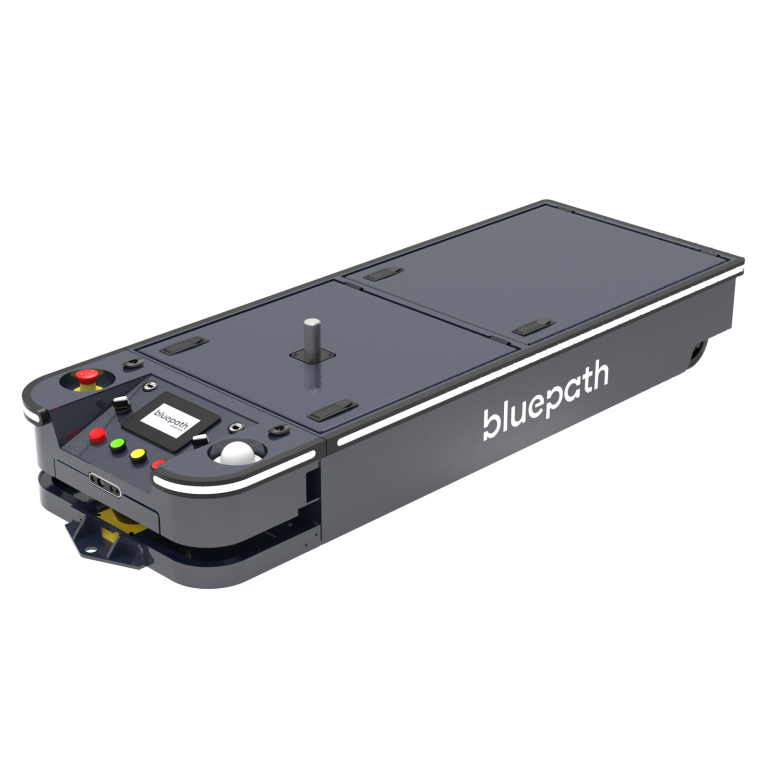

Mouse/Tunnel Low is a 230 mm-tall autonomous mobile robot from Bluepath Robotics of Istanbul, Turkey, built to drive beneath carts and racks that a conventional AMR cannot fit under. At 1,400 x 500 x 230 mm it tows up to 700 kg using a pinned tow system, engaging a cart from below and moving it at up to 1.5 m/s. Natural SLAM guidance holds +/-10 mm precision under fixed-height structures, and 3D object detection keeps it safe in high-density warehouse traffic. It is aimed at repetitive under-rack material flows on assembly and logistics lines. Source: https://bluepathrobotics.com/product/mouse-tunnel/
FUNKTIONEN
- Tows up to 700 kg using a pinned tow system engaged from beneath the cart
- 230 mm tall, 1,400 x 500 mm footprint — drives under carts and racking
- Differential drive at up to 1.5 m/s with +/-10 mm precision under fixed-height structures
- Natural SLAM navigation — no floor magnets, reflectors or line tape required
- 3D object detection, dynamic map update and safe remote on/off
- VDA 5050 compatible
- scheduled from the Bluepath All-in-One Fleet Manager
- WMS/ERP integration and PLC/IoT interaction with smart charging scheduling
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 450 kg |
|---|---|
| Abmessungen | L 1.4 m × W 500 mm × H 230 mm |
| Traglast | 700 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 5.4 km/h |
| Einsatzumgebung | Indoor factory and warehouse floors shared with people and vehicles |
| Sensorik & Rechenleistung | |
| Software / KI | Bluepath Robotic Software System with All-in-One Fleet Management; automated task management with manual override, shift management |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 450 kg |
|---|---|
| Abmessungen | L 1.4 m × W 500 mm × H 230 mm |
| Traglast | 700 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 5.4 km/h |
| Einsatzumgebung | Indoor factory and warehouse floors shared with people and vehicles |
| Sensorik & Rechenleistung | |
| Software / KI | Bluepath Robotic Software System with All-in-One Fleet Management; automated task management with manual override, shift management |
Bilder
martti
martti
marttiBildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Mouse/Tunnel Low?
Mouse/Tunnel Low is a 230 mm-tall autonomous mobile robot from Bluepath Robotics of Istanbul, Turkey, built to drive beneath carts and racks that a conventional AMR cannot fit under. At 1,400 x 500 x 230 mm it tows up to 700 kg using a pinned tow system, engaging a cart from below and moving it at up to 1.5 m/s.
Who makes the Mouse/Tunnel Low?
The Mouse/Tunnel Low is made by Bluepath Robotics, a robotics company based in Turkey.
How much does the Mouse/Tunnel Low cost?
Bluepath Robotics has not publicly announced pricing for the Mouse/Tunnel Low. You can enquire through RobotAIGeek for current pricing.
What is the Mouse/Tunnel Low used for?
The Mouse/Tunnel Low is designed for transport. It is used in lager & logistik and fertigung settings.
What is the payload capacity of the Mouse/Tunnel Low?
The Mouse/Tunnel Low has a payload capacity of 700 kg.
How much does the Mouse/Tunnel Low weigh?
The Mouse/Tunnel Low weighs 450 kg.
How fast is the Mouse/Tunnel Low?
The Mouse/Tunnel Low can move at speeds of up to 5.4 km/h.
