KW1300M-3200

Shandong Tengyang Intelligent Equipment
Industrial-RobotChinaChinaVeröffentlicht
KW1300M-3200
Vergleichen
Quellen:
sdtengyang.com
Branchen:
Lager & LogistikFertigung
Anwendungen:
IntralogistikMaterialhandhabungPalettieren
Preis:
Nicht angekündigt

BESCHREIBUNG

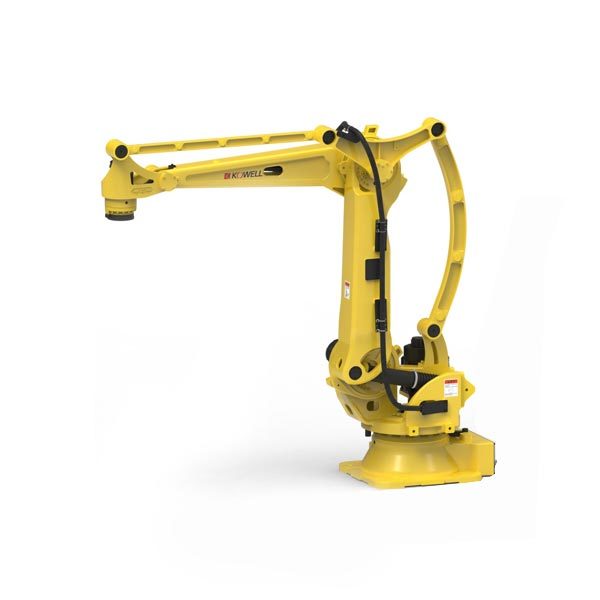

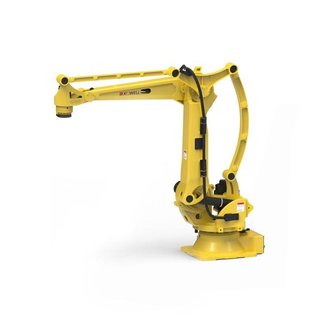

KW1300M-3200 is Shandong Tengyang's large-load four-axis palletizing robot. The wrist carries up to 300 kg with a 3200 mm working radius, built around a high-rigidity vertical-joint structure for handling, palletizing, and loading/unloading.

FUNKTIONEN

  • 4-DOF vertical-joint palletizing robot (Kowell KW-M). Max transportable weight 300 kg
  • reach 3200 mm
  • position repeatability ±0.2 mm
  • body weight 1200 kg
  • protection equivalent to IP54
  • ground mount
  • 12 kVA
  • ambient 0–45°C / 20–80% RH (no condensation). High-rigidity structure with high-speed intelligent palletizing process package
  • soft PLC and bus interfaces
  • collision detection. Target industries: auto parts, photovoltaic, food & beverage, building materials, logistics/warehousing.

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht1200 kg
Traglast300 kg
Reichweite3.2 m
Wiederholgenauigkeit±0.2 mm
Mobilität
BewegungsartStationär
Freiheitsgrade4
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the KW1300M-3200?

KW1300M-3200 is Shandong Tengyang's large-load four-axis palletizing robot. The wrist carries up to 300 kg with a 3200 mm working radius, built around a high-rigidity vertical-joint structure for handling, palletizing, and loading/unloading.

Who makes the KW1300M-3200?

The KW1300M-3200 is made by Shandong Tengyang Intelligent Equipment, a robotics company based in China.

How much does the KW1300M-3200 cost?

Shandong Tengyang Intelligent Equipment has not publicly announced pricing for the KW1300M-3200. You can enquire through RobotAIGeek for current pricing.

What is the KW1300M-3200 used for?

The KW1300M-3200 is designed for intralogistik, materialhandhabung, and palettieren. It is used in lager & logistik and fertigung settings.

What is the payload capacity of the KW1300M-3200?

The KW1300M-3200 has a payload capacity of 300 kg and a reach of 3.2 m.

How much does the KW1300M-3200 weigh?

The KW1300M-3200 weighs 1,200 kg.

How many degrees of freedom does the KW1300M-3200 have?

The KW1300M-3200 has 4 degrees of freedom.
