KW1120M-2400

Shandong Tengyang Intelligent Equipment
Industrial-RobotChinaChinaVeröffentlicht
KW1120M-2400
Vergleichen
Quellen:
sdtengyang.com
Branchen:
Lager & LogistikFertigung
Anwendungen:
IntralogistikMaterialhandhabungPalettieren
Preis:
Nicht angekündigt

BESCHREIBUNG

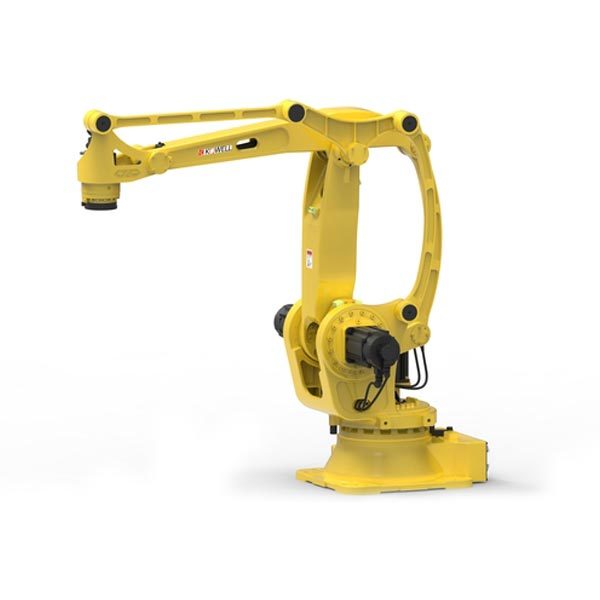

KW1120M-2400 is Tengyang's medium-load four-axis palletizing robot with a 120 kg wrist payload and 2400 mm working radius for handling, palletizing, and load/unload cells.

FUNKTIONEN

  • 4-DOF vertical-joint palletizing robot (Kowell KW-M). Max transportable weight 120 kg
  • reach 2400 mm
  • repeatability ±0.2 mm
  • body weight 1020 kg
  • protection equivalent to IP54
  • ground mount
  • 11 kVA. Process packages, soft PLC/bus interfaces, collision detection.

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht1020 kg
Traglast120 kg
Reichweite2.4 m
Wiederholgenauigkeit±0.2 mm
Mobilität
BewegungsartStationär
Freiheitsgrade4
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the KW1120M-2400?

KW1120M-2400 is Tengyang's medium-load four-axis palletizing robot with a 120 kg wrist payload and 2400 mm working radius for handling, palletizing, and load/unload cells.

Who makes the KW1120M-2400?

The KW1120M-2400 is made by Shandong Tengyang Intelligent Equipment, a robotics company based in China.

How much does the KW1120M-2400 cost?

Shandong Tengyang Intelligent Equipment has not publicly announced pricing for the KW1120M-2400. You can enquire through RobotAIGeek for current pricing.

What is the KW1120M-2400 used for?

The KW1120M-2400 is designed for intralogistik, materialhandhabung, and palettieren. It is used in lager & logistik and fertigung settings.

What is the payload capacity of the KW1120M-2400?

The KW1120M-2400 has a payload capacity of 120 kg and a reach of 2.4 m.

How much does the KW1120M-2400 weigh?

The KW1120M-2400 weighs 1,020 kg.

How many degrees of freedom does the KW1120M-2400 have?

The KW1120M-2400 has 4 degrees of freedom.
