HKXZ-2101 Assistive Walking Robot
BESCHREIBUNG

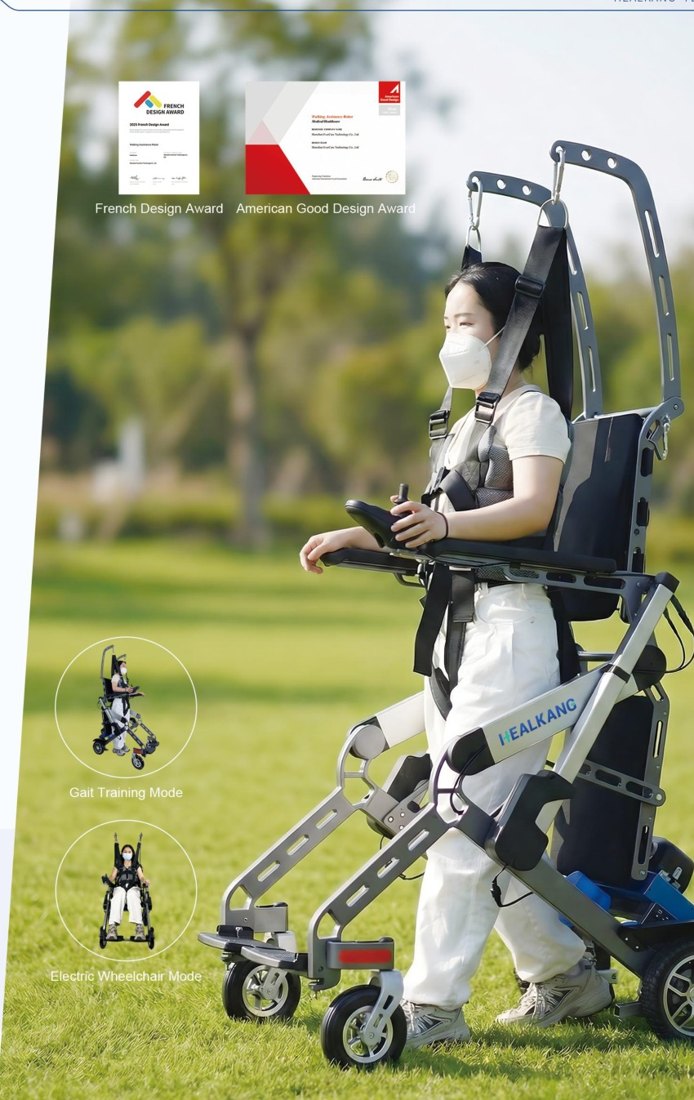

The HKXZ-2101 is Healkang's assistive walking robot for people with lower-limb disability, including those recovering from stroke, spinal cord injury or Guillain-Barre syndrome. Healkang frames it as "walking freedom": it lets a user move from sitting to standing for weight-bearing training without a therapist present, so gait training is no longer tied to a clinic slot. It toggles between two modes - Gait Training and Electric Wheelchair - so the same machine both rehabilitates and transports. Two 24 V 200 W motors drive it at up to 6 km/h, with a joystick, multi-speed adjustment, an electromagnetic brake and anti-fall protection. The aluminium alloy frame is built with anti-tip geometry, and it carries up to 100 kg. In sitting mode it clears 40 mm obstacles and 100 mm trenches. A 10.4 Ah lithium battery powers it; GPS, a trailer, remote control and lighting/charging ports are available. The design won a French Design Award and an American Good Design Award.
FUNKTIONEN
- Switches between Gait Training and Electric Wheelchair modes
- Sit-to-stand transition for weight-bearing gait training
- Two 24 V 200 W drive motors, up to 6 km/h
- Intelligent joystick control with multi-speed adjustment
- Intelligent electromagnetic brake and anti-fall protection
- Anti-tip aluminium alloy frame
- 100 kg maximum payload
- Clears 40 mm obstacles and 100 mm trenches in sitting mode
- 10.4 Ah lithium battery
- optional GPS, trailer and remote control
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 47 kg |
|---|---|
| Abmessungen | L 1.05 m × W 690 mm × H 2 m |
| Traglast | 100 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 6 km/h |
| Manipulation | Niedrig |
| Einsatzumgebung | Indoor and outdoor use; 40 mm obstacle clearance, 100 mm trench width in sitting mode. |
| Aktoren | Two 24 V 200 W DC drive motors |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 47 kg |
|---|---|
| Abmessungen | L 1.05 m × W 690 mm × H 2 m |
| Traglast | 100 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 6 km/h |
| Manipulation | Niedrig |
| Einsatzumgebung | Indoor and outdoor use; 40 mm obstacle clearance, 100 mm trench width in sitting mode. |
| Aktoren | Two 24 V 200 W DC drive motors |
Bilder
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the HKXZ-2101 Assistive Walking Robot?
The HKXZ-2101 is Healkang's assistive walking robot for people with lower-limb disability, including those recovering from stroke, spinal cord injury or Guillain-Barre syndrome.
Who makes the HKXZ-2101 Assistive Walking Robot?
The HKXZ-2101 Assistive Walking Robot is made by Healkang (Shenzhen Evercare Sci&Tec), a robotics company based in China.
How much does the HKXZ-2101 Assistive Walking Robot cost?
Healkang (Shenzhen Evercare Sci&Tec) has not publicly announced pricing for the HKXZ-2101 Assistive Walking Robot. You can enquire through RobotAIGeek for current pricing.
What is the HKXZ-2101 Assistive Walking Robot used for?
The HKXZ-2101 Assistive Walking Robot is designed for assistenz, medizinische assistenz, rehabilitation, and transport. It is used in verbraucher and gesundheitswesen settings.
What is the payload capacity of the HKXZ-2101 Assistive Walking Robot?
The HKXZ-2101 Assistive Walking Robot has a payload capacity of 100 kg.
How much does the HKXZ-2101 Assistive Walking Robot weigh?
The HKXZ-2101 Assistive Walking Robot weighs 47 kg.
How fast is the HKXZ-2101 Assistive Walking Robot?
The HKXZ-2101 Assistive Walking Robot can move at speeds of up to 6 km/h.
