BESCHREIBUNG

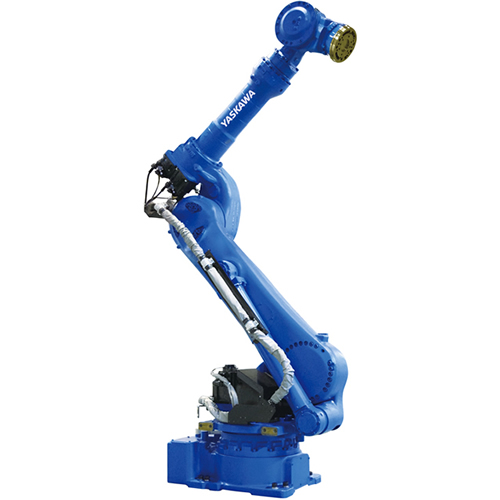

GP225 ist ein Industrial-Robot von YASKAWA Electric. Er ist für Montage, Maschinenbeschickung, Materialhandhabung ausgelegt. Eckdaten: 1080 kg, 225 kg Traglast, 2702 mm Reichweite, 6 Freiheitsgrade.
Yaskawa Motoman GP225 is a GP Series industrial robot with 225 kg payload and 2702 mm horizontal reach (1080 kg mass, ±0.05 mm repeatability).
FUNKTIONEN
- Payload 225 kg
- Horizontal reach 2702 mm
- Vertical reach 3393 mm
- Mass 1080 kg
- Repeatability ±0.05 mm
- 6 controlled axes
- Applications: Die Cast
- Machine Tending
- Material Removal
- Material Cutting
- Trimming
- Material Handling
- Part Transfer
- Press Tending
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 1080 kg |
|---|---|
| Traglast | 225 kg |
| Reichweite | 2.7 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 1080 kg |
|---|---|
| Traglast | 225 kg |
| Reichweite | 2.7 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
Bilder
martti
Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the GP225?
Yaskawa Motoman GP225 is a GP Series industrial robot with 225 kg payload and 2702 mm horizontal reach (1080 kg mass, ±0.05 mm repeatability).
Who makes the GP225?
The GP225 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the GP225 cost?
YASKAWA Electric has not publicly announced pricing for the GP225. You can enquire through RobotAIGeek for current pricing.
What is the GP225 used for?
The GP225 is designed for montage, maschinenbeschickung, and materialhandhabung. It is used in automobilindustrie and fertigung settings.
What is the payload capacity of the GP225?
The GP225 has a payload capacity of 225 kg and a reach of 2.7 m.
How much does the GP225 weigh?
The GP225 weighs 1,080 kg.
How many degrees of freedom does the GP225 have?
The GP225 has 6 degrees of freedom.
