BESCHREIBUNG

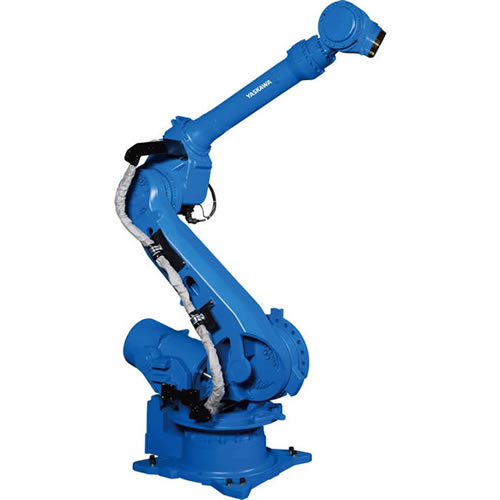

GP215 ist ein Industrial-Robot von YASKAWA Electric. Er ist für Montage, Maschinenbeschickung, Materialhandhabung ausgelegt. Eckdaten: 1340 kg, 215 kg Traglast, 2912 mm Reichweite, 6 Freiheitsgrade.
Yaskawa Motoman GP215 is a GP Series industrial robot with 215 kg payload and 2912 mm horizontal reach (1340 kg mass, ±0.05 mm repeatability).
FUNKTIONEN
- Payload 215 kg
- Horizontal reach 2912 mm
- Vertical reach 3894 mm
- Mass 1340 kg
- Repeatability ±0.05 mm
- 6 controlled axes
- Applications: Die Cast
- Machine Tending
- Material Handling
- Part Transfer
- Press Tending
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 1340 kg |
|---|---|
| Traglast | 215 kg |
| Reichweite | 2.91 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 1340 kg |
|---|---|
| Traglast | 215 kg |
| Reichweite | 2.91 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
Bilder
martti
Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the GP215?
Yaskawa Motoman GP215 is a GP Series industrial robot with 215 kg payload and 2912 mm horizontal reach (1340 kg mass, ±0.05 mm repeatability).
Who makes the GP215?
The GP215 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the GP215 cost?
YASKAWA Electric has not publicly announced pricing for the GP215. You can enquire through RobotAIGeek for current pricing.
What is the GP215 used for?
The GP215 is designed for montage, maschinenbeschickung, and materialhandhabung. It is used in automobilindustrie and fertigung settings.
What is the payload capacity of the GP215?
The GP215 has a payload capacity of 215 kg and a reach of 2.91 m.
How much does the GP215 weigh?
The GP215 weighs 1,340 kg.
How many degrees of freedom does the GP215 have?
The GP215 has 6 degrees of freedom.
