CS530H

Elite Robots
Collaborative-RobotChinaChinaVeröffentlicht
CS530H
Vergleichen
Quellen:
eliterobots.com
Branchen:
AutomobilindustrieElektronikEnergieLager & LogistikFertigungEinzelhandel
Anwendungen:
MontageDosierenMaschinenbeschickungMaterialhandhabungPalettierenPick-and-PlaceSchweißenInspektionTransport
Preis:
Nicht angekündigt
Veröffentlicht:
2023

BESCHREIBUNG

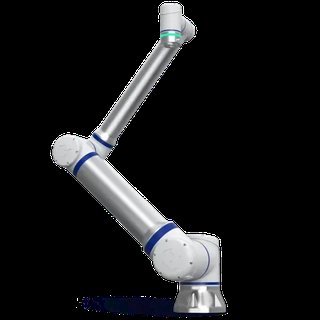

Heavy-payload cobot arm rated for 30 kg with a 1522 mm reach and ±0.1 mm repeatability, built for palletizing and pick-and-place in logistics.

FUNKTIONEN

  • 30 kg payload with a 1522 mm working radius, ±0.1 mm repeatability and 4.0 m/s TCP speed. 31 safety functions (PL d Cat. 3 for SF01-SF30, PL b Cat. 1 for SF31)
  • certified to UL, CE and KCs with ISO 13849, ISO 10218 and ISO/TS 15066
  • ISO 14644 cleanroom class 5, RoHS and SEMI-S2 rated
  • graphical programming with an expandable UI supporting custom plugins and application wizards
  • multi-protocol compatibility with PNP/NPN switch mode
  • high ingress protection.

TECHNISCHE DATEN

Verifiziert
Physisch
Traglast30 kg
Reichweite1.52 m
Wiederholgenauigkeit±0.1 mm
Mobilität
BewegungsartStationär
ManipulationHoch
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the CS530H?

Heavy-payload cobot arm rated for 30 kg with a 1522 mm reach and ±0.1 mm repeatability, built for palletizing and pick-and-place in logistics.

Who makes the CS530H?

The CS530H is made by Elite Robots, a robotics company based in China.

How much does the CS530H cost?

Elite Robots has not publicly announced pricing for the CS530H. You can enquire through RobotAIGeek for current pricing.

What is the CS530H used for?

The CS530H is designed for montage, dosieren, maschinenbeschickung, and materialhandhabung. It is used in automobilindustrie, elektronik, energie, and lager & logistik settings.

What is the payload capacity of the CS530H?

The CS530H has a payload capacity of 30 kg and a reach of 1.52 m.

When was the CS530H released?

The CS530H was released in 2023.
