BESCHREIBUNG

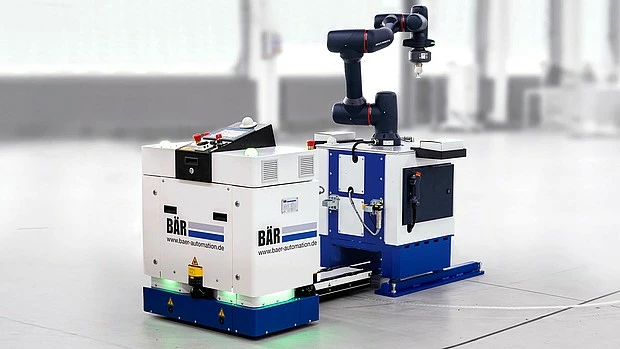

The ConTrax Module One is a custom-made mobile manipulator developed in partnership with Idealworks and BÄR Automation. It combines robotic arms with automated guided vehicles (AGVs) to maximize their potential in industrial environments.
FUNKTIONEN
- Mobile manipulator: a BAR Automation ConTrax mobile platform carrying an Agile Robots Yu 5 Industrial cobot
- 500 kg transport payload (the Yu 5 arm handles up to 5 kg)
- Up to 1.2 m/s travel speed
- SLAM free navigation with optional optical fine positioning
- 48 V 42 Ah LiFePO battery with inductive charging for cycle-time-parallel, 24/7 operation
- Decoupled design: the AGV sets the arm on a supply station and returns to transport tasks
- Co-developed with BAR Automation and Idealworks for intralogistics
TECHNISCHE DATEN
| Physisch | |
| Traglast | 500 kg |
|---|---|
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 4.32 km/h |
| Manipulation | Mittel |
| Energie | |
| Akkulaufzeit | 2.02 kWh |
TECHNISCHE DATEN
| Physisch | |
| Traglast | 500 kg |
|---|---|
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 4.32 km/h |
| Manipulation | Mittel |
| Energie | |
| Akkulaufzeit | 2.02 kWh |
Bilder
martti
Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the ConTrax Module One?
The ConTrax Module One is a custom-made mobile manipulator developed in partnership with Idealworks and BÄR Automation. It combines robotic arms with automated guided vehicles (AGVs) to maximize their potential in industrial environments.
Who makes the ConTrax Module One?
The ConTrax Module One is made by Agile Robots SE, a robotics company based in Germany.
How much does the ConTrax Module One cost?
Agile Robots SE has not publicly announced pricing for the ConTrax Module One. You can enquire through RobotAIGeek for current pricing.
What is the ConTrax Module One used for?
The ConTrax Module One is designed for intralogistik. It is used in fertigung settings.
What is the payload capacity of the ConTrax Module One?
The ConTrax Module One has a payload capacity of 500 kg.
How fast is the ConTrax Module One?
The ConTrax Module One can move at speeds of up to 4.32 km/h.
