Cobot Palletizer KW1030D-1800
BESCHREIBUNG

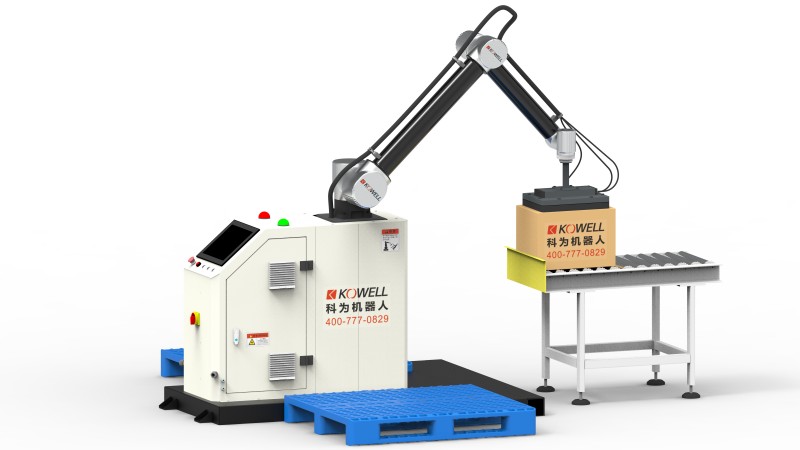

This cobot palletizer is a collaborative palletizing workstation with a maximum gripping load of 30KG and a palletizing height of up to 2.1 meters. Widely applicable: widely used in industries such as food, medicine, 3C, daily chemical, printing, etc; Safe and stable: Industrial grade force control sensors with high reliability and safety; Support 10 level collision detection; When a single fault occurs, the safety function will not be lost; Flexible deployment: Integrated design, lightweight and flexible, small footprint; Deploying new tasks on workstations is simple, fast, and efficient;
FUNKTIONEN
- Vertically articulated six-axis arm rated 30 kg payload with a 1,800 mm working radius.
- Position repetition accuracy of ±0.1 mm
- body weight 400 kg.
- Power capacity 2.0 kVA
- protection rated equivalent to IP54.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- This cobot palletizer is a collaborative palletizing workstation with a maximum gripping load of 30KG and a palletizing height of up to 2.1 meters. Widely applicable: widely used in industries such as food, medicine, 3C, daily chemical, printing, etc
- Safe and stable: Industrial grade force...

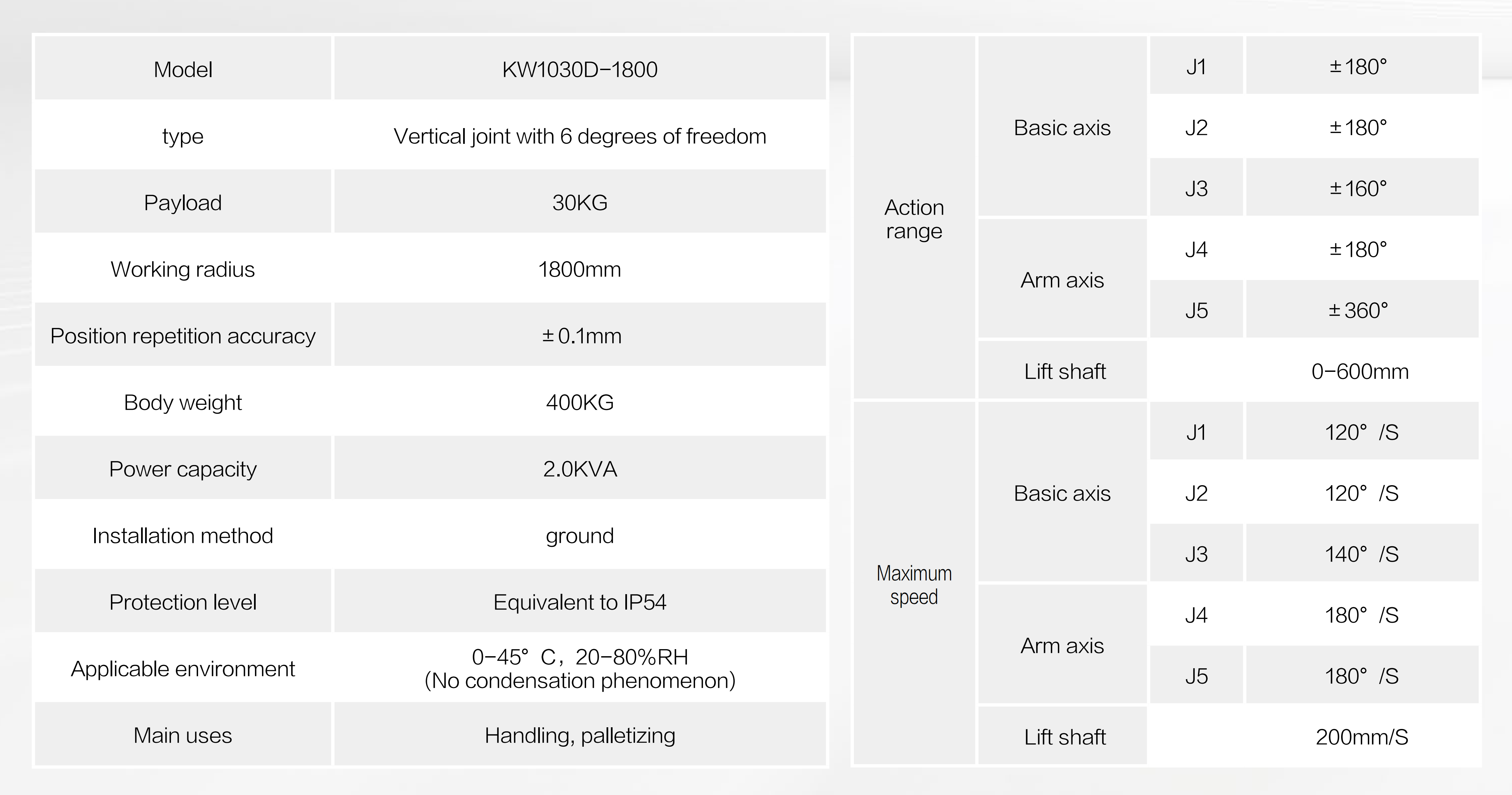

TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 400 kg |
|---|---|
| Traglast | 30 kg |
| Reichweite | 1.8 m |
| Wiederholgenauigkeit | ±0.1 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Einsatzumgebung | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 400 kg |
|---|---|
| Traglast | 30 kg |
| Reichweite | 1.8 m |
| Wiederholgenauigkeit | ±0.1 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Einsatzumgebung | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
Bilder
martti
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Cobot Palletizer KW1030D-1800?
This cobot palletizer is a collaborative palletizing workstation with a maximum gripping load of 30KG and a palletizing height of up to 2.1 meters.
Who makes the Cobot Palletizer KW1030D-1800?
The Cobot Palletizer KW1030D-1800 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Cobot Palletizer KW1030D-1800 cost?
Shandong Kewei Robot has not publicly announced pricing for the Cobot Palletizer KW1030D-1800. You can enquire through RobotAIGeek for current pricing.
What is the Cobot Palletizer KW1030D-1800 used for?
The Cobot Palletizer KW1030D-1800 is designed for materialhandhabung and palettieren. It is used in lager & logistik and fertigung settings.
What is the payload capacity of the Cobot Palletizer KW1030D-1800?
The Cobot Palletizer KW1030D-1800 has a payload capacity of 30 kg and a reach of 1.8 m.
How much does the Cobot Palletizer KW1030D-1800 weigh?
The Cobot Palletizer KW1030D-1800 weighs 400 kg.
How many degrees of freedom does the Cobot Palletizer KW1030D-1800 have?
The Cobot Palletizer KW1030D-1800 has 6 degrees of freedom.
