BESCHREIBUNG

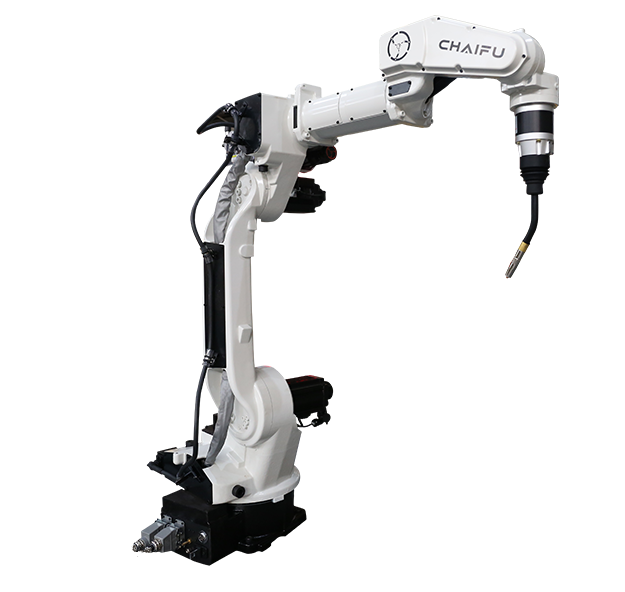

The SF6-C2080P is a 6 kg arc welding robot in CHAIFU's ARC series, a vertically articulated industrial robot with 6 axes and a maximum reach of 2080 mm. Repeatability is ±0.05mm and it is driven by ac servo motors, with IP 65 protection. The hollow-wrist design gives very short motion cycles and high path precision, and the LIKEPRECISION RV reducer gives repeatability of 0.05 mm. CHAIFU builds the ARC series in Shanghai with its own LIKEPRECISION RV precision gearboxes and servo motors, and positions it for arc welding, cutting, handling, machine loading and unloading and picking.
FUNKTIONEN
- ARC series arc welding robot
- Payload 6 kg
- Maximum reach 2080 mm
- 6 axes, vertically articulated
- Repeatability ±0.05mm
- Drive: AC Servo Motor
- Protection IP 65
- LIKEPRECISION RV precision gearbox and CHAIFU servo motors
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Traglast | 6 kg |
|---|---|
| Reichweite | 2.08 m |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
| Einsatzumgebung | Industrial production environments; IP 65. |
| Aktoren | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Traglast | 6 kg |
|---|---|
| Reichweite | 2.08 m |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
| Einsatzumgebung | Industrial production environments; IP 65. |
| Aktoren | AC Servo Motor drive with LIKEPRECISION RV precision gearboxes |
Bilder
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the CHAIFU SF6-C2080P?
The SF6-C2080P is a 6 kg arc welding robot in CHAIFU's ARC series, a vertically articulated industrial robot with 6 axes and a maximum reach of 2080 mm. Repeatability is ±0.05mm and it is driven by ac servo motors, with IP 65 protection.
Who makes the CHAIFU SF6-C2080P?
The CHAIFU SF6-C2080P is made by Chaifu Robot, a robotics company based in China.
How much does the CHAIFU SF6-C2080P cost?
Chaifu Robot has not publicly announced pricing for the CHAIFU SF6-C2080P. You can enquire through RobotAIGeek for current pricing.
What is the CHAIFU SF6-C2080P used for?
The CHAIFU SF6-C2080P is designed for materialhandhabung and schweißen. It is used in automobilindustrie and fertigung settings.
What is the payload capacity of the CHAIFU SF6-C2080P?
The CHAIFU SF6-C2080P has a payload capacity of 6 kg and a reach of 2.08 m.
How many degrees of freedom does the CHAIFU SF6-C2080P have?
The CHAIFU SF6-C2080P has 6 degrees of freedom.
