Black Panther X

MirrorMe Technology
Educational-RobotsChinaChinaVeröffentlicht
Black Panther X
Vergleichen
Quellen:
mirrormetech.com
Branchen:
ForschungBildung
Anwendungen:
ForschungBildung
Preis:
Nicht angekündigt

BESCHREIBUNG

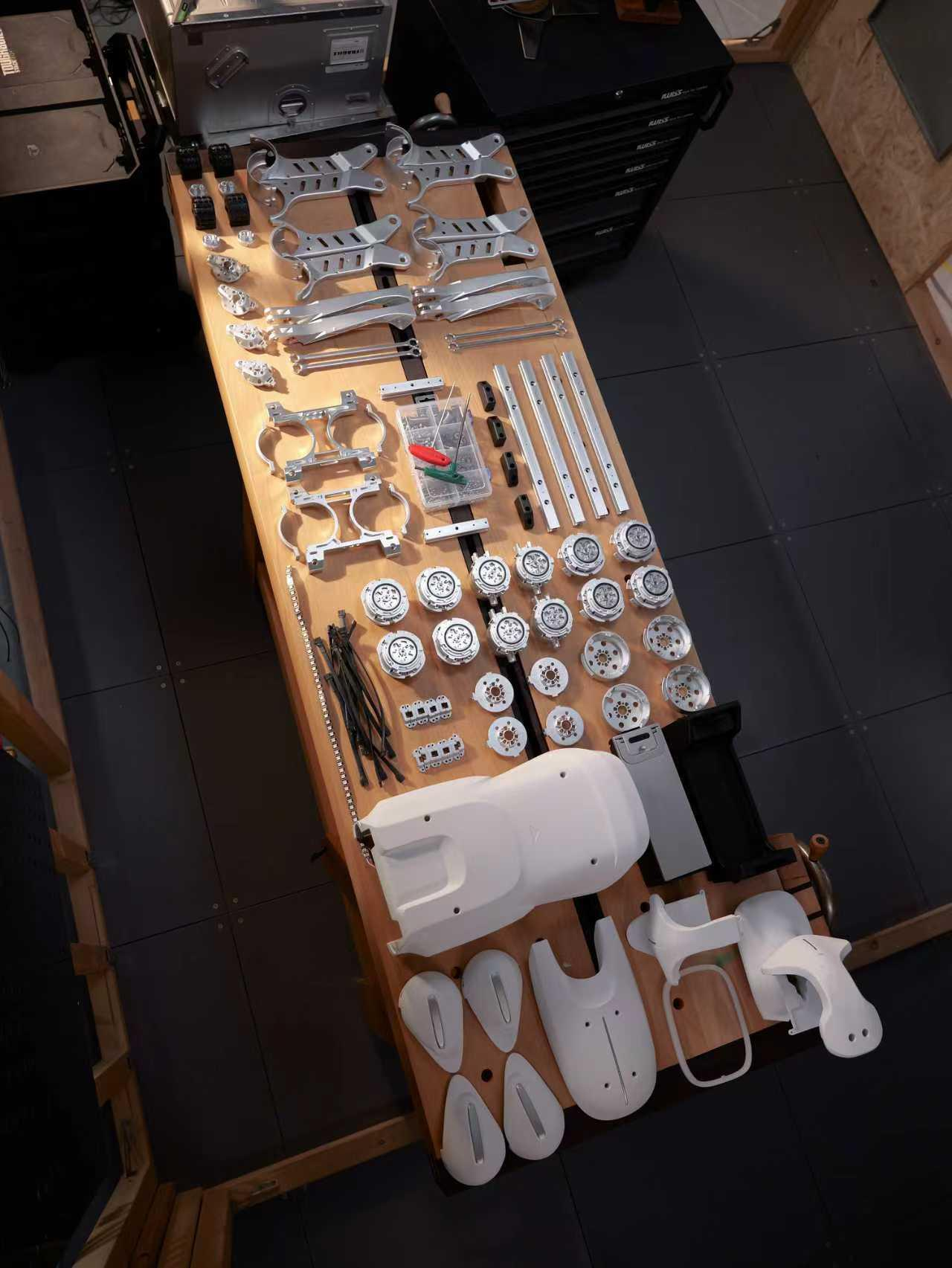

Black Panther X is the range's modular kit, and MirrorMe is candid that the assembly is the product: over 500 industrial-grade components that the buyer builds into a working quadruped. It inherits technology from the company's Guinness record holders, so what gets assembled is not a toy — 0 to 4 m/s, roughly 8 kg maximum load, and a 1:1 industrial-grade structure that takes real modular modification. It stands 67.5 x 35.6 x 42.5 cm, weighs 15.1 kg with battery, and runs 1.5 hours on 200 Wh at 29.6 V. Twelve joints deliver about 33 N·m each, moving through -87 to 53 degrees laterally, -149 to 45 at the hip and 21 to 147 at the knee. The body is aluminium alloy. Two audiences are served by the same hardware. For makers there is an open SDK for motion control, vision and AI interaction, support for 3D-printed shells, graphical programming, automatic joint calibration and OTA updates. For schools there is a 32-session STEM curriculum running from mechanical assembly through gait planning to NLP interaction and competition.

FUNKTIONEN

  • Over 500 industrial-grade components, assembled by the user
  • Standing dimensions 67.5 x 35.6 x 42.5 cm
  • weight 15.1 kg including battery
  • Maximum load approximately 8 kg
  • Speed 0 to 4 m/s
  • maximum climbing angle 30 degrees
  • 12 joints at approximately 33 N·m maximum joint torque
  • Joint ranges: lateral -87 to 53 degrees, hip -149 to 45 degrees, knee 21 to 147 degrees
  • 200 Wh at 29.6 V
  • operating time 1.5 hours
  • Aluminium alloy construction
  • Open SDK for motion control, vision and AI interaction
  • Supports 3D-printed shells and custom physical modification
  • Graphical programming, automatic joint calibration, OTA firmware updates, app integration
  • 32-session K12 STEM curriculum from assembly to competition

TECHNISCHE DATEN

Physisch
Gewicht15.1 kg
AbmessungenH 425 mm
Traglast8 kg
Mobilität
BewegungsartVierbeiner
Geschwindigkeit14.4 km/h
ManipulationNiedrig
EinsatzumgebungIndoor and outdoor use for education, maker projects and competition
Aktoren12-joint quadruped, ~33 N·m per joint, aluminium alloy, user-assembled from 500+ parts
Energie
Akkulaufzeit1.5 hours
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the Black Panther X?

Black Panther X is the range's modular kit, and MirrorMe is candid that the assembly is the product: over 500 industrial-grade components that the buyer builds into a working quadruped.

Who makes the Black Panther X?

The Black Panther X is made by MirrorMe Technology, a robotics company based in China.

How much does the Black Panther X cost?

MirrorMe Technology has not publicly announced pricing for the Black Panther X. You can enquire through RobotAIGeek for current pricing.

What is the Black Panther X used for?

The Black Panther X is designed for forschung and bildung. It is used in forschung and bildung settings.

What is the payload capacity of the Black Panther X?

The Black Panther X has a payload capacity of 8 kg.

How much does the Black Panther X weigh?

The Black Panther X weighs 15.1 kg.

How fast is the Black Panther X?

The Black Panther X can move at speeds of up to 14.4 km/h.

What is the battery life of the Black Panther X?

The Black Panther X runs for 1.5 hours on a charge.
