BENS120-2400

Benson Intelligent Equipment (Shandong) Co., Ltd.
Industrial-RobotChinaChinaVeröffentlicht
BENS120-2400
Vergleichen
Quellen:
bremetzmachinery.com
Branchen:
Lager & LogistikFertigung
Anwendungen:
MaterialhandhabungVerpackenPalettieren
Preis:
Nicht angekündigt

BESCHREIBUNG

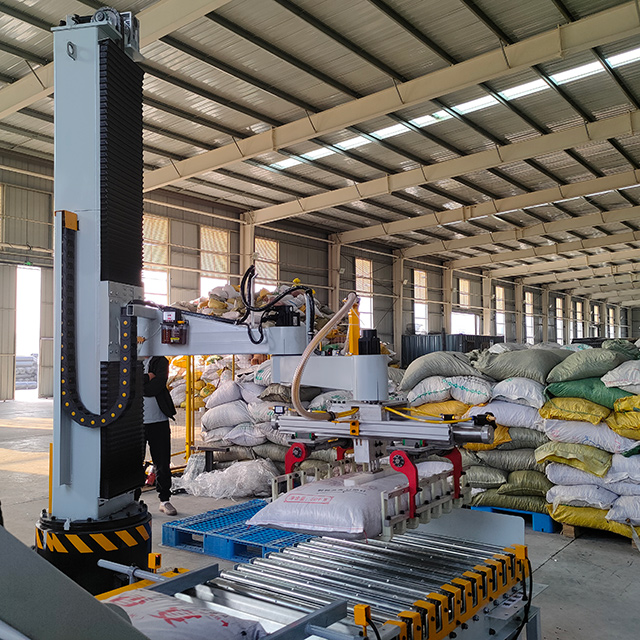

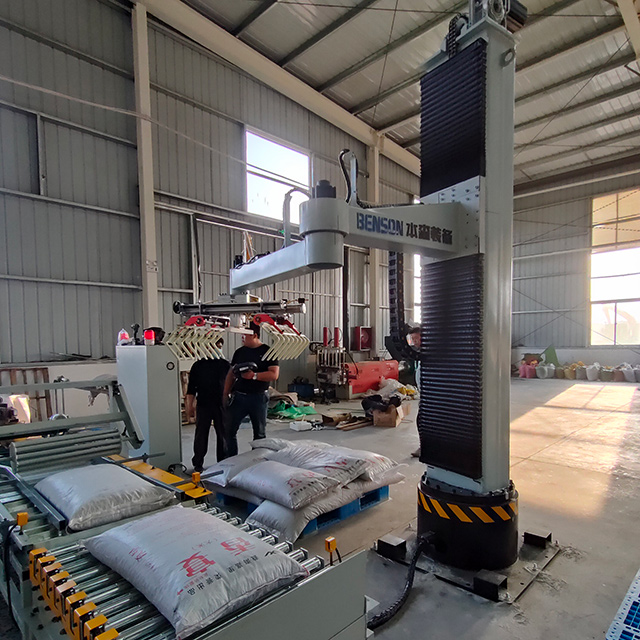

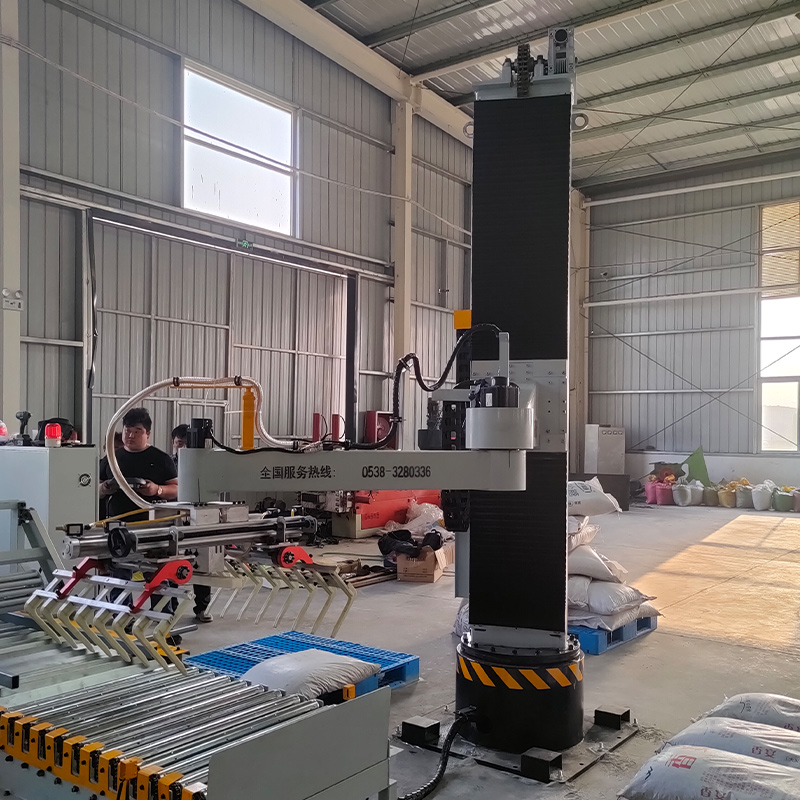

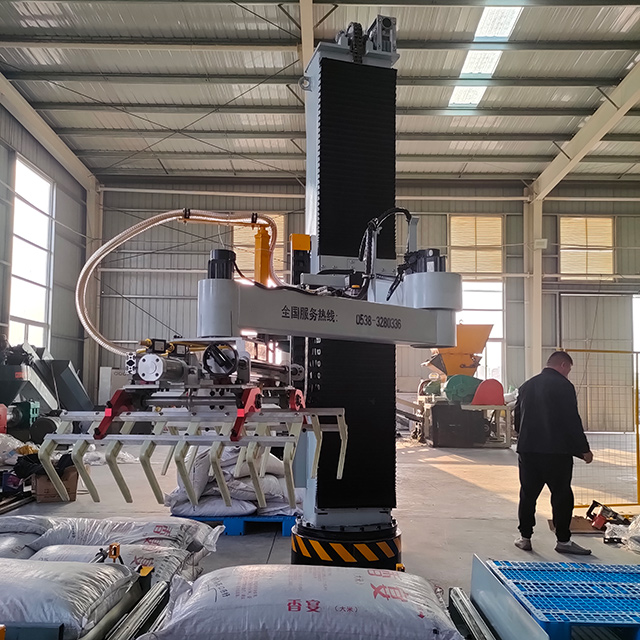

BENS120-2400 is the column palletiser in the range, and the column format is the whole argument: a vertical mast uses the height of a building instead of its floor, so the machine drops into a line where an articulated arm's swing radius would not fit. It reaches 2350 mm and carries 120 kg on four axes. Servo drive holds ±0.3 mm, looser than the articulated machine's ±0.2 mm but ample for stacking sacks and cases. The detail worth knowing is the memory battery on the servo cabling: after a power cut the robot resumes from its last operation rather than needing to be re-homed and the pattern restarted — on a palletising line, that is the difference between a pause and a lost pallet. It carries a multi-function grabber using vacuum suckers, sized to handle boxes of varying dimension and weight without a tool change. The body weighs 1025 kg and mounts to the floor. The same machine is also sold as STEVEN120-2400.

FUNKTIONEN

  • Four axes of motion
  • Maximum load 120 kg
  • Maximum coverage 2350 mm
  • Repeat positioning accuracy ±0.3 mm
  • Servo drive
  • Memory battery on the servo cabling — resumes the last operation after a power cut
  • Multi-function grabber with vacuum suckers for mixed box sizes and weights
  • Intelligent palletising memory
  • Body weight 1025 kg
  • ground-mounted installation
  • Compact vertical column uses building height rather than floor area
  • Also sold as STEVEN120-2400

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht1025 kg
Traglast120 kg
Mobilität
BewegungsartStationär
Freiheitsgrade4
ManipulationMittel
EinsatzumgebungIndoor end-of-line packaging and palletising lines, including dusty, humid and high-temperature plants
AktorenFour-axis vertical column with servo drive, ±0.3 mm repeatability, 2350 mm coverage, vacuum multi-function grabber
Sensorik & Rechenleistung
Software / KIIntelligent palletising memory; battery-backed servo memory resumes the last operation after power loss
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

HÄUFIG GESTELLTE FRAGEN

What is the BENS120-2400?

BENS120-2400 is the column palletiser in the range, and the column format is the whole argument: a vertical mast uses the height of a building instead of its floor, so the machine drops into a line where an articulated arm's swing radius would not fit. It reaches 2350 mm and carries 120 kg on four axes.

Who makes the BENS120-2400?

The BENS120-2400 is made by Benson Intelligent Equipment (Shandong) Co., Ltd., a robotics company based in China.

How much does the BENS120-2400 cost?

Benson Intelligent Equipment (Shandong) Co., Ltd. has not publicly announced pricing for the BENS120-2400. You can enquire through RobotAIGeek for current pricing.

What is the BENS120-2400 used for?

The BENS120-2400 is designed for materialhandhabung, verpacken, and palettieren. It is used in lager & logistik and fertigung settings.

What is the payload capacity of the BENS120-2400?

The BENS120-2400 has a payload capacity of 120 kg.

How much does the BENS120-2400 weigh?

The BENS120-2400 weighs 1,025 kg.

How many degrees of freedom does the BENS120-2400 have?

The BENS120-2400 has 4 degrees of freedom.
