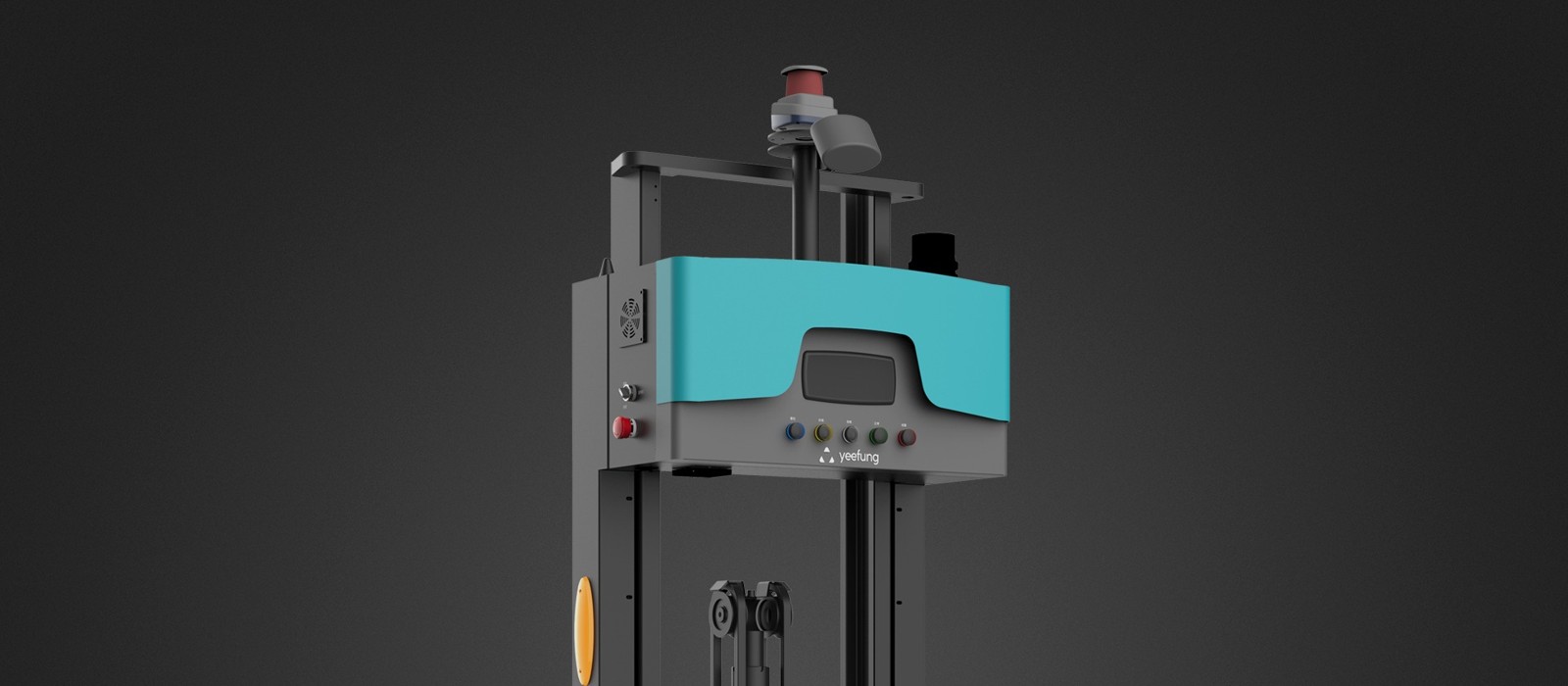

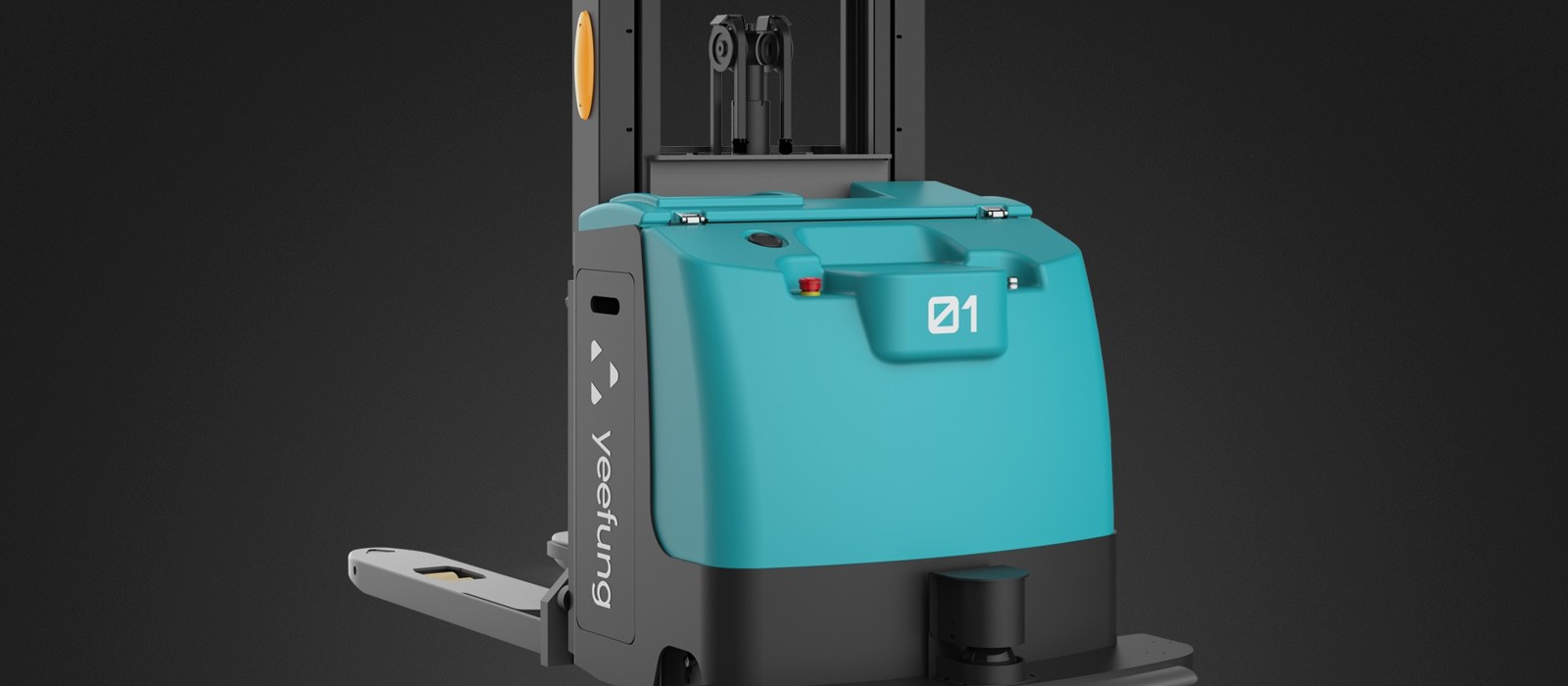

YL14.1

Yeefung

Industrial-Robot China

China已發布

★尚未評分

比較

來源：

yfagv.com

行業：

物流製造業

用途：

內部物流載入中物料搬運托盤運輸卸貨Automated material handling

價格：

尚未公布

型號：

Yeefung YL14.1 stacking forklift AGV I (1.5 t)

描述

YL14.1是Yeefung的Industrial-Robot。面向內部物流、載入中、物料搬運設計。關鍵數據：1044 kg、負載 1500 kg。

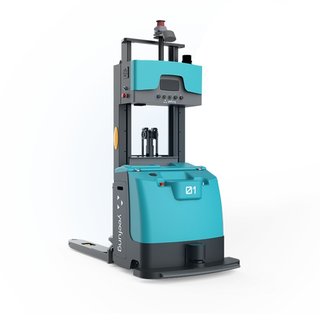

YL14.1 is Yeefung's lighter, more compact stacking forklift AGV. It navigates by laser, communicates over WLAN and charges automatically, lifting 1.5 t pallets to 1.5 m for factory and warehouse handling. It measures 2167 x 1110 x 2167 mm, weighs 1044 kg, carries 1500 kg, travels at up to 1.5 m/s, and positions to +/-5mm. Power comes from a 24V Lead-acid 210A battery with automatic or manual charging; it communicates over WLAN, and E-stops, non-contact and mechanical protection plus a SICK S300 laser obstacle scanner keep it safe.

功能特色

Navigation accuracy +/-10mm
positioning accuracy +/-5mm
Navigation: Laser navigation
Moving function: Forward, backward, turning
Drive mode: Single Steering drive
Size: 2167mm(L) x 1110mm(W) x 2167mm(H)
Driving speed (MAX): 1.5m/s
Turning speed(MAX): 0.6m/s (adjustable)
Lifting speed: 0.2m/s(full loaded), 0.28m/s(no-load)
Descending speed(MAX): 0.25m/s
Rated payload: 1500kg
Weight: 1044kg
Lifting height: 1500mm
Fork width: 196mm
Fork length: 1150mm
Fork thickness: 66mm
Distance between two forks: 288mm
Lowest Height from fork to the ground: 86mm
Gradeabilit: 3%
Driving motor: 1.5KW
Lifting motor: 2.2KW
Battery: 24V Lead-acid 210A
Charger power: 3.5KW
Right-angle stacking aisle width(MAX): 2700mm(Pallet size: 1000*1200mm)
Turning radius(MIN): 1700mm
Laser obstacle avoidance device: SICK S300
Safety: E-stop, Non-contact protection, mechanical protection
sensing range 0-3m

技術規格

已驗證

物理參數
重量	1044 kg
外形尺寸	L 2.17 m × W 1.11 m × H 2.17 m
負載	1500 kg
重複定位精度	±5 mm
移動能力
移動類型	帶輪的
速度	5.4 km/h
作業環境	Indoor factories and warehouses
致動器	Single Steering drive
電源與續航
續航時間	24V Lead-acid 210A
充電類型	Automatic / manual charging
感知與計算
感測器	Laser navigation sensors, SICK S300 laser obstacle scanner
連線方式	WLAN

來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。
