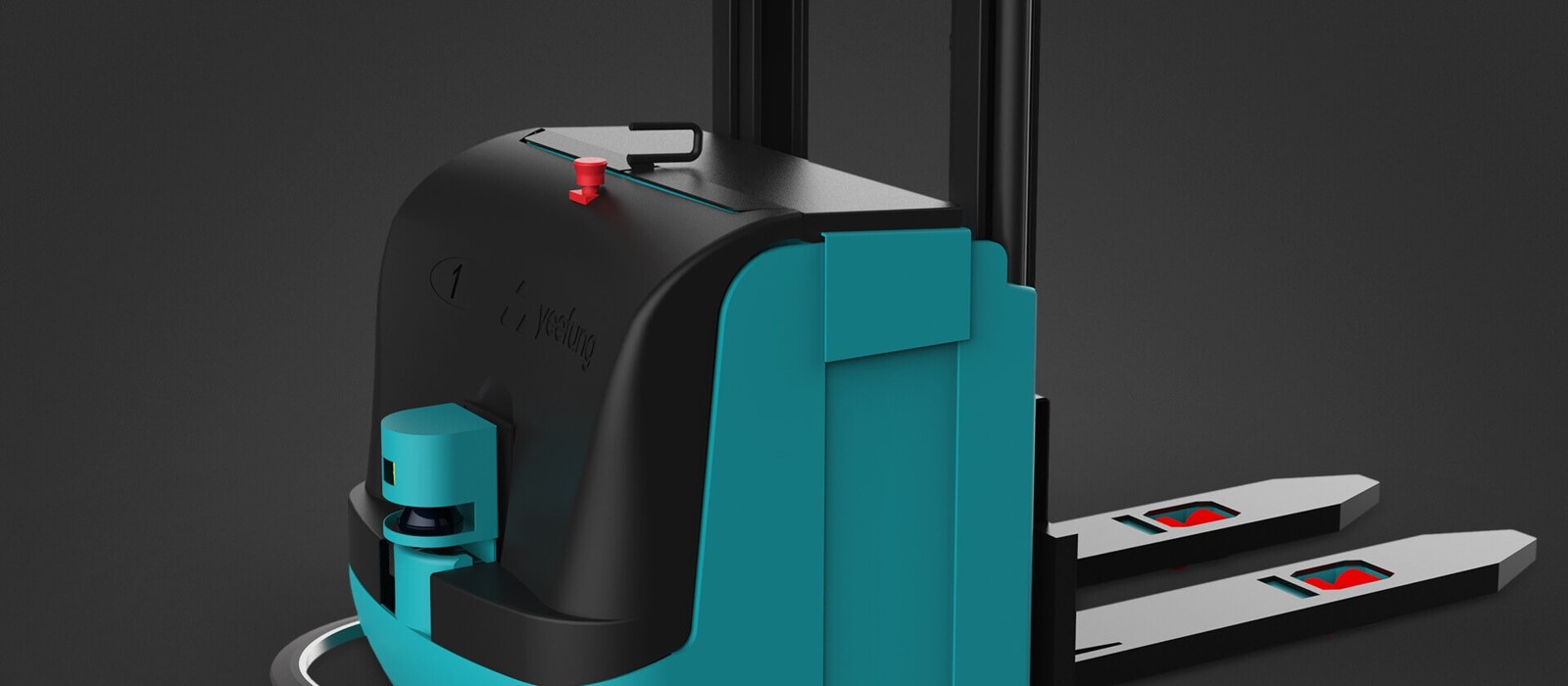

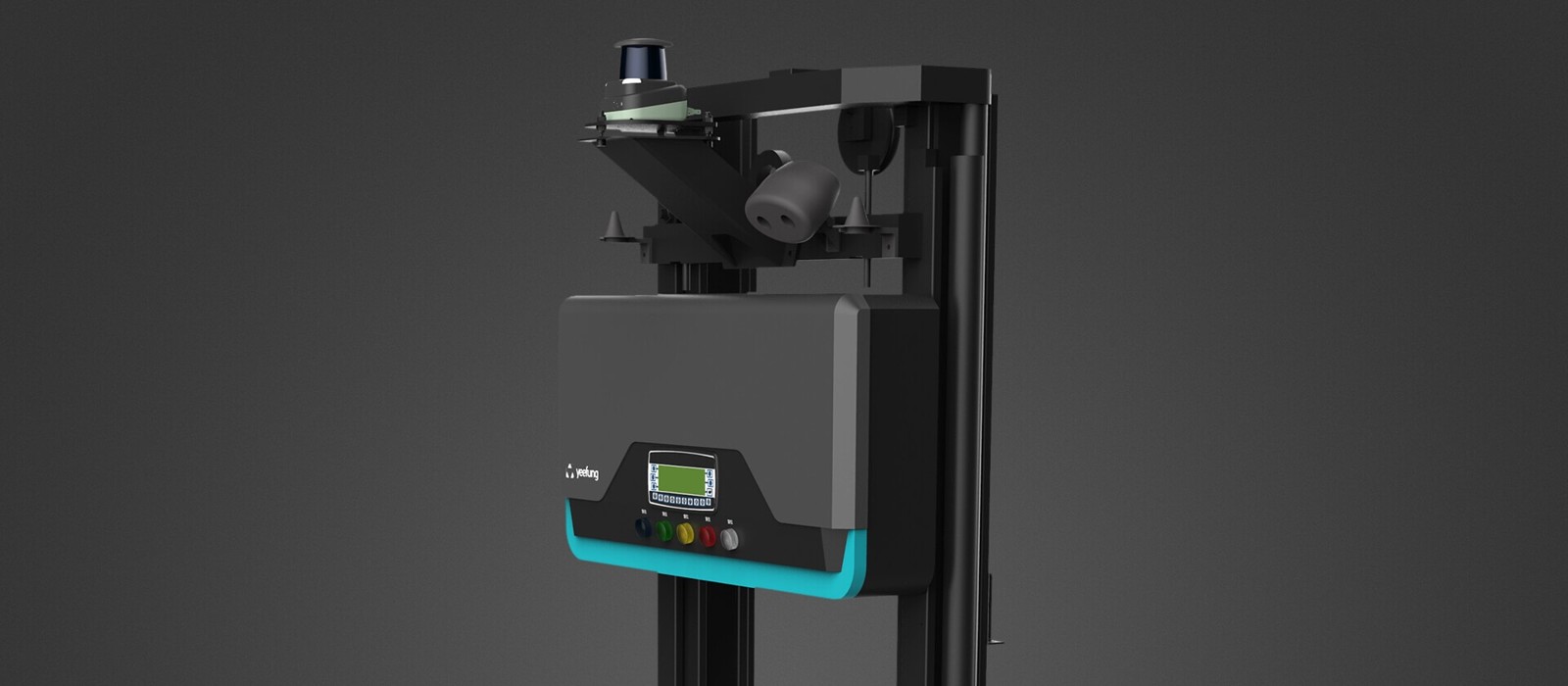

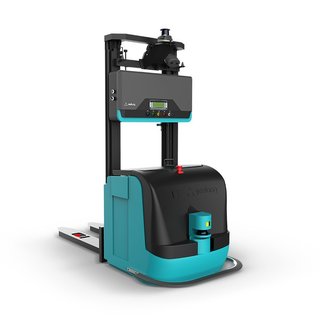

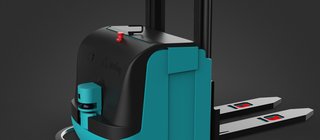

YL14

Yeefung

Industrial-Robot China

China已發布

★尚未評分

比較

來源：

yfagv.com

行業：

物流製造業

用途：

內部物流載入中物料搬運托盤運輸卸貨Automated material handling

價格：

尚未公布

型號：

Yeefung YL14 stacking forklift AGV II (1.4 t)

描述

YL14是Yeefung的Industrial-Robot。面向內部物流、載入中、物料搬運設計。關鍵數據：1250 kg、負載 1400 kg。

YL14 is Yeefung's stacking forklift AGV for warehouse storage, lifting 1.4 t to almost 2.9 m. With laser navigation, WLAN and automatic charging, it works with material-management, warehouse-management and traffic-management systems to automate goods delivery, storage and movement in the warehouse. It measures 2056 x 915 x 2510 mm, weighs 1250 kg, carries 1400 kg, travels at up to 1.5 m/s, and positions to +/-5mm. Power comes from a 24V Lead-acid 270Ah, Lithium 200Ah battery with automatic or manual charging; it communicates over WLAN, and E-stops, non-contact and mechanical protection plus a SICK S300 laser obstacle scanner keep it safe.

功能特色

Navigation accuracy +/-10mm
positioning accuracy +/-5mm
Navigation mode: Laser navigation
Walking function: Forward, backward, turning
Drive mode: Single steering drive wheel
Size: 2056mm(L) x 915mm(W) x 2510mm(H)
Driving speed (MAX): 1.5m/s
Turning speed (MAX): 0.6m/s
Lifting speed: 0.16m/s(full loaded), 0.25m/s(no-load)
Descending speed(MAX): 0.25m/s
Rated Payload: 1400kg
Weight: 1250kg
Lifting height: 2924mm
Fork width: 180mm
Fork length: 1147mm
Fork thickness: 55mm
Distance between two forks: 320mm
Lowest Height from fork to the ground: 86mm
Gradeability: 3%
Driving motor: 2.3KW
Lifting motor: 3KW
Battery: 24V Lead-acid 270Ah, Lithium 200Ah
Charger power: 3.5KW
Right-angle stacking aisle width(MAX): 2750mm(Pallet size: 1200*1000mm)
Turning radius(MIN): 1738mm
Laser obstacle avoidance device: SICK S300
Safety: E-stop, Non-contact protection, mechanical protection
sensing range 0-3m

技術規格

已驗證

物理參數
重量	1250 kg
外形尺寸	L 2.06 m × W 915 mm × H 2.51 m
負載	1400 kg
重複定位精度	±5 mm
移動能力
移動類型	帶輪的
速度	5.4 km/h
作業環境	Indoor factories and warehouses
致動器	Single steering drive wheel
電源與續航
續航時間	24V Lead-acid 270Ah, Lithium 200Ah
充電類型	Automatic / manual charging
感知與計算
感測器	Laser navigation sensors, SICK S300 laser obstacle scanner
連線方式	WLAN

來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。
