描述

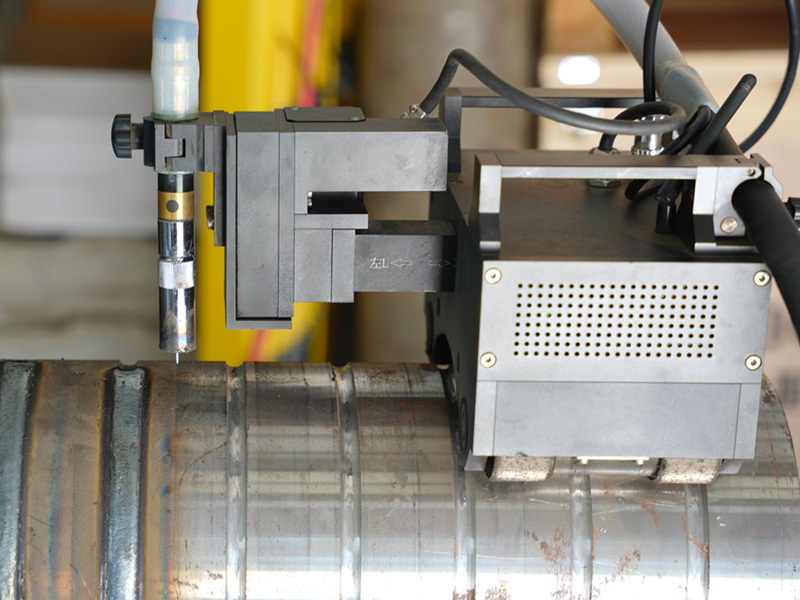

The W10 is a small pipe-welding carriage rather than a welding arm - a 10 kg tractor that rides the pipe and carries the torch around it, which is how girth welds on large-bore pipe get done without a positioner. It measures 230 x 297 x 171 mm and runs on 24 V DC at 300 W. It suits pipe of 130 mm diameter and above, with wall thickness from 4 to 50 mm, and welds at 10 to 600 mm/min - a range wide enough to cover both thin-wall root passes and slow fill passes on heavy sections. It sits in Shihe's range as the joining counterpart to the surface-treatment machines: the same customers maintaining tanks, pipework and steel structures need welds laid as well as coatings stripped.
功能特色
- Carriage rides the pipe and carries the welding torch around the joint
- Carriage dimensions 230 x 297 x 171 mm
- weight 10 kg
- Supply DC 24 V
- power 300 W
- Applicable pipe diameter 130 mm and above
- Applicable wall thickness 4 to 50 mm
- Welding speed 10 to 600 mm/min
技術規格
已驗證| 物理參數 | |
| 重量 | 10 kg |
|---|---|
| 外形尺寸 | L 297 mm × W 230 mm × H 171 mm |
| 移動能力 | |
| 移動類型 | 帶輪的 |
| 操作能力 | 低 |
| 作業環境 | Site and shop welding of pipe 130 mm diameter and above, wall thickness 4-50 mm |
| 致動器 | Self-propelled welding carriage running around the pipe circumference at 10-600 mm/min |
技術規格
已驗證| 物理參數 | |
| 重量 | 10 kg |
|---|---|
| 外形尺寸 | L 297 mm × W 230 mm × H 171 mm |
| 移動能力 | |
| 移動類型 | 帶輪的 |
| 操作能力 | 低 |
| 作業環境 | Site and shop welding of pipe 130 mm diameter and above, wall thickness 4-50 mm |
| 致動器 | Self-propelled welding carriage running around the pipe circumference at 10-600 mm/min |
圖片
martti
圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the Shihe HighMate W10 Welding Robot?
The W10 is a small pipe-welding carriage rather than a welding arm - a 10 kg tractor that rides the pipe and carries the torch around it, which is how girth welds on large-bore pipe get done without a positioner. It measures 230 x 297 x 171 mm and runs on 24 V DC at 300 W.
Who makes the Shihe HighMate W10 Welding Robot?
The Shihe HighMate W10 Welding Robot is made by Shihe Technology, a robotics company based in China.
How much does the Shihe HighMate W10 Welding Robot cost?
Shihe Technology has not publicly announced pricing for the Shihe HighMate W10 Welding Robot. You can enquire through RobotAIGeek for current pricing.
What is the Shihe HighMate W10 Welding Robot used for?
The Shihe HighMate W10 Welding Robot is designed for 焊接. It is used in 能源, 建築, and 製造業 settings.
How much does the Shihe HighMate W10 Welding Robot weigh?
The Shihe HighMate W10 Welding Robot weighs 10 kg.
