描述
Marvin M6S SRS-686是Tianji Gento的Collaborative-Robot。 面向組裝、研究設計。 關鍵數據：11.4 kg、負載 6 kg、臂展 686 mm、7 自由度。

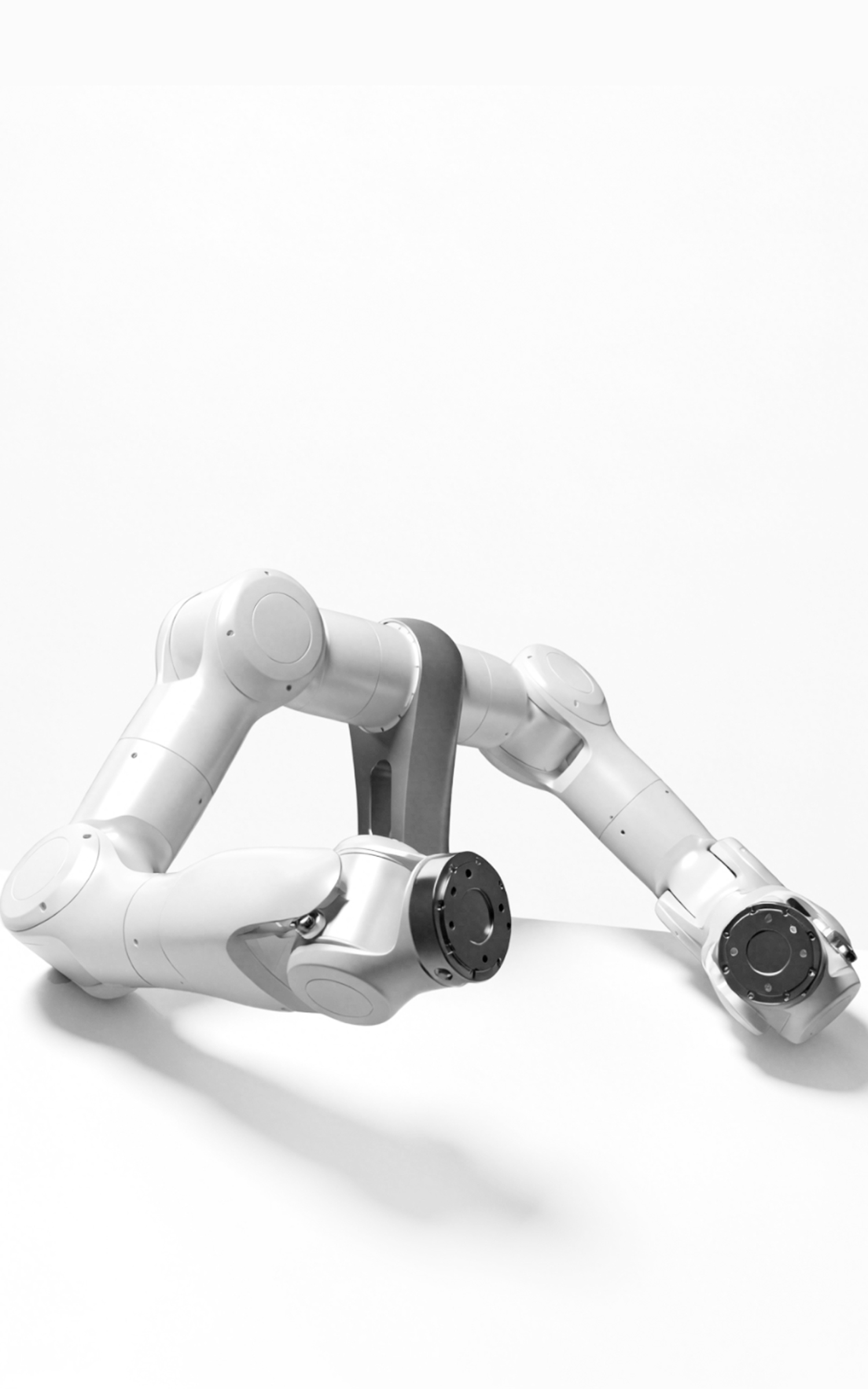

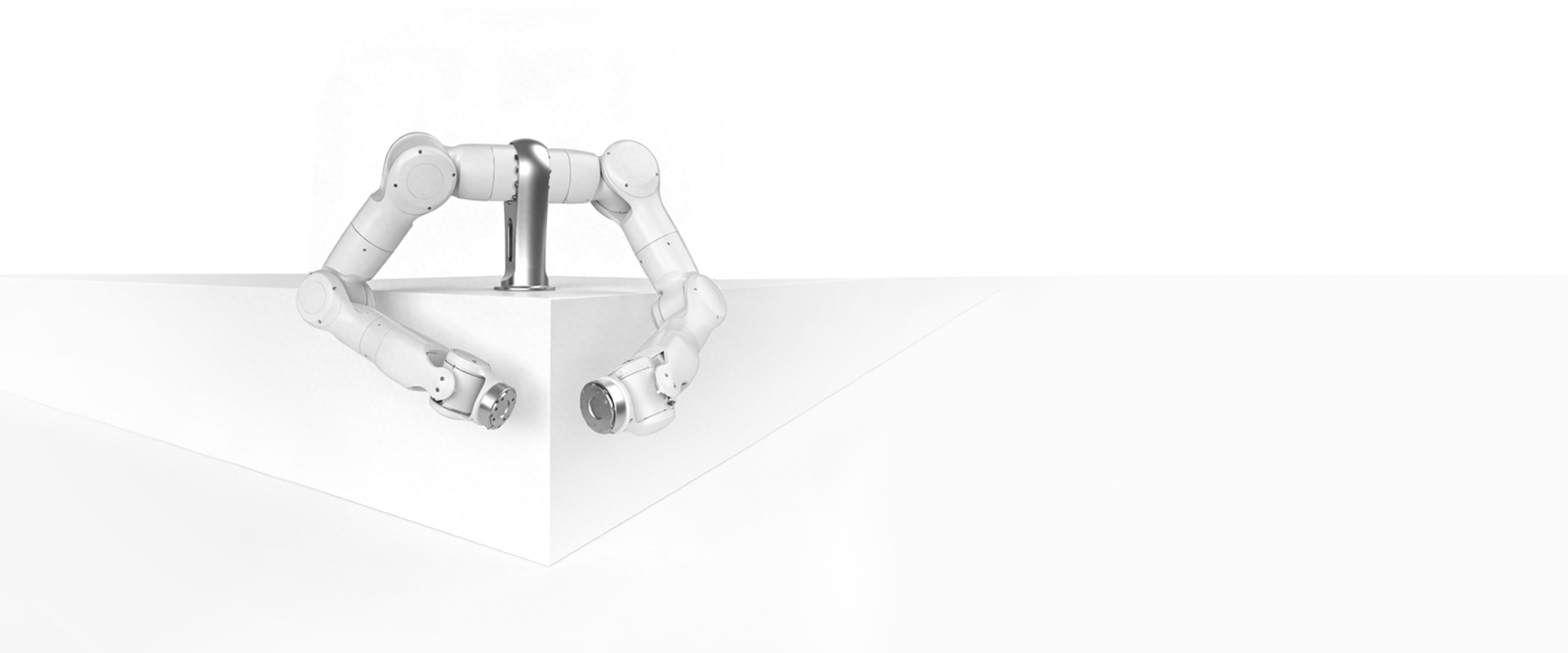

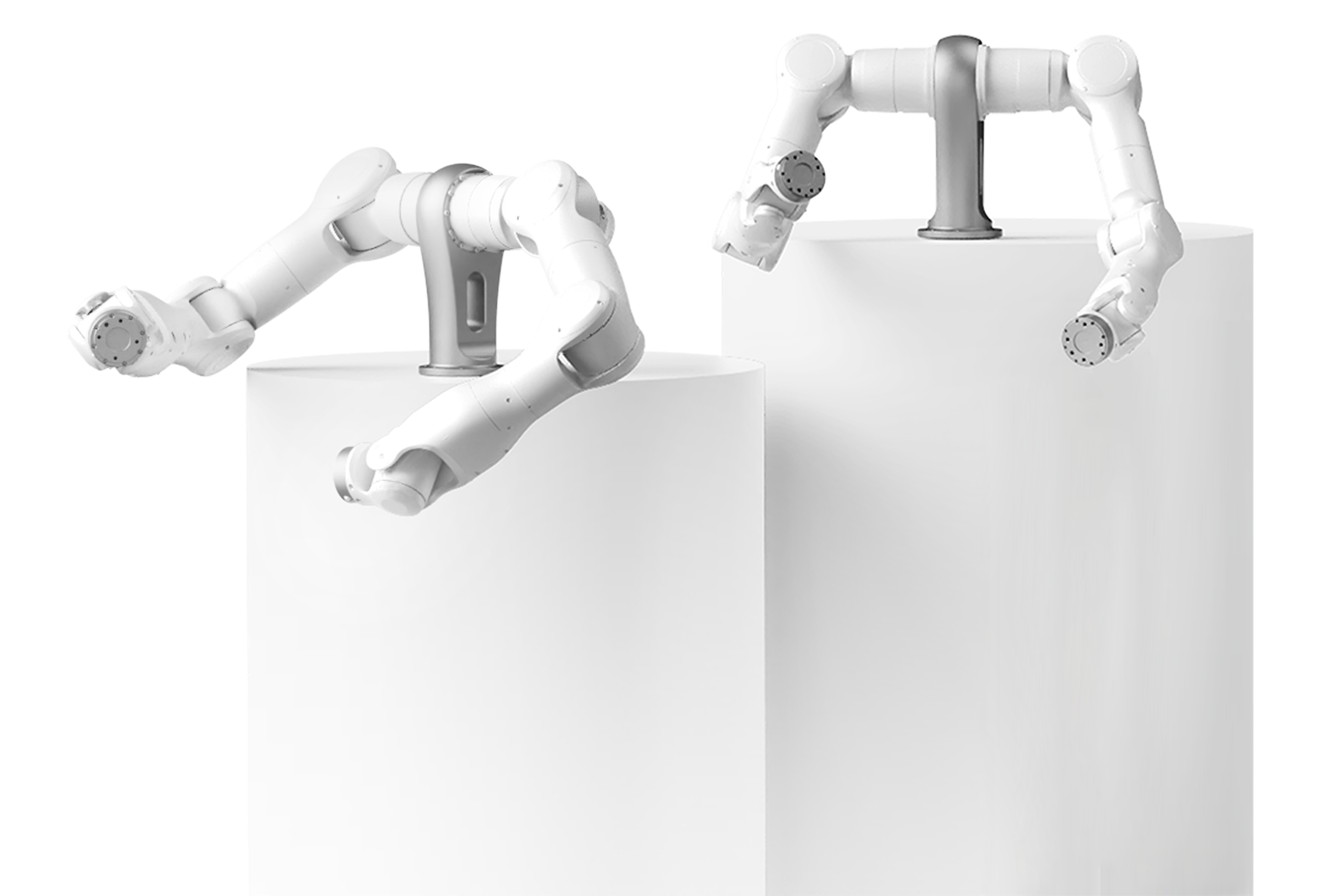

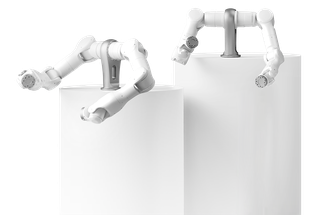

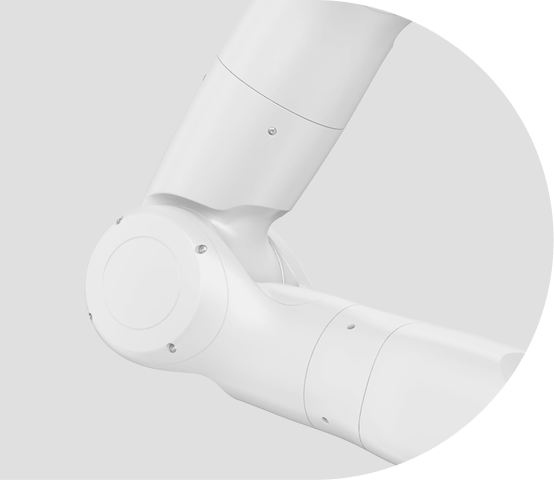

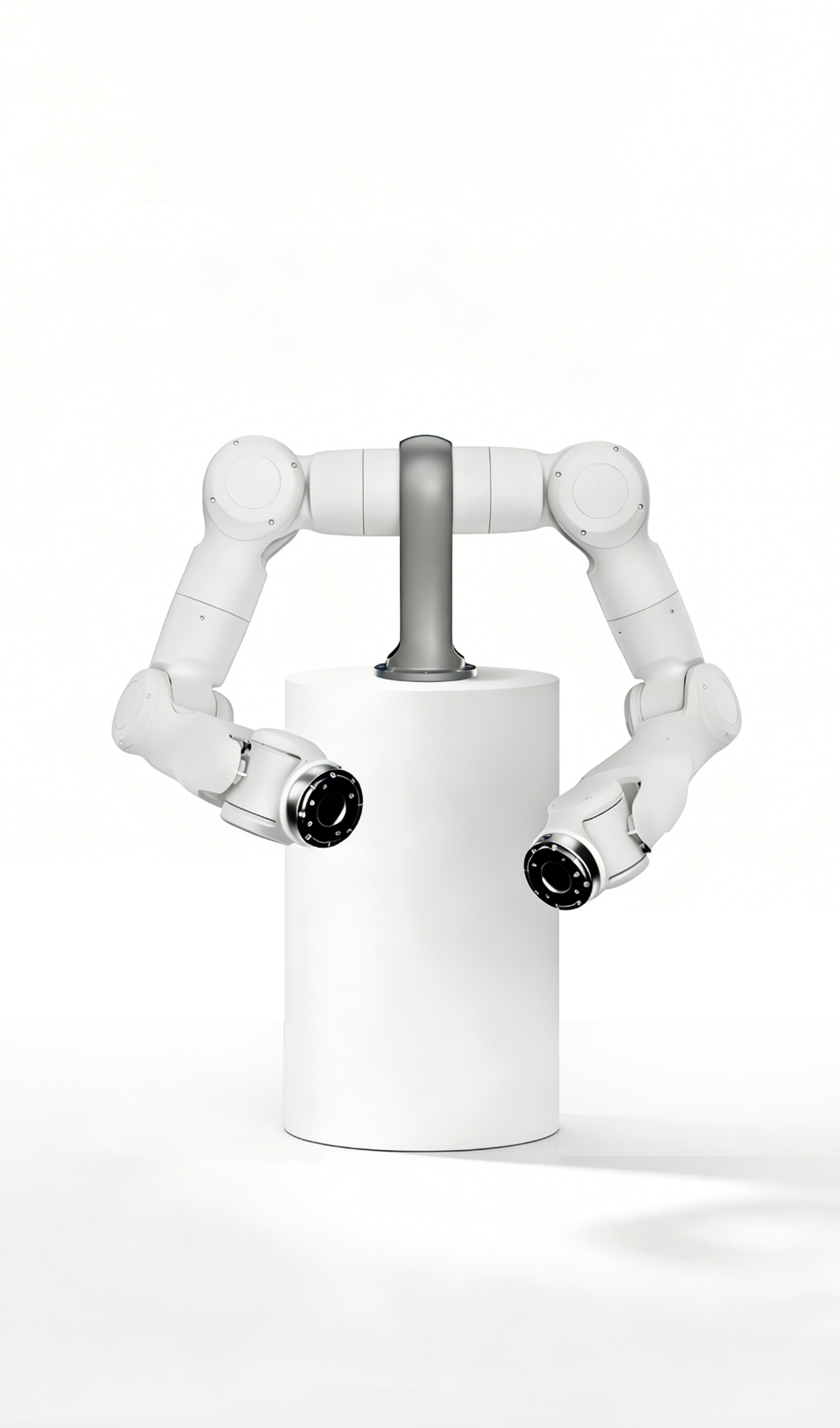

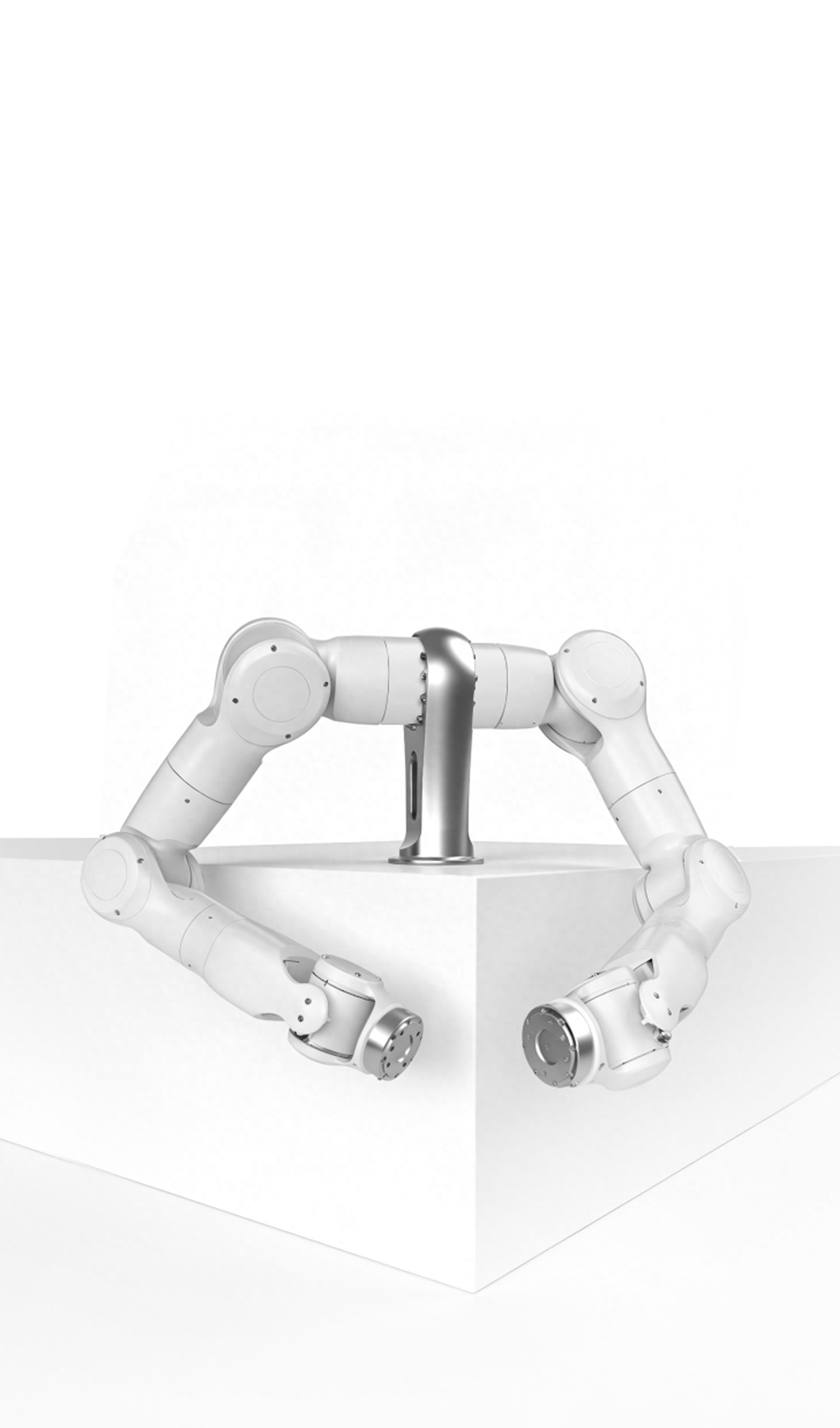

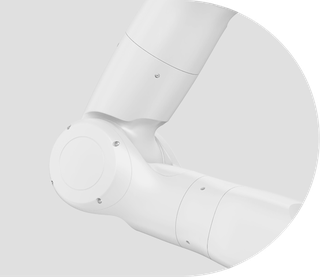

The Marvin M6S SRS-686 is a seven-axis force-controlled humanoid robot arm from Tianji, rated for 6 kg over a 686 mm working radius measured from the J2 axis to the end flange. Every joint carries a torque sensor as standard, giving force repeatability within 0.15 N, and the arm uses a traditional collaborative wrist. At 11.45 kg per arm it reaches a 2 m/s TCP speed and repeats to ±0.03 mm.
功能特色
- Seven degrees of freedom, 6 kg rated payload
- 686 mm working radius from J2 to end flange

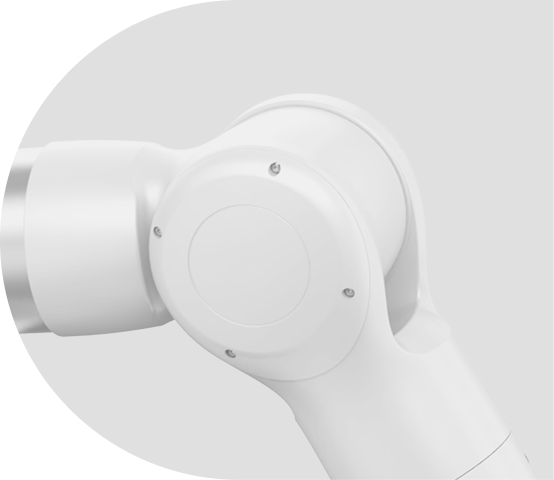

- Torque sensor on every joint as standard
- Force repeatability within 0.15 N

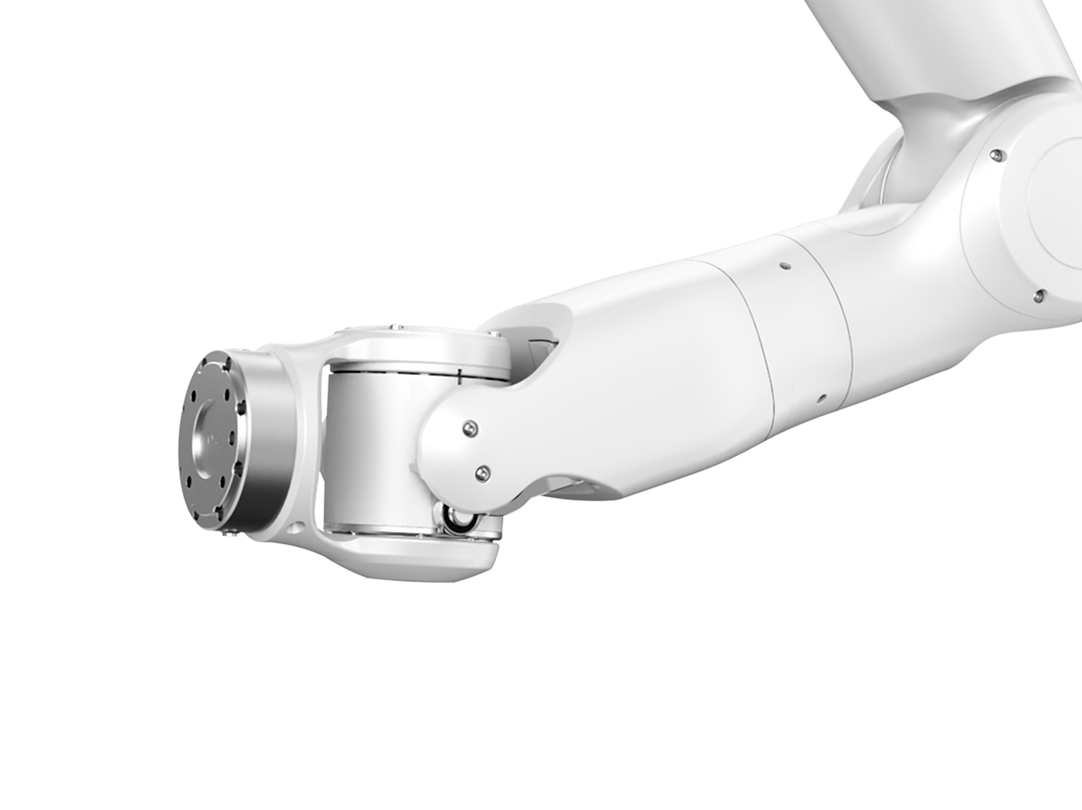

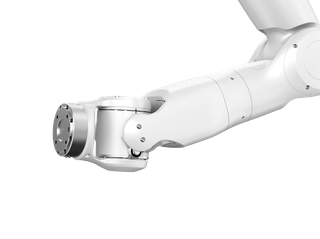

- Traditional collaborative wrist
- Camera cabling can be routed inside to the end effector
技術規格
已驗證| 物理參數 | |
| 重量 | 11.45 kg |
|---|---|
| 負載 | 6 kg |
| 臂展 | 686 mm |
| 重複定位精度 | ±0.03 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 7 |
| 速度 | 7.2 km/h |
技術規格
已驗證| 物理參數 | |
| 重量 | 11.45 kg |
|---|---|
| 負載 | 6 kg |
| 臂展 | 686 mm |
| 重複定位精度 | ±0.03 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 7 |
| 速度 | 7.2 km/h |
圖片
martti
martti
martti
martti
martti
martti圖片貢獻
機器人論壇
正在載入論壇...
評分
常見問題
What is the Marvin M6S SRS-686?
The Marvin M6S SRS-686 is a seven-axis force-controlled humanoid robot arm from Tianji, rated for 6 kg over a 686 mm working radius measured from the J2 axis to the end flange. Every joint carries a torque sensor as standard, giving force repeatability within 0.15 N, and the arm uses a traditional collaborative wrist.
Who makes the Marvin M6S SRS-686?
The Marvin M6S SRS-686 is made by Tianji Gento, a robotics company based in China.
How much does the Marvin M6S SRS-686 cost?
Tianji Gento has not publicly announced pricing for the Marvin M6S SRS-686. You can enquire through RobotAIGeek for current pricing.
What is the Marvin M6S SRS-686 used for?
The Marvin M6S SRS-686 is designed for 組裝 and 研究. It is used in 汽車, 電子產品, and 製造業 settings.
What is the payload capacity of the Marvin M6S SRS-686?
The Marvin M6S SRS-686 has a payload capacity of 6 kg and a reach of 686 mm.
How much does the Marvin M6S SRS-686 weigh?
The Marvin M6S SRS-686 weighs 11.45 kg.
How fast is the Marvin M6S SRS-686?
The Marvin M6S SRS-686 can move at speeds of up to 7.2 km/h.
How many degrees of freedom does the Marvin M6S SRS-686 have?
The Marvin M6S SRS-686 has 7 degrees of freedom.
