描述
HDX500S-30是Hyundai Robotics的Industrial-Robot。 面向組裝、托盤化、拾放設計。 關鍵數據：3240 kg、負載 500 kg、臂展 3068 mm、6 自由度。

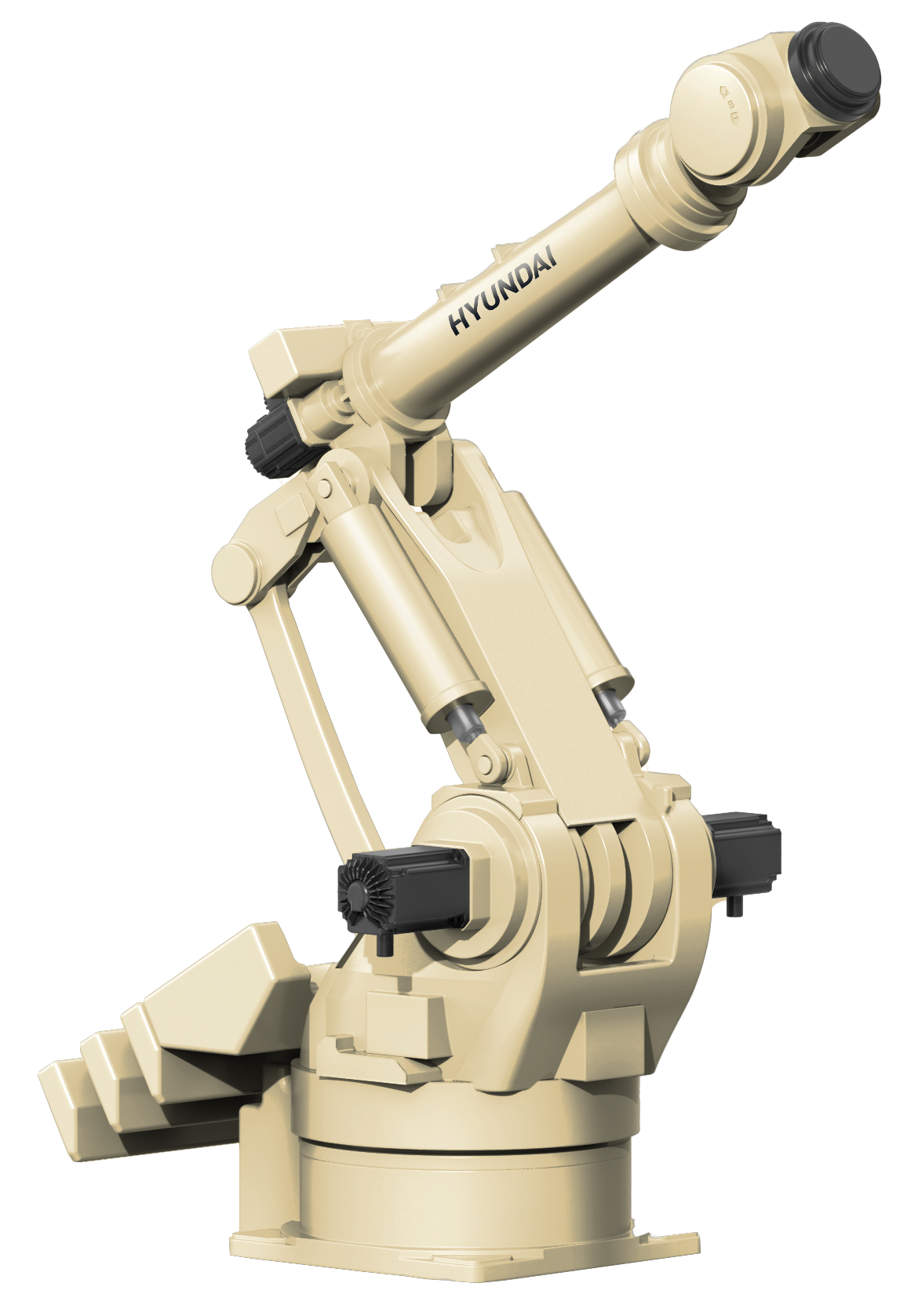

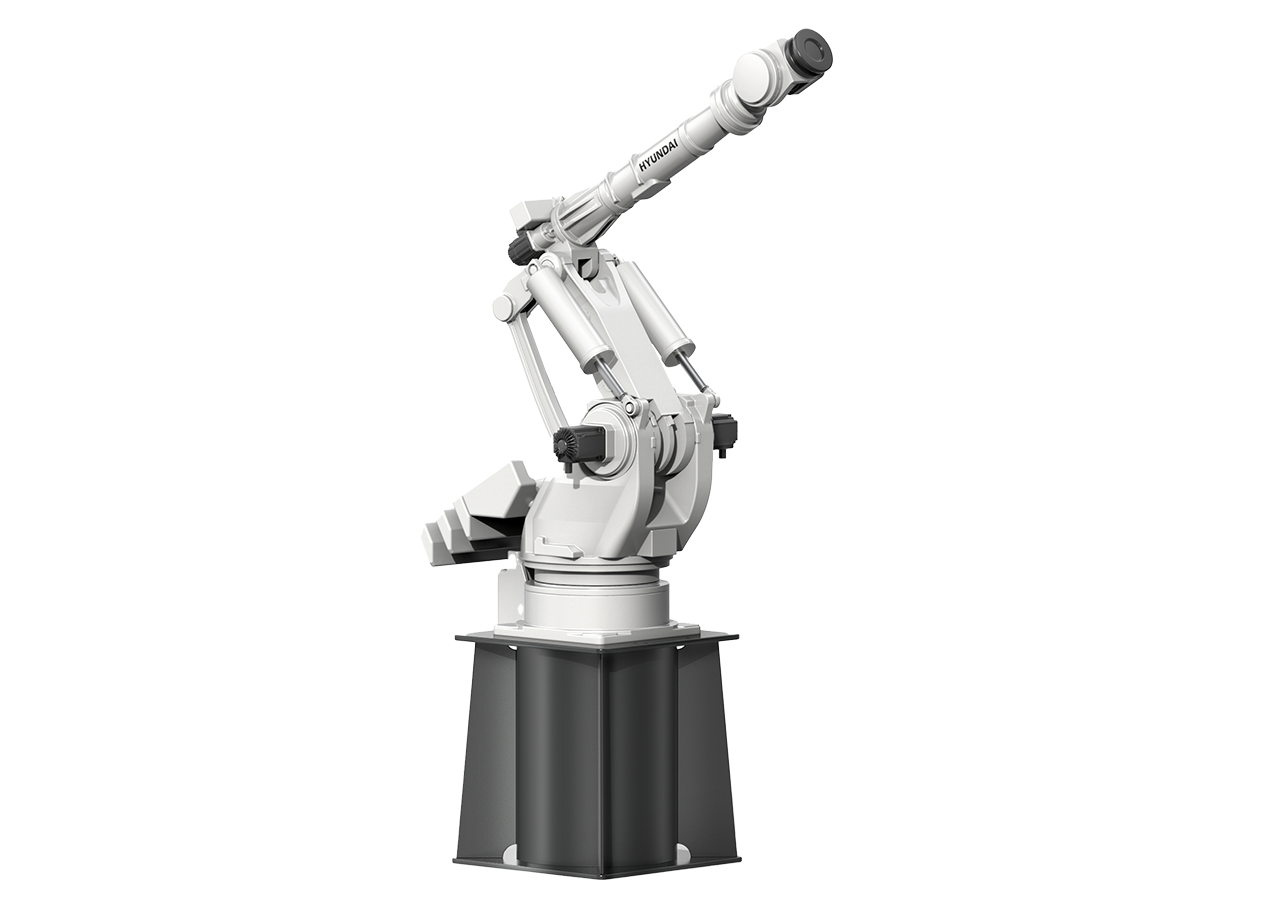

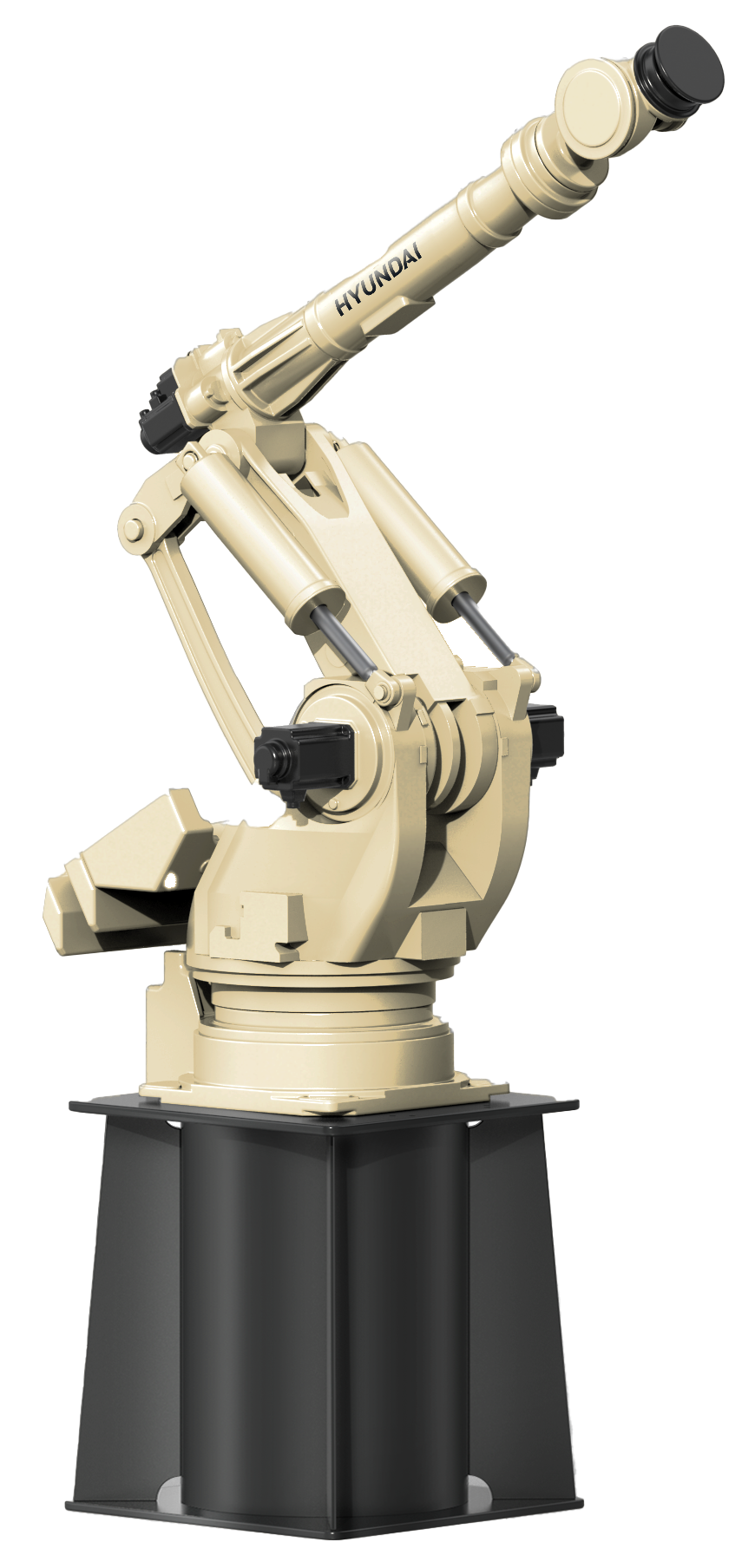

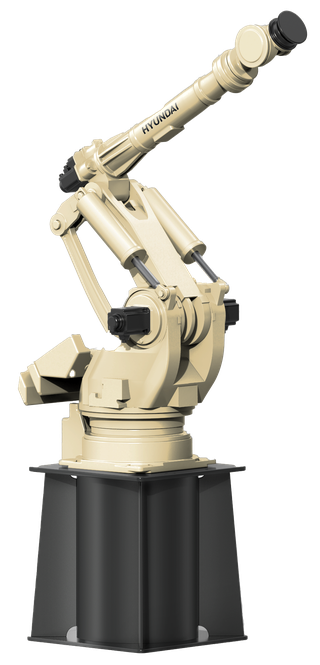

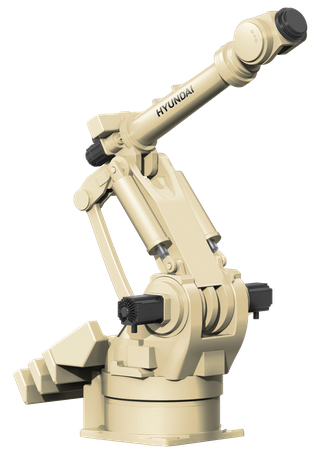

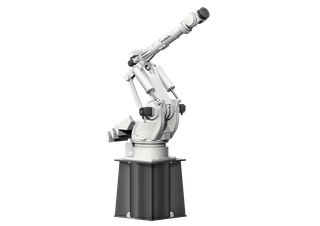

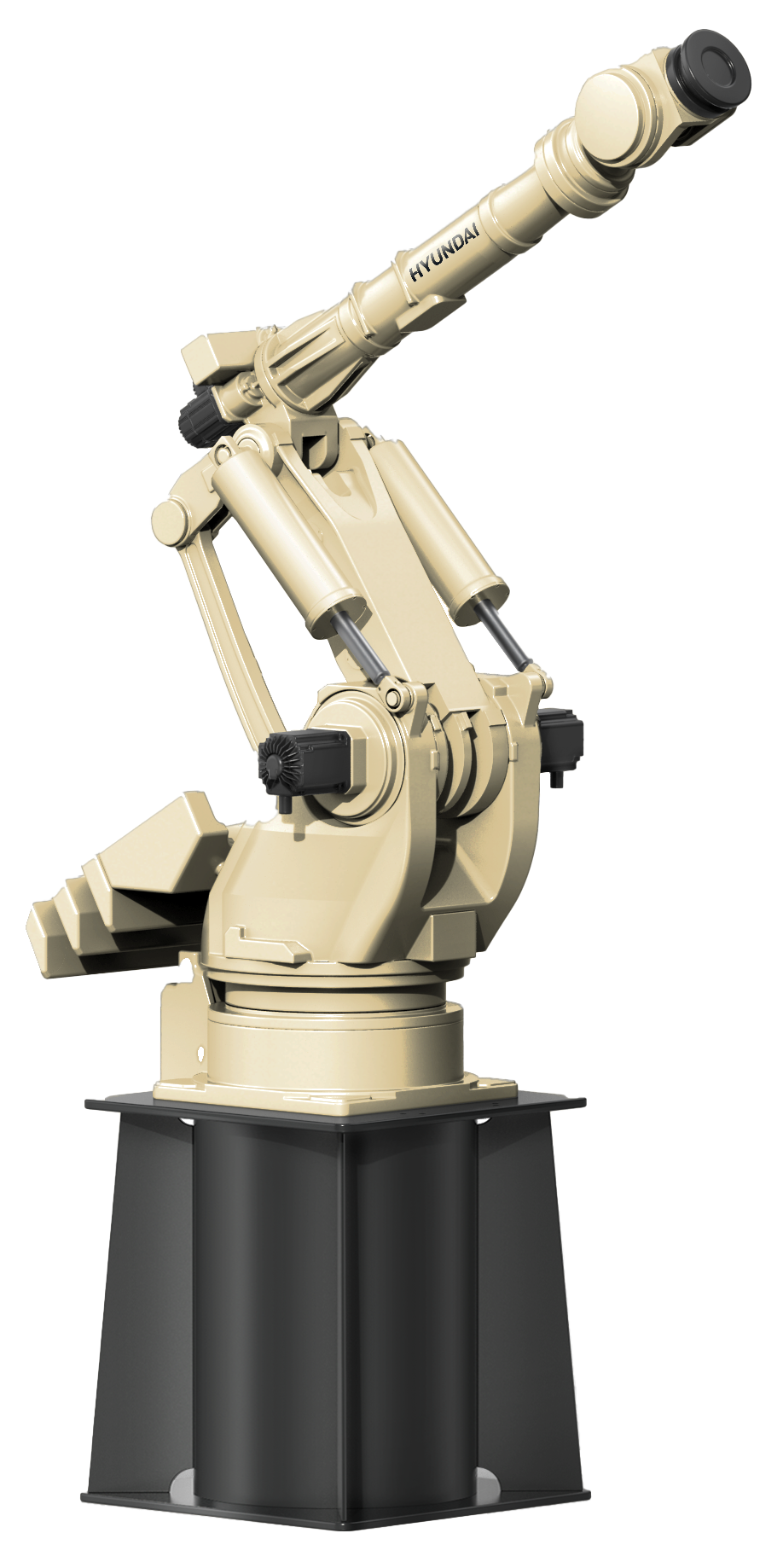

HDX500S-30 is a 6-axis industrial articulated robot manufactured by HD Hyundai Robotics. It has a rated payload of 500 kg and a maximum reach of 3068 mm, driven by AC Servo motors. Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80. Previously designated HX500S before HD Hyundai's catalogue renaming.
功能特色
- 6-axis articulated configuration
- Rated payload 500 kg
- Maximum reach 3068 mm
- AC Servo drive
- Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80
- Manufacturer-listed applications: assembly, handling, machine tending, spot welding
技術規格
| 物理參數 | |
| 重量 | 3240 kg |
|---|---|
| 負載 | 500 kg |
| 臂展 | 3.07 m |
| 重複定位精度 | ±0.3 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
技術規格
| 物理參數 | |
| 重量 | 3240 kg |
|---|---|
| 負載 | 500 kg |
| 臂展 | 3.07 m |
| 重複定位精度 | ±0.3 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
圖片
martti
martti
martti
martti
martti圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the HDX500S-30?
HDX500S-30 is a 6-axis industrial articulated robot manufactured by HD Hyundai Robotics. It has a rated payload of 500 kg and a maximum reach of 3068 mm, driven by AC Servo motors. Compatible controllers: Hi7-N80, Hi6-N80(HK), Hi5a-S80. Previously designated HX500S before HD Hyundai's catalogue renaming.
Who makes the HDX500S-30?
The HDX500S-30 is made by Hyundai Robotics, a robotics company based in South Korea.
How much does the HDX500S-30 cost?
Hyundai Robotics has not publicly announced pricing for the HDX500S-30. You can enquire through RobotAIGeek for current pricing.
What is the HDX500S-30 used for?
The HDX500S-30 is designed for 組裝, 托盤化, and 拾放. It is used in 其他 and 製造業 settings.
What is the payload capacity of the HDX500S-30?
The HDX500S-30 has a payload capacity of 500 kg and a reach of 3.07 m.
How much does the HDX500S-30 weigh?
The HDX500S-30 weighs 3,240 kg.
How many degrees of freedom does the HDX500S-30 have?
The HDX500S-30 has 6 degrees of freedom.
