描述
HDR20L-32是Hyundai Robotics的Industrial-Robot。 面向組裝、機台操作、物料搬運設計。 關鍵數據：535 kg、負載 20 kg、臂展 3283 mm、6 自由度。

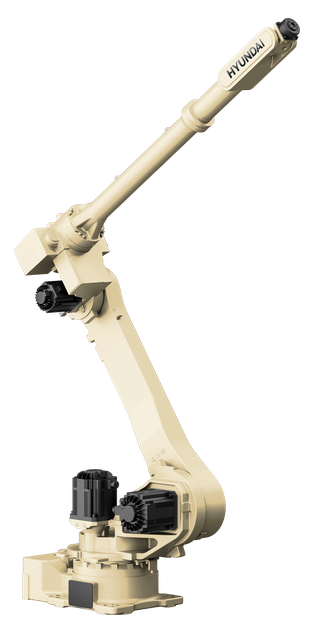

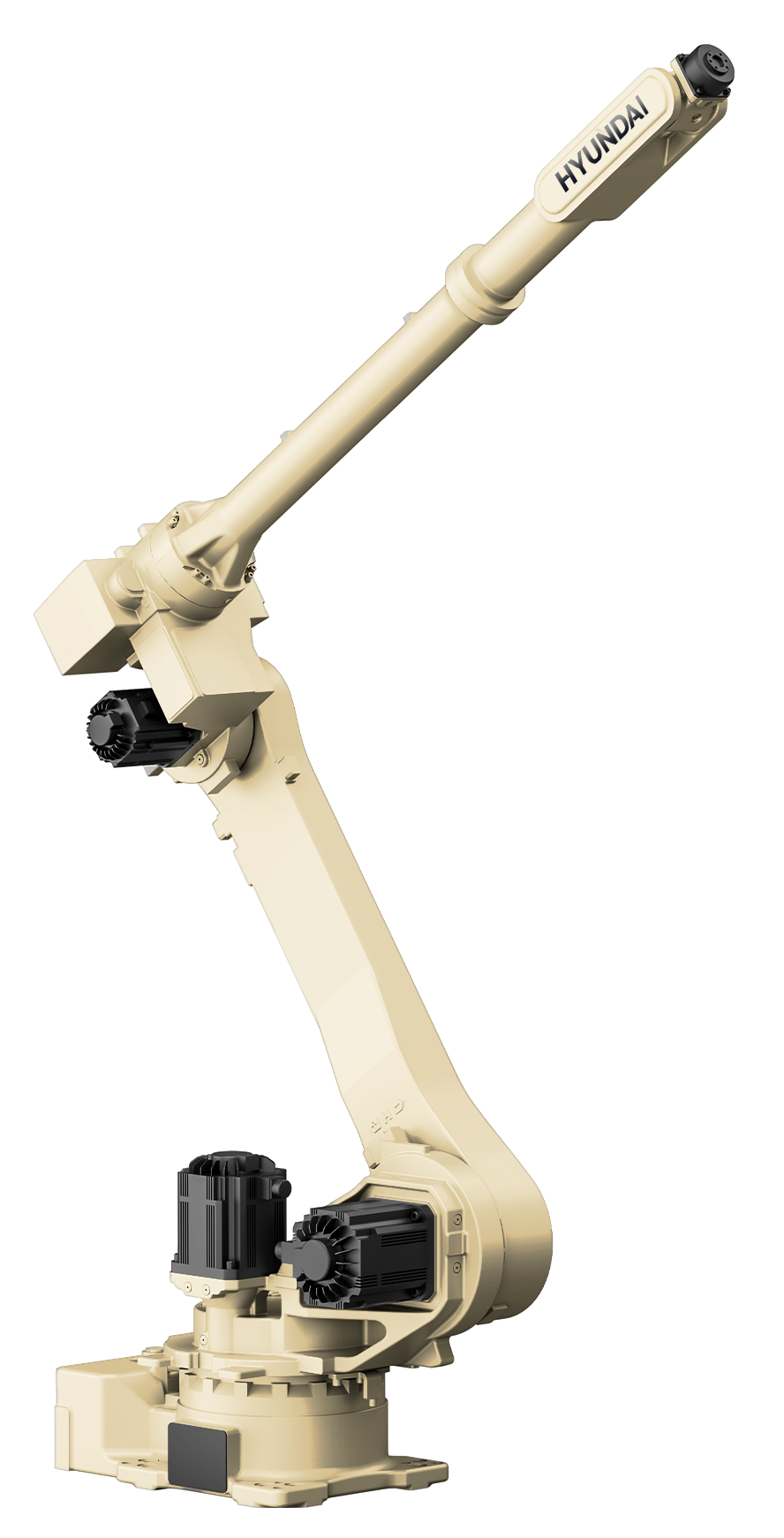

HDR20L-32 is an HD Hyundai Robotics 6-axis industrial articulated robot. It has rated payload 20 kg and maximum reach 3283 mm. Drive type: AC Servo. Compatible controllers: Hi7-N00-61, Hi6-N00-61. Previously designated UH020L.
功能特色
- 6-axis articulated configuration
- Rated payload 20 kg
- Maximum reach 3283 mm
- AC Servo drive
- Repeatability ±0.03 mm
- Manipulator mass 535 kg
- Compatible controllers: Hi7-N00-61, Hi6-N00-61
- OEM applications: material handling, assembly, machine tending
- Legacy designation: UH020L
技術規格
| 物理參數 | |
| 重量 | 535 kg |
|---|---|
| 負載 | 20 kg |
| 臂展 | 3.28 m |
| 重複定位精度 | ±0.03 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
技術規格
| 物理參數 | |
| 重量 | 535 kg |
|---|---|
| 負載 | 20 kg |
| 臂展 | 3.28 m |
| 重複定位精度 | ±0.03 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
圖片
martti
圖片貢獻
機器人論壇
正在載入論壇...
評分
常見問題
What is the HDR20L-32?
HDR20L-32 is an HD Hyundai Robotics 6-axis industrial articulated robot. It has rated payload 20 kg and maximum reach 3283 mm. Drive type: AC Servo. Compatible controllers: Hi7-N00-61, Hi6-N00-61. Previously designated UH020L.
Who makes the HDR20L-32?
The HDR20L-32 is made by Hyundai Robotics, a robotics company based in South Korea.
How much does the HDR20L-32 cost?
Hyundai Robotics has not publicly announced pricing for the HDR20L-32. You can enquire through RobotAIGeek for current pricing.
What is the HDR20L-32 used for?
The HDR20L-32 is designed for 組裝, 機台操作, 物料搬運, and 焊接. It is used in 汽車 and 製造業 settings.
What is the payload capacity of the HDR20L-32?
The HDR20L-32 has a payload capacity of 20 kg and a reach of 3.28 m.
How much does the HDR20L-32 weigh?
The HDR20L-32 weighs 535 kg.
How many degrees of freedom does the HDR20L-32 have?
The HDR20L-32 has 6 degrees of freedom.
