描述
HCR-14是Hanwha Robotics的Industrial-Robot。 面向組裝、拾放設計。 關鍵數據：42 kg、負載 14 kg、臂展 420 mm、6 自由度。

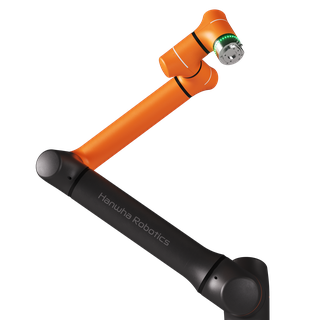

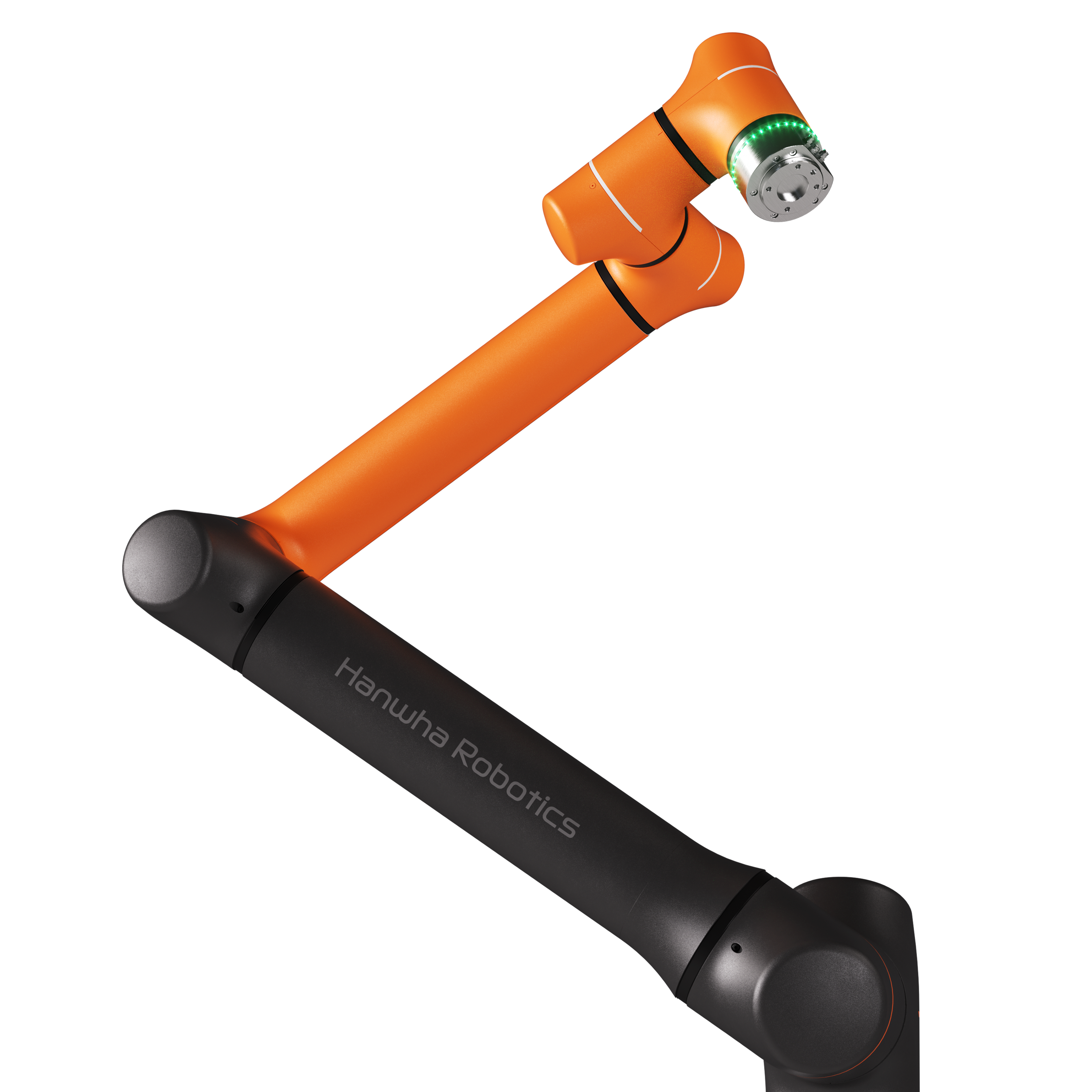

HCR-14 is a Hanwha Robotics collaborative robot for precision industrial automation with max payload 14 kg, reach 420 mm, repeatability ±0.04 mm, 6 DOF, mass 42 kg, power 24V.
功能特色
- Official OEM product page lists: max payload 14 kg, reach 420 mm, repeatability ±0.04 mm, 6 DOF, mass 42 kg, power 24V. Size W550 x H482 x L251 mm. 6-axis articulated motion with configurable I/O for integration in manufacturing lines.
技術規格
| 物理參數 | |
| 重量 | 42 kg |
|---|---|
| 外形尺寸 | L 251 mm × W 550 mm × H 482 mm |
| 負載 | 14 kg |
| 臂展 | 420 mm |
| 重複定位精度 | ±0.04 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
| 速度 | 5.4 km/h |
技術規格
| 物理參數 | |
| 重量 | 42 kg |
|---|---|
| 外形尺寸 | L 251 mm × W 550 mm × H 482 mm |
| 負載 | 14 kg |
| 臂展 | 420 mm |
| 重複定位精度 | ±0.04 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
| 速度 | 5.4 km/h |
圖片
martti
圖片貢獻
機器人論壇
正在載入論壇...
評分
常見問題
What is the HCR-14?
HCR-14 is a Hanwha Robotics collaborative robot for precision industrial automation with max payload 14 kg, reach 420 mm, repeatability ±0.04 mm, 6 DOF, mass 42 kg, power 24V.
Who makes the HCR-14?
The HCR-14 is made by Hanwha Robotics, a robotics company based in South Korea.
How much does the HCR-14 cost?
Hanwha Robotics has not publicly announced pricing for the HCR-14. You can enquire through RobotAIGeek for current pricing.
What is the HCR-14 used for?
The HCR-14 is designed for 組裝 and 拾放. It is used in 製造業 settings.
What is the payload capacity of the HCR-14?
The HCR-14 has a payload capacity of 14 kg and a reach of 420 mm.
How much does the HCR-14 weigh?
The HCR-14 weighs 42 kg.
How fast is the HCR-14?
The HCR-14 can move at speeds of up to 5.4 km/h.
How many degrees of freedom does the HCR-14 have?
The HCR-14 has 6 degrees of freedom.
