描述

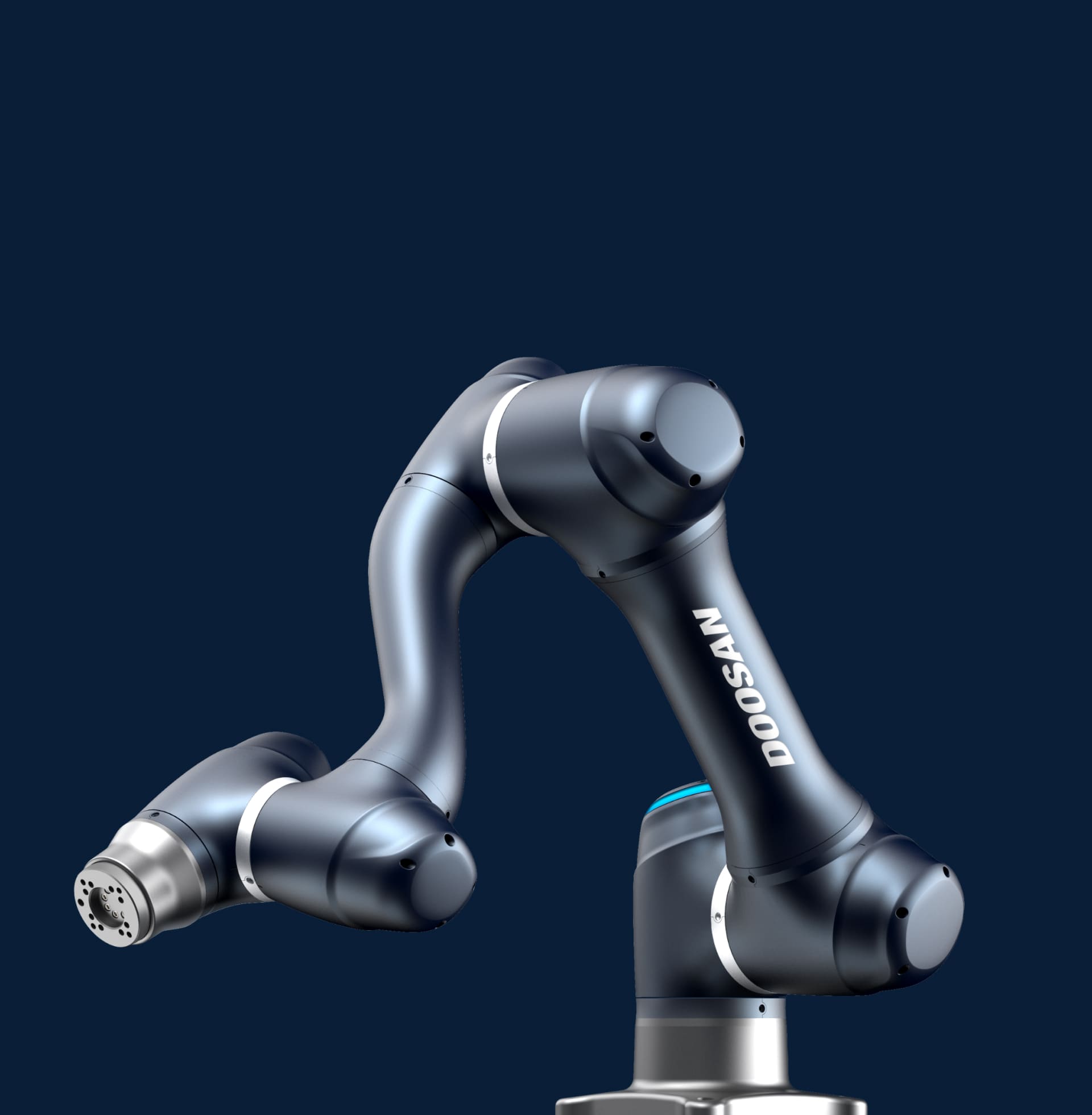

A0509S是Doosan Robotics的Industrial-Robot。 面向組裝、機台操作、拾放設計。 關鍵數據：21 kg、負載 5 kg、臂展 900 mm、6 自由度。
A0509S is the force-sensor Agile variant of the A0509. A built-in flange force/torque sensor enables precise compliance control for assembly and inspection while keeping the compact 5 kg / 900 mm envelope.
功能特色
- 5 kg payload
- ~900–903 mm reach
- ±0.03 mm repeatability
- 21 kg weight
- 6-axis
- IP54
- Built-in 6-axis force sensor at the flange (A-Series S models) for compliance and contact tasks
- Agile safety/speed/ROI feature set
技術規格
已驗證| 物理參數 | |
| 重量 | 21 kg |
|---|---|
| 負載 | 5 kg |
| 臂展 | 900 mm |
| 重複定位精度 | ±0.03 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
技術規格
已驗證| 物理參數 | |
| 重量 | 21 kg |
|---|---|
| 負載 | 5 kg |
| 臂展 | 900 mm |
| 重複定位精度 | ±0.03 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
圖片
martti
圖片貢獻
機器人論壇
正在載入論壇...
評分
常見問題
What is the A0509S?
A0509S is the force-sensor Agile variant of the A0509. A built-in flange force/torque sensor enables precise compliance control for assembly and inspection while keeping the compact 5 kg / 900 mm envelope.
Who makes the A0509S?
The A0509S is made by Doosan Robotics, a robotics company based in South Korea.
How much does the A0509S cost?
Doosan Robotics has not publicly announced pricing for the A0509S. You can enquire through RobotAIGeek for current pricing.
What is the A0509S used for?
The A0509S is designed for 組裝, 機台操作, 拾放, and 檢查. It is used in 電子產品 and 製造業 settings.
What is the payload capacity of the A0509S?
The A0509S has a payload capacity of 5 kg and a reach of 900 mm.
How much does the A0509S weigh?
The A0509S weighs 21 kg.
How many degrees of freedom does the A0509S have?
The A0509S has 6 degrees of freedom.
