描述
F1000AP是Asseco CEIT的Industrial-Robot。 面向内部物流、举重、正在加载设计。 关键数据：负载 1000 kg。

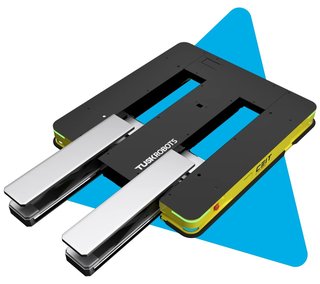

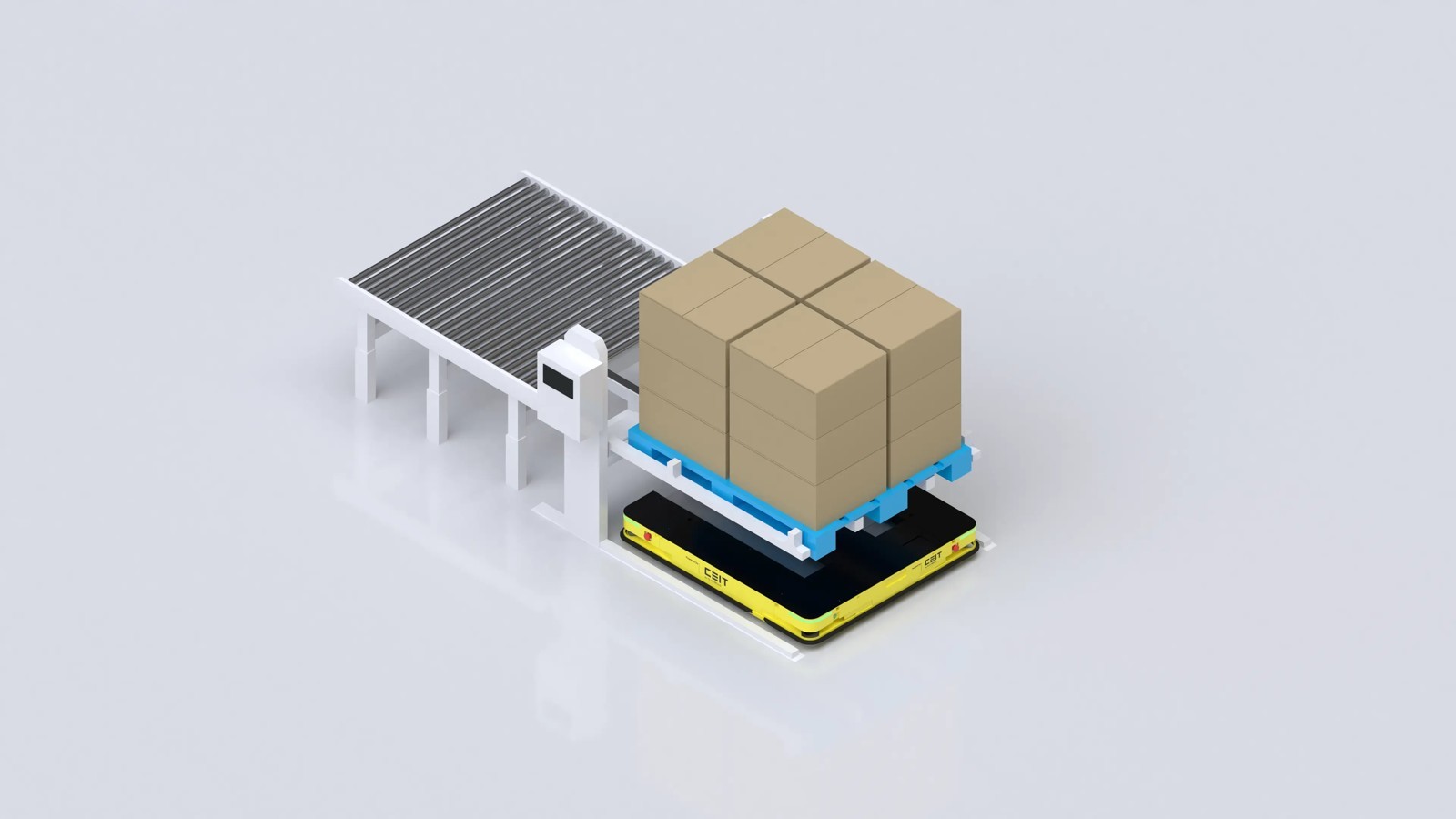

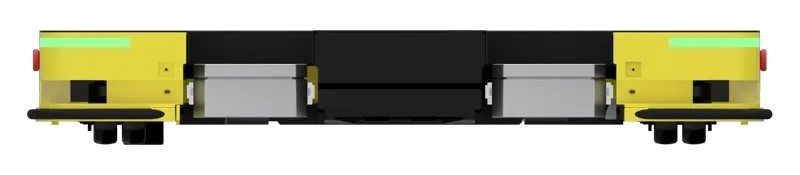

F1000AP is a 170 mm-high low-lift forklift AGV with an 'invisible' fork system: its fork arms slide under pallets for direct pickup without a separate pallet station, lifting 1,000 kg by up to 330 mm. It travels at up to 1.5 m/s, switches between floor DM-code and SLAM navigation, has four lasers for 360-degree protection plus bumpers, emergency stop, status lights and alarm, and charges automatically by contact; Asseco CEIT shows it working with lifts, ground rollers and lift conveyors.
功能特点
- Load capacity 1,000 kg
- lift up to 330 mm
- Invisible fork system for direct pallet pickup
- Max. speed 1.5 m/s
- turning radius 1.9 m
- Hybrid DM code + SLAM navigation
- 4-laser 360 deg protection
- safety bumper, emergency stop, lights, sound alarm
- Automatic contact charging
- 1,312 x 1,060 x 170 mm
- CE
技术规格
已验证| 物理参数 | |
| 外形尺寸 | L 1.31 m × W 1.06 m × H 170 mm |
|---|---|
| 负载 | 1000 kg |
| 移动能力 | |
| 运动类型 | 带轮的 |
| 速度 | 5.4 km/h |
| 作业环境 | Factories and warehouses (indoor) |
| 电源与续航 | |
| 充电类型 | Automatic contact charging |
| 感知与计算 | |
| 传感器 | 4 safety laser scanners (360 deg), DM code camera, safety bumper |
机器人论坛
正在加载论坛...
技术规格
已验证| 物理参数 | |
| 外形尺寸 | L 1.31 m × W 1.06 m × H 170 mm |
|---|---|
| 负载 | 1000 kg |
| 移动能力 | |
| 运动类型 | 带轮的 |
| 速度 | 5.4 km/h |
| 作业环境 | Factories and warehouses (indoor) |
| 电源与续航 | |
| 充电类型 | Automatic contact charging |
| 感知与计算 | |
| 传感器 | 4 safety laser scanners (360 deg), DM code camera, safety bumper |
martti
martti
martti图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the F1000AP?
F1000AP is a 170 mm-high low-lift forklift AGV with an 'invisible' fork system: its fork arms slide under pallets for direct pickup without a separate pallet station, lifting 1,000 kg by up to 330 mm.
Who makes the F1000AP?
The F1000AP is made by Asseco CEIT, a robotics company based in Slovak Republic.
How much does the F1000AP cost?
Asseco CEIT has not publicly announced pricing for the F1000AP. You can enquire through RobotAIGeek for current pricing.
What is the F1000AP used for?
The F1000AP is designed for 内部物流, 举重, 正在加载, and 物料搬运. It is used in 汽车, 物流, and 制造业 settings.
What is the payload capacity of the F1000AP?
The F1000AP has a payload capacity of 1,000 kg.
How fast is the F1000AP?
The F1000AP can move at speeds of up to 5.4 km/h.
