설명
SC7-1077은(는) RSM Machinery의 Industrial-Robot입니다. 머신 텐딩, 자재 취급, 용접 용도로 설계되었습니다. 주요 수치: 21 kg, 가반 하중 7 kg, 도달 범위 1077 mm, 6 자유도.

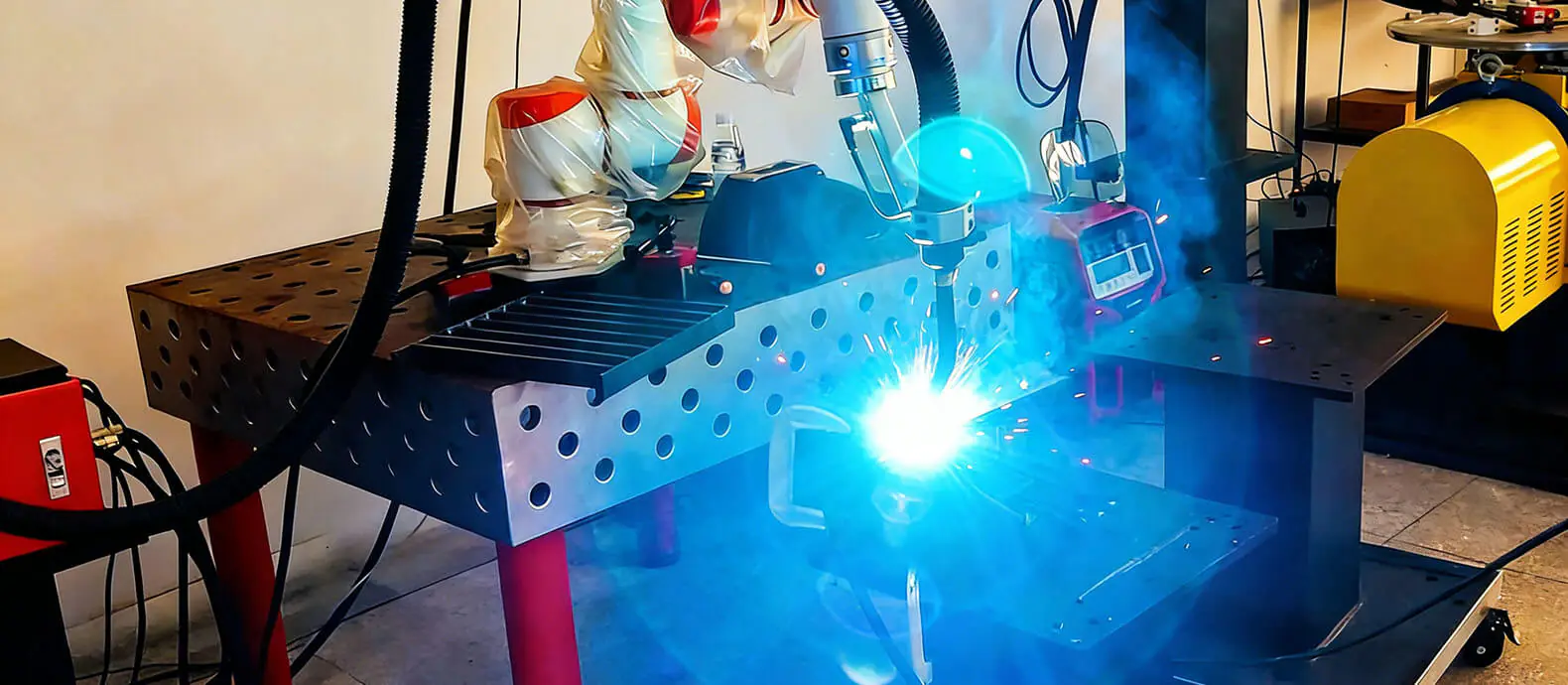

ERSM SC7-1077 is a six-axis collaborative welding robot in the SC series for heavy-plate and sheet-metal fabrication. Documented on the OEM SC family page alongside SC6-1460 / SC15-1464 / SC20-2027 / SC7-1077.
주요 기능
- ERSM SC-series collaborative welding robot — model SC7-1077. OEM publishes all SC SKUs (SC7-1077, SC6-1460, SC15-1464, SC20-2027) in one Technical Parameters table on the SC6-1460 family product page
- values below are the SC7-1077 column only (not sibling columns). Six-axis cobot for heavy-plate and sheet-metal welding with arc tracking, multi-layer multi-pass, and swing fixed-point arc
- drag-and-drop / teach-handle programming
- fence-free ISO 10218-1 collaboration with force/collision stop. Specs for SC7-1077: max working radius 1077.0 mm
- payload 7.0 kg
- repeat positioning ±0.02 mm
- tool-end max speed 3000 mm/s
- body weight 21.0 kg
- rated power 260 W
- IP65
- EtherCAT 1 kHz.
기술 사양
| 물리 사양 | |
| 무게 | 21 kg |
|---|---|
| 가반하중 | 7 kg |
| 도달거리 | 1.08 m |
| 반복 정밀도 | ±0.02 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
기술 사양
| 물리 사양 | |
| 무게 | 21 kg |
|---|---|
| 가반하중 | 7 kg |
| 도달거리 | 1.08 m |
| 반복 정밀도 | ±0.02 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
이미지
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the SC7-1077?
ERSM SC7-1077 is a six-axis collaborative welding robot in the SC series for heavy-plate and sheet-metal fabrication. Documented on the OEM SC family page alongside SC6-1460 / SC15-1464 / SC20-2027 / SC7-1077.
Who makes the SC7-1077?
The SC7-1077 is made by RSM Machinery, a robotics company based in China.
How much does the SC7-1077 cost?
RSM Machinery has not publicly announced pricing for the SC7-1077. You can enquire through RobotAIGeek for current pricing.
What is the SC7-1077 used for?
The SC7-1077 is designed for 머신 텐딩, 자재 취급, and 용접. It is used in 제조 settings.
What is the payload capacity of the SC7-1077?
The SC7-1077 has a payload capacity of 7 kg and a reach of 1.08 m.
How much does the SC7-1077 weigh?
The SC7-1077 weighs 21 kg.
How many degrees of freedom does the SC7-1077 have?
The SC7-1077 has 6 degrees of freedom.
