설명
SC6-1460은(는) RSM Machinery의 Industrial-Robot입니다. 머신 텐딩, 자재 취급, 용접 용도로 설계되었습니다. 주요 수치: 22 kg, 가반 하중 6 kg, 도달 범위 1460.7 mm, 6 자유도.

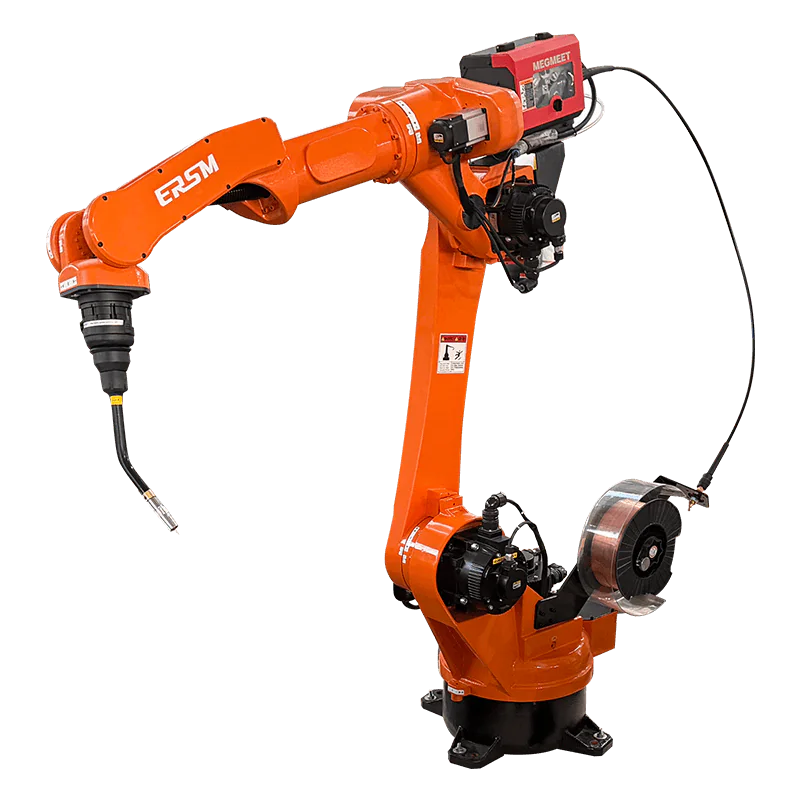

ERSM SC6-1460 is a six-axis collaborative welding robot in the SC series for heavy-plate and sheet-metal fabrication. Documented on the OEM SC family page alongside SC6-1460 / SC15-1464 / SC20-2027 / SC7-1077.
주요 기능
- ERSM SC-series collaborative welding robot — model SC6-1460. OEM publishes all SC SKUs (SC7-1077, SC6-1460, SC15-1464, SC20-2027) in one Technical Parameters table on the SC6-1460 family product page
- values below are the SC6-1460 column only (not sibling columns). Six-axis cobot for heavy-plate and sheet-metal welding with arc tracking, multi-layer multi-pass, and swing fixed-point arc
- drag-and-drop / teach-handle programming
- fence-free ISO 10218-1 collaboration with force/collision stop. Specs for SC6-1460: max working radius 1460.7 mm
- payload 6.0 kg
- repeat positioning ±0.05 mm
- tool-end max speed 3000 mm/s
- body weight 22.0 kg
- rated power 550 W
- IP65
- EtherCAT 1 kHz.
기술 사양
검증됨| 물리 사양 | |
| 무게 | 22 kg |
|---|---|
| 가반하중 | 6 kg |
| 도달거리 | 1.46 m |
| 반복 정밀도 | ±0.05 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 22 kg |
|---|---|
| 가반하중 | 6 kg |
| 도달거리 | 1.46 m |
| 반복 정밀도 | ±0.05 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
이미지
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the SC6-1460?
ERSM SC6-1460 is a six-axis collaborative welding robot in the SC series for heavy-plate and sheet-metal fabrication. Documented on the OEM SC family page alongside SC6-1460 / SC15-1464 / SC20-2027 / SC7-1077.
Who makes the SC6-1460?
The SC6-1460 is made by RSM Machinery, a robotics company based in China.
How much does the SC6-1460 cost?
RSM Machinery has not publicly announced pricing for the SC6-1460. You can enquire through RobotAIGeek for current pricing.
What is the SC6-1460 used for?
The SC6-1460 is designed for 머신 텐딩, 자재 취급, and 용접. It is used in 제조 settings.
What is the payload capacity of the SC6-1460?
The SC6-1460 has a payload capacity of 6 kg and a reach of 1.46 m.
How much does the SC6-1460 weigh?
The SC6-1460 weighs 22 kg.
How many degrees of freedom does the SC6-1460 have?
The SC6-1460 has 6 degrees of freedom.
