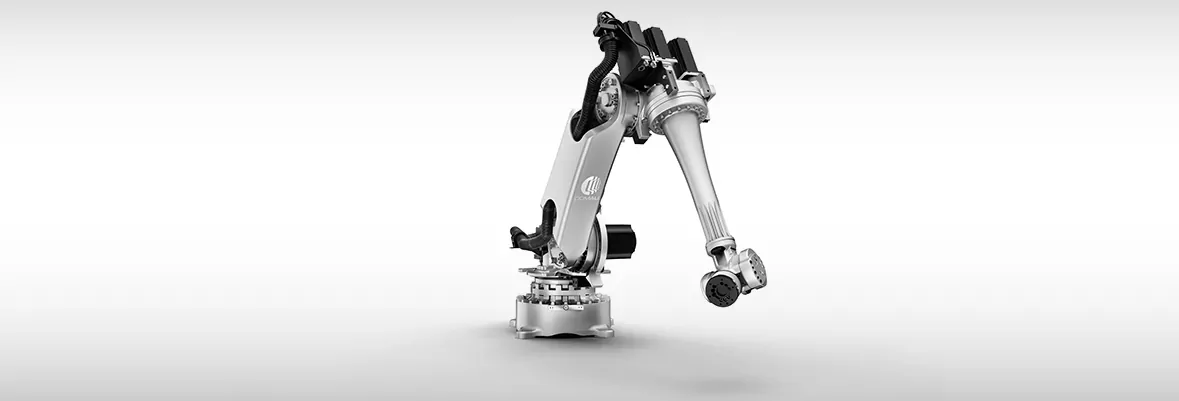

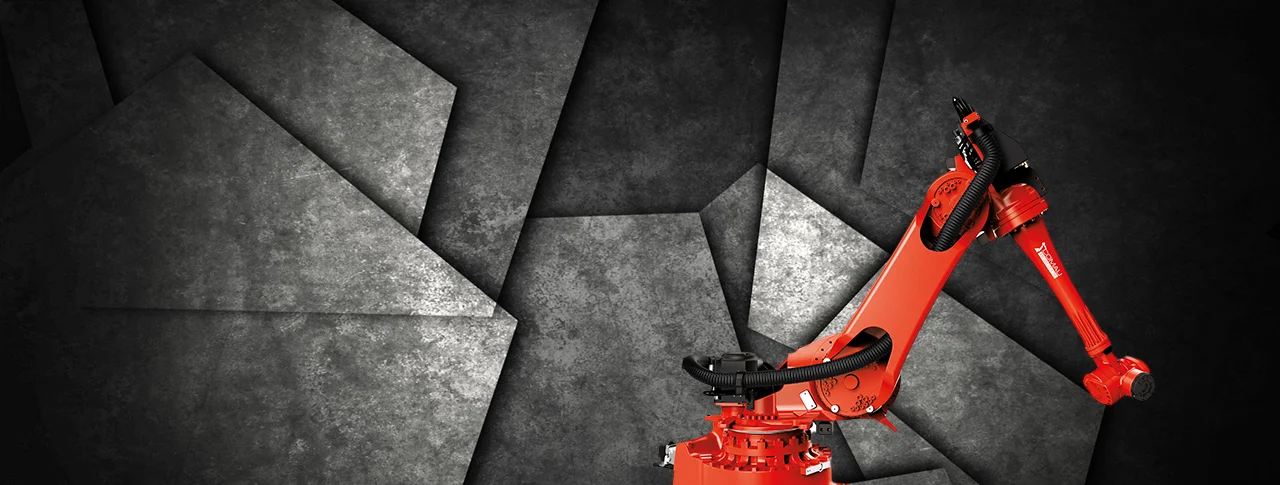

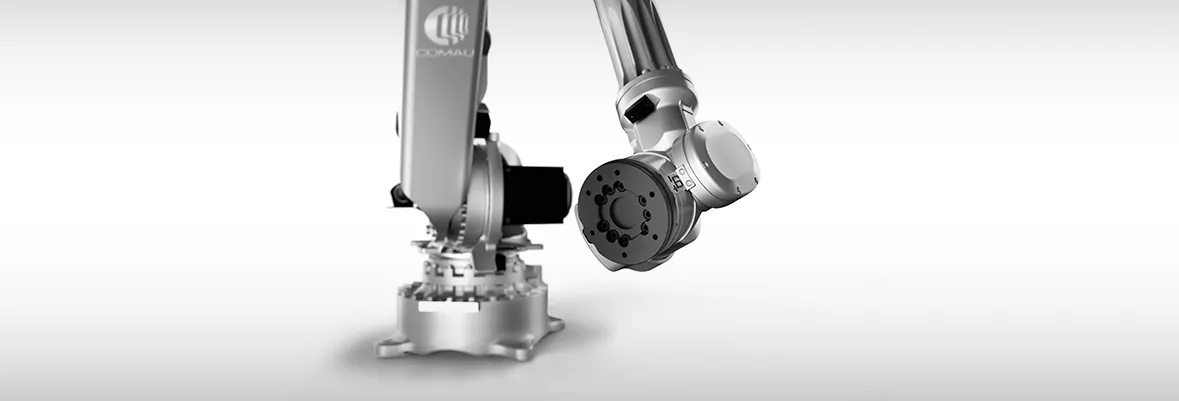

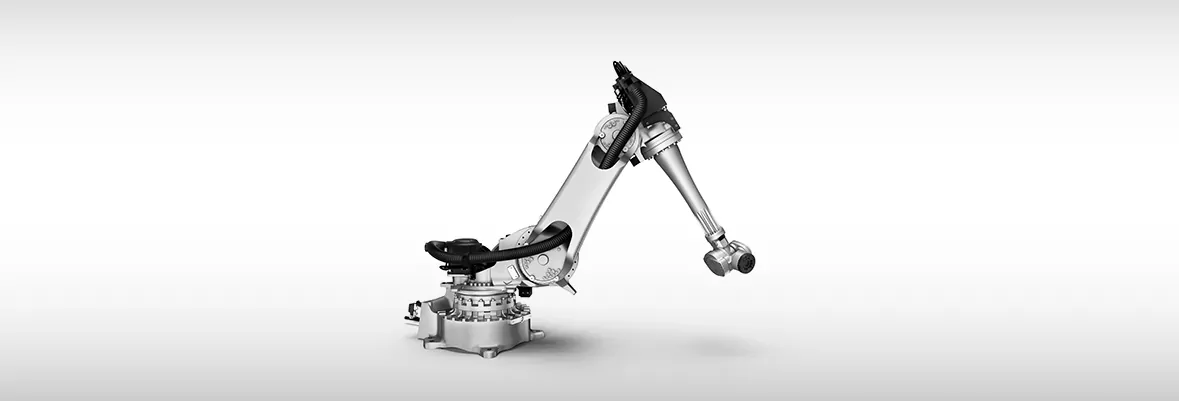

Comau's NJ-60-2.2 is a stationary industrial arm built for factory automation, supporting collaborative and mobile robotics integration across manufacturing environments.
주요 기능
- Comau NJ-60-2.2 is a six-axis industrial robot for manufacturing, handling and welding duty, engineered for high uptime and a compact installed footprint
- Technical specifications (Comau datasheet): maximum wrist payload 60 kg
- additional forearm load 20 kg
- maximum horizontal reach 2258 mm
- repeatability +/-0.06 mm
- robot weight 645 kg
- 6 axes
- protection IP65 / IP67
- mounting Floor / Ceiling / Sloping (max 45°)
기술 사양
검증됨| 물리 사양 | |
| 무게 | 645 kg |
|---|---|
| 가반하중 | 60 kg |
| 도달거리 | 2.26 m |
| 반복 정밀도 | ±0.06 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
| 작동 환경 | IP65 / IP67 |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 645 kg |
|---|---|
| 가반하중 | 60 kg |
| 도달거리 | 2.26 m |
| 반복 정밀도 | ±0.06 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
| 조작 능력 | 높음 |
| 작동 환경 | IP65 / IP67 |
이미지
martti
martti
martti
martti이미지 기여
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the NJ-60-2.2?
Comau's NJ-60-2.2 is a stationary industrial arm built for factory automation, supporting collaborative and mobile robotics integration across manufacturing environments.
Who makes the NJ-60-2.2?
The NJ-60-2.2 is made by Comau, a robotics company based in Italy.
How much does the NJ-60-2.2 cost?
Comau has not publicly announced pricing for the NJ-60-2.2. You can enquire through RobotAIGeek for current pricing.
What is the NJ-60-2.2 used for?
The NJ-60-2.2 is designed for 피킹. It is used in 제조 settings.
What is the payload capacity of the NJ-60-2.2?
The NJ-60-2.2 has a payload capacity of 60 kg and a reach of 2.26 m.
How much does the NJ-60-2.2 weigh?
The NJ-60-2.2 weighs 645 kg.
How many degrees of freedom does the NJ-60-2.2 have?
The NJ-60-2.2 has 6 degrees of freedom.
