설명

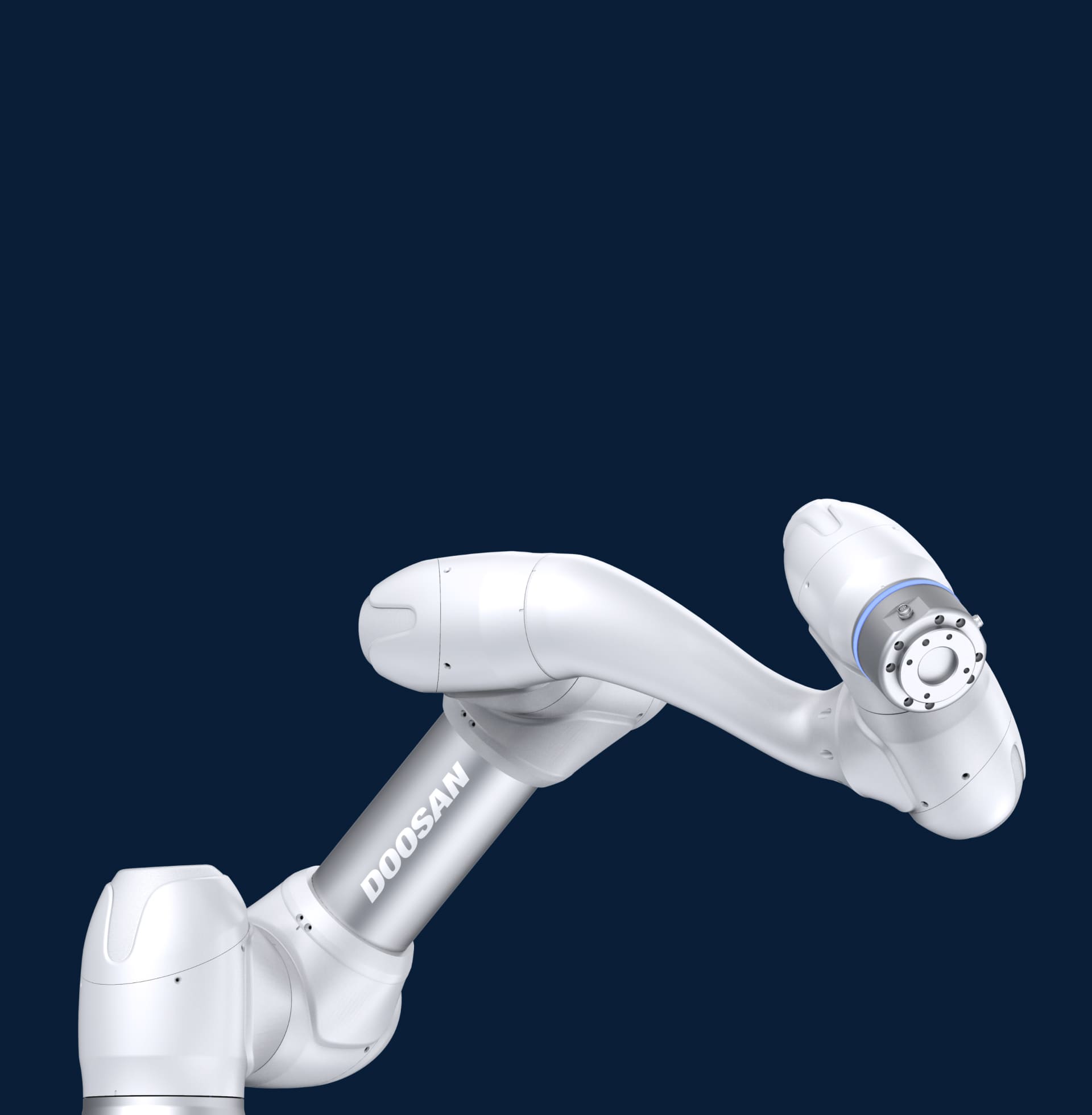

M0609 is Doosan's compact Masterpiece-series cobot with six joint torque sensors for high collision sensitivity and dexterous force control in a 6 kg / 900 mm envelope.
주요 기능
- 6 kg payload
- 900 mm reach
- ±0.03 mm repeatability
- 27.5 kg weight
- 6-axis
- IP54
- Six high-tech joint torque sensors (Masterpiece series)
- Any-orientation mount
- DART-Suite / Doosan Mate ecosystem for sophisticated collaborative tasks
기술 사양
검증됨| 물리 사양 | |
| 무게 | 27.5 kg |
|---|---|
| 가반하중 | 6 kg |
| 도달거리 | 900 mm |
| 반복 정밀도 | ±0.03 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 27.5 kg |
|---|---|
| 가반하중 | 6 kg |
| 도달거리 | 900 mm |
| 반복 정밀도 | ±0.03 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
이미지
martti
이미지 기여
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the M0609?
M0609 is Doosan's compact Masterpiece-series cobot with six joint torque sensors for high collision sensitivity and dexterous force control in a 6 kg / 900 mm envelope.
Who makes the M0609?
The M0609 is made by Doosan Robotics, a robotics company based in South Korea.
How much does the M0609 cost?
Doosan Robotics has not publicly announced pricing for the M0609. You can enquire through RobotAIGeek for current pricing.
What is the M0609 used for?
The M0609 is designed for 조립, 머신 텐딩, 연마, and 용접. It is used in 자동차, 전자, and 제조 settings.
What is the payload capacity of the M0609?
The M0609 has a payload capacity of 6 kg and a reach of 900 mm.
How much does the M0609 weigh?
The M0609 weighs 27.5 kg.
How many degrees of freedom does the M0609 have?
The M0609 has 6 degrees of freedom.
