Guoxing RXR-Q200L

Shandong Guoxing Intelligent Technology
Mobile-RobotsChinaChina출시됨
Guoxing RXR-Q200L
비교
출처:
gxsuprobot.com
산업:
에너지보안·순찰
용도:
점검운반Flood drainagebasement and underpass dewateringinternal drainage and water supplydisaster response water management
가격:
미공개

설명

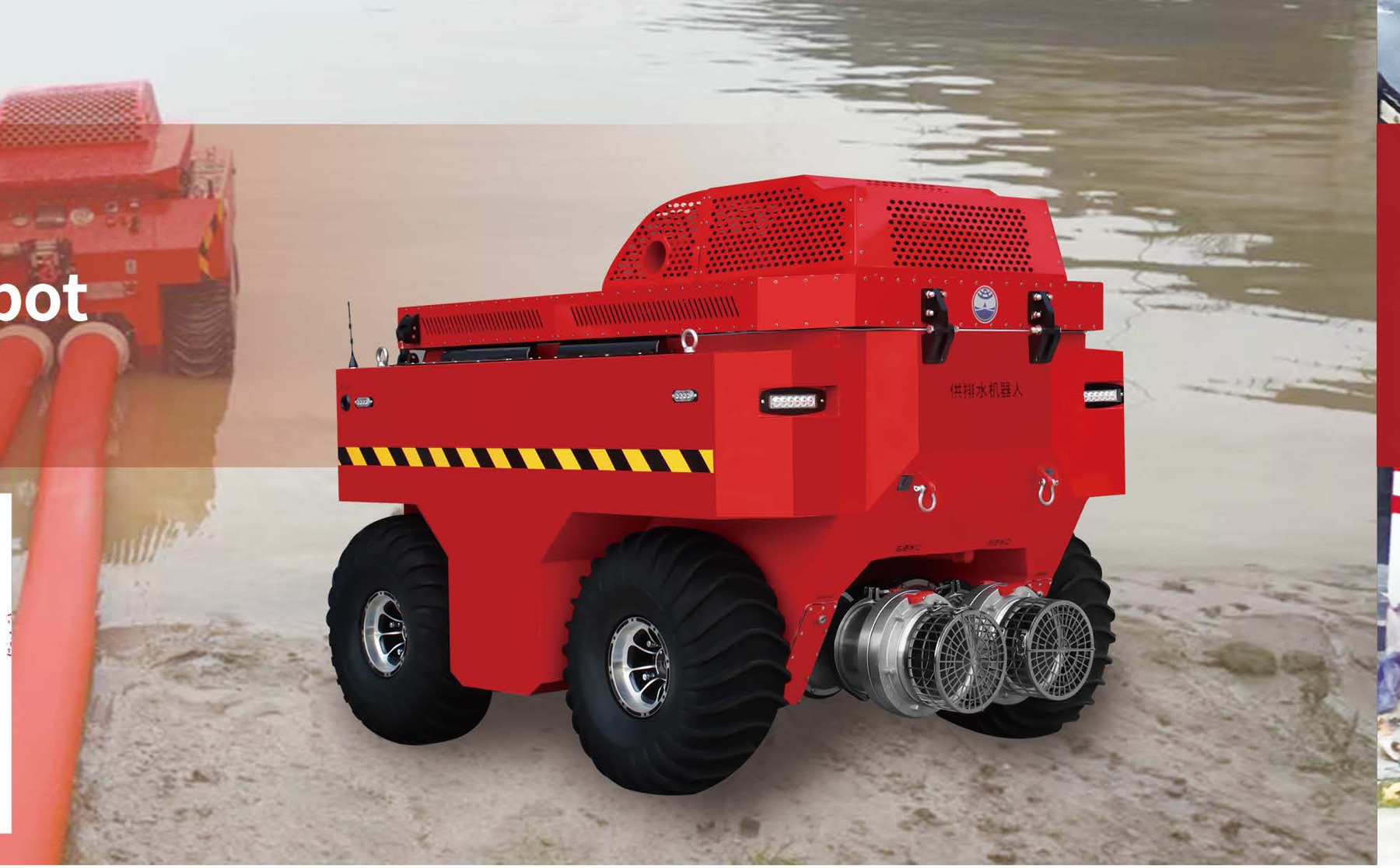

The RXR-Q200L is a pump on wheels that can swim. Its amphibious all-terrain wheeled chassis travels on muddy and low-lying roads and into water, and its dual-row high-flow axial pumps move up to 720 cubic metres an hour — 200 litres a second — lifting six metres and drawing from as shallow as 220 mm, or 120 mm with the interchangeable elbows fitted. That last figure is what makes it useful in a flooded basement or underpass where the water is too shallow for a conventional pump to prime. It drags its own hoses up to 300 metres into flooded areas, so the machine goes to the water rather than the crew carrying suction lines in. An imported engine and hydraulic motor drive it, the turning radius is extremely small for on-the-spot turning, and it handles particles up to 25 mm so debris-laden flood water does not block it.

주요 기능

  • Amphibious all-terrain wheeled drive, suitable for both land and water
  • Under 2100 x 1400 x 1300 mm and under 850 kg
  • Dual-row high-flow axial pumps with a maximum flow rate of 720 m³/h, equal to 200 L/s
  • Drainage lift of 6 metres or more and draft depth of 500 mm or more
  • Minimum water intake depth of 220 mm, reduced to 120 mm with the interchangeable elbows fitted
  • Maximum particle diameter of 25 mm for debris-laden water
  • Capable of directly dragging water hoses into flooded areas up to 300 metres away
  • Imported engine and hydraulic motor with hydraulic power unit and hydraulic piping system
  • Operating speed of 1.5 m/s or more
  • maximum obstacle crossing 220 mm or more
  • maximum climbing 60% or more
  • Traction of 4 kN or more
  • braking distance 0.3 m or less
  • straight-line deviation 3% or less
  • Extremely small turning radius allowing on-the-spot turning
  • Working time of 5 hours or more
  • remote control distance 200 m
  • IP66 protection with upper IP54
  • Compact and lightweight, compatible with existing water supply and drainage equipment

기술 사양

물리 사양
무게850 kg
크기L 2.1 m × W 1.4 m × H 1.3 m
이동성
이동 방식바퀴형
속도5.4 km/h
작동 환경Land and water, muddy and low-lying roads, flooded basements; IP66 with upper IP54
액추에이터Amphibious all-terrain wheeled chassis with an imported engine, hydraulic power unit and dual-row high-flow axial pumps
전원
배터리 지속 시간≥5 h
제조사 출처서드파티 출처출처 없음출처 상태는 이 로봇에 등록된 출처를 기준으로 합니다.

자주 묻는 질문

What is the Guoxing RXR-Q200L?

The RXR-Q200L is a pump on wheels that can swim. Its amphibious all-terrain wheeled chassis travels on muddy and low-lying roads and into water, and its dual-row high-flow axial pumps move up to 720 cubic metres an hour — 200 litres a second — lifting six metres and drawing from as shallow as 220 mm, or 120 mm with the…

Who makes the Guoxing RXR-Q200L?

The Guoxing RXR-Q200L is made by Shandong Guoxing Intelligent Technology, a robotics company based in China.

How much does the Guoxing RXR-Q200L cost?

Shandong Guoxing Intelligent Technology has not publicly announced pricing for the Guoxing RXR-Q200L. You can enquire through RobotAIGeek for current pricing.

What is the Guoxing RXR-Q200L used for?

The Guoxing RXR-Q200L is designed for 점검, 운반, flood drainage, and basement and underpass dewatering. It is used in 에너지 and 보안·순찰 settings.

How much does the Guoxing RXR-Q200L weigh?

The Guoxing RXR-Q200L weighs 850 kg.

How fast is the Guoxing RXR-Q200L?

The Guoxing RXR-Q200L can move at speeds of up to 5.4 km/h.

What is the battery life of the Guoxing RXR-Q200L?

The Guoxing RXR-Q200L runs for ≥5 h on a charge.
