설명

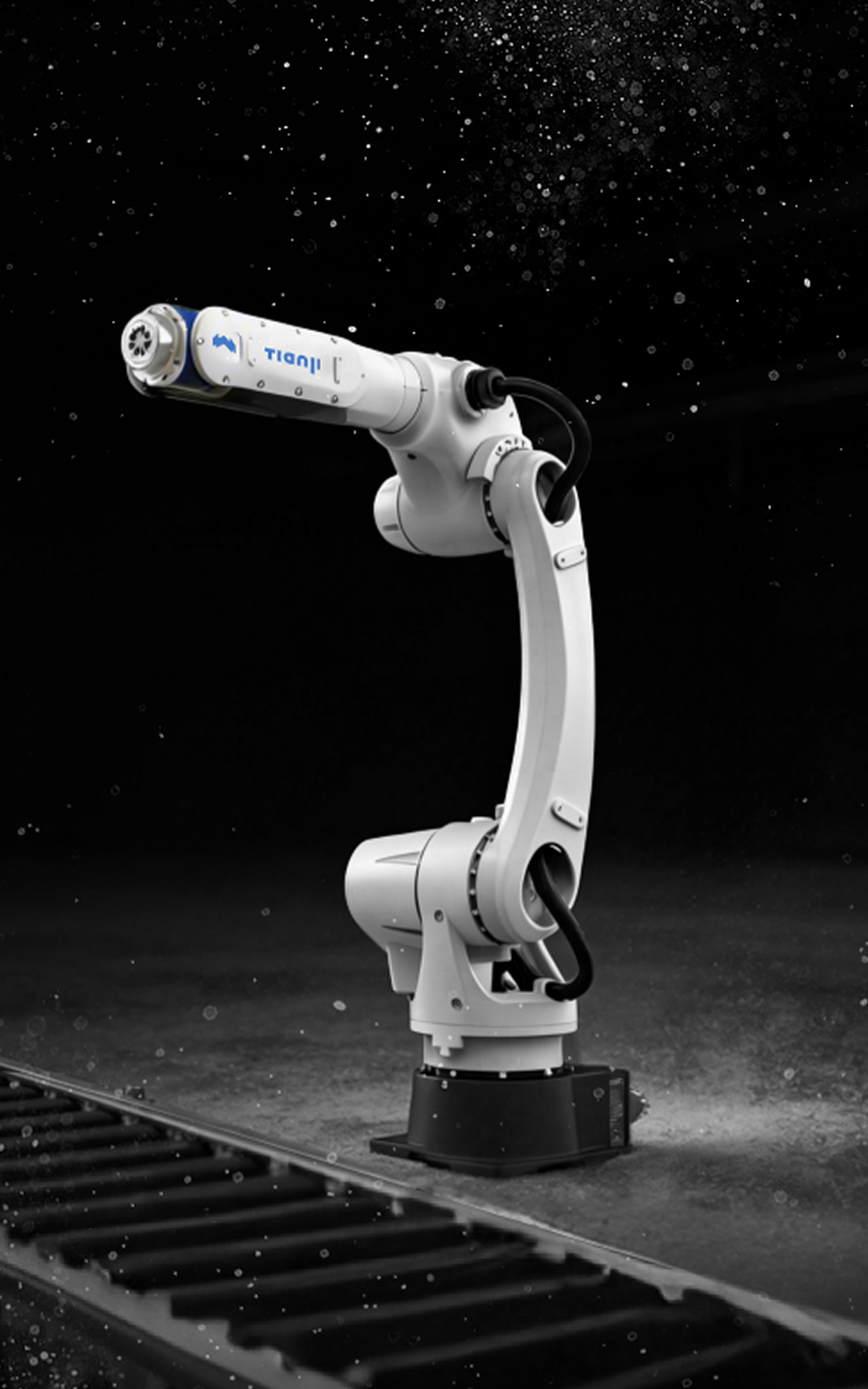

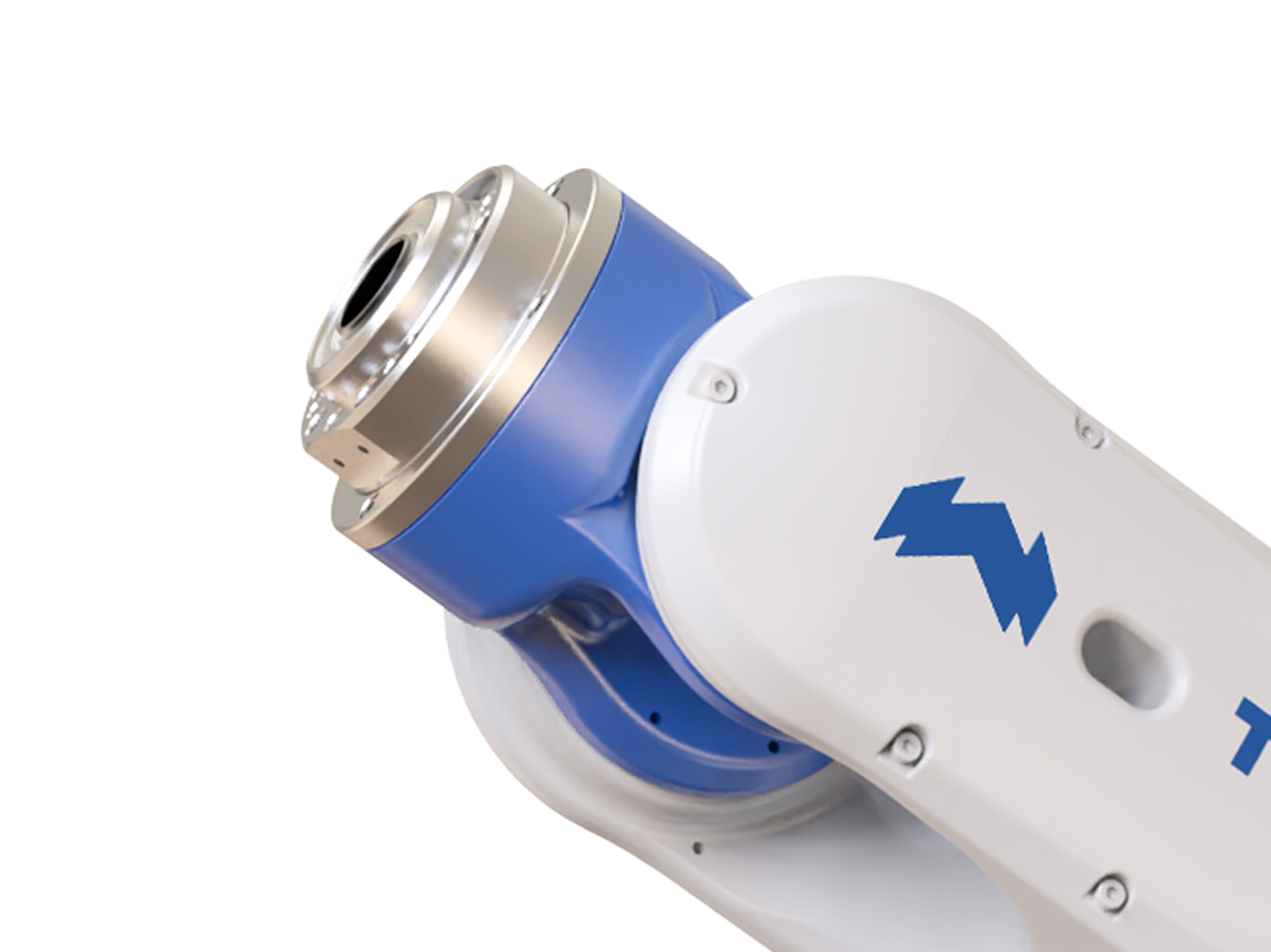

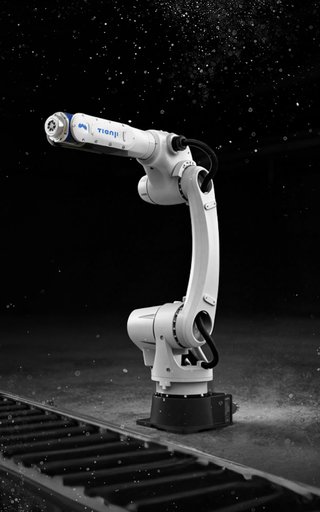

The EVO12 is a compact six-axis industrial robot built on Tianji's in-house motion-control system from Tianji. It handles 12 kg over a 1450 mm reach with ±0.03 mm repeatability, weighs 165 kg, and is rated wrist IP67 / body IP65 for dust, damp and oil-mist environments. It can be floor, wall, tilt or ceiling mounted.
주요 기능
- 12 kg payload over 1450 mm reach
- ±0.03 mm repeatability
- wrist IP67 / body IP65 protection rating
- 165 kg body weight
- Floor, wall, tilt or ceiling mounting
- Tianji in-house motion and force control system
기술 사양
검증됨| 물리 사양 | |
| 무게 | 165 kg |
|---|---|
| 가반하중 | 12 kg |
| 도달거리 | 1.45 m |
| 반복 정밀도 | ±0.03 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 165 kg |
|---|---|
| 가반하중 | 12 kg |
| 도달거리 | 1.45 m |
| 반복 정밀도 | ±0.03 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 6 |
이미지
이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the EVO12?
The EVO12 is a compact six-axis industrial robot built on Tianji's in-house motion-control system from Tianji. It handles 12 kg over a 1450 mm reach with ±0.03 mm repeatability, weighs 165 kg, and is rated wrist IP67 / body IP65 for dust, damp and oil-mist environments. It can be floor, wall, tilt or ceiling mounted.
Who makes the EVO12?
The EVO12 is made by Tianji Gento, a robotics company based in China.
How much does the EVO12 cost?
Tianji Gento has not publicly announced pricing for the EVO12. You can enquire through RobotAIGeek for current pricing.
What is the EVO12 used for?
The EVO12 is designed for 조립, 자재 취급, and 피킹. It is used in 자동차, 전자, and 제조 settings.
What is the payload capacity of the EVO12?
The EVO12 has a payload capacity of 12 kg and a reach of 1.45 m.
How much does the EVO12 weigh?
The EVO12 weighs 165 kg.
How many degrees of freedom does the EVO12 have?
The EVO12 has 6 degrees of freedom.
