PsiBot V1

説明

PsiBot V1はPsiBotのHumanoidです。 ピック＆プレース、Order picking and sorting、retail shelf handling向けに設計されています。 主な数値：稼働時間 480 分、可搬質量 5 kg、リーチ 683 mm、20 自由度。

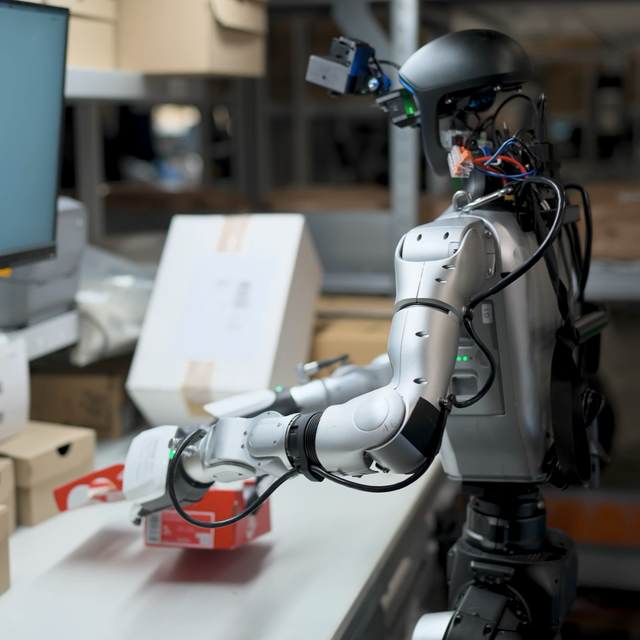

PsiBot V1 — presented at WAIC 2026 as the ψ-SynRobot — is a wheeled humanoid built for real-world logistics, retail and industrial work, and driven by PsiBot's in-house PSI foundation model. Standing under 180 cm on a four-omni-wheel chassis, it pairs two 7-DoF force-controlled arms (5 kg load, ±0.1 mm positioning accuracy, EtherCAT communication and braked joints) with a 2-DoF neck and 2-DoF waist over a 1-DoF knee and 1-DoF ankle column. Perception is deliberately dense: binocular RGB, three fisheye cameras and RGBD in the head for 3D reconstruction and 360° panoramic depth, a front-facing chest RGBD with waist IMU, RGBD at each wrist, and two multi-line LiDARs on the chassis. An NVIDIA Thor computing platform on 5G or Wi-Fi runs the models, and the machine works more than 8 hours per charge with cable or automatic return charging.
