説明
FP 3はAFORMICのIndustrial-Robotです。 構内物流、リフティング、マテリアルハンドリング向けに設計されています。 主な数値：200 kg、可搬質量 300 kg。

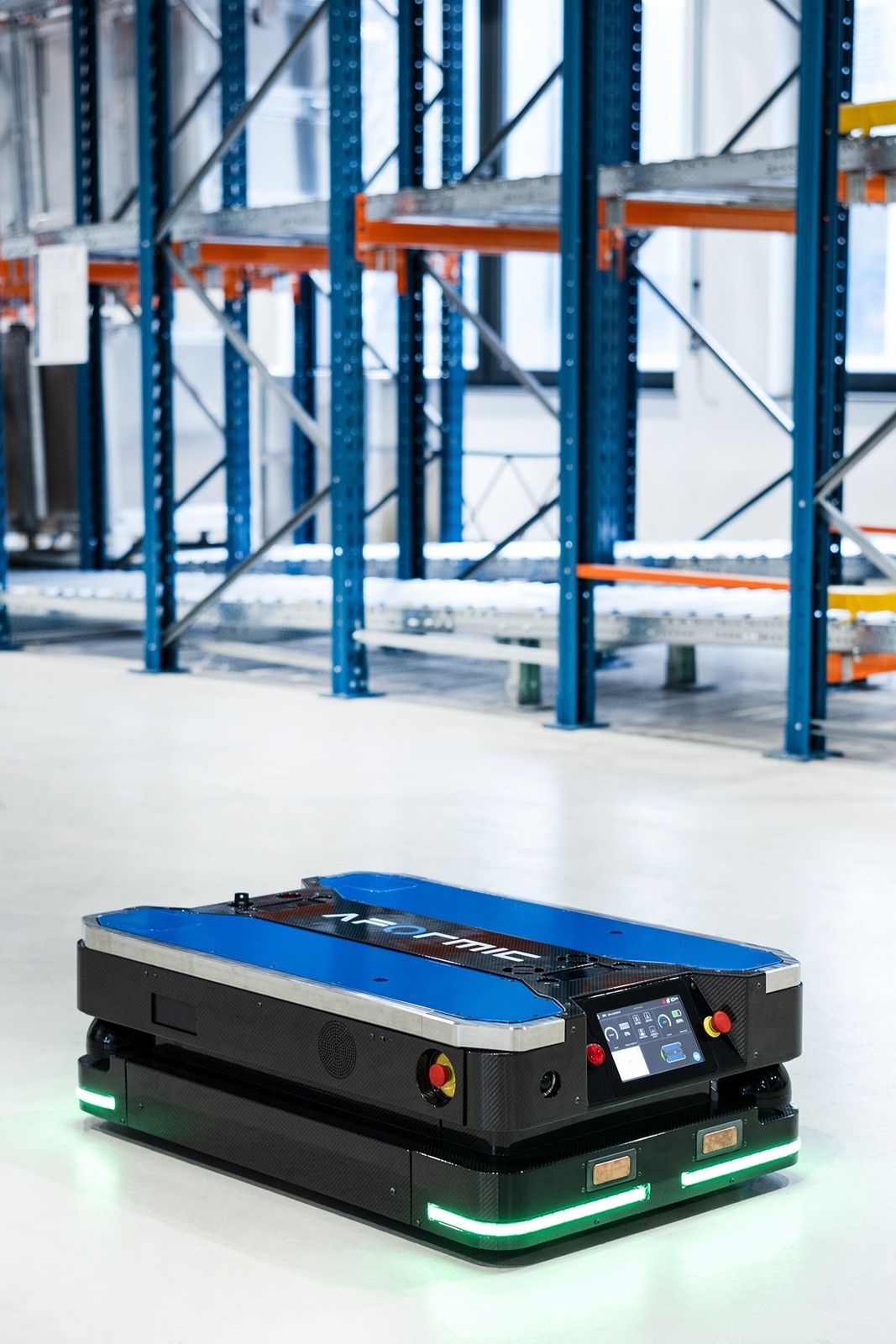

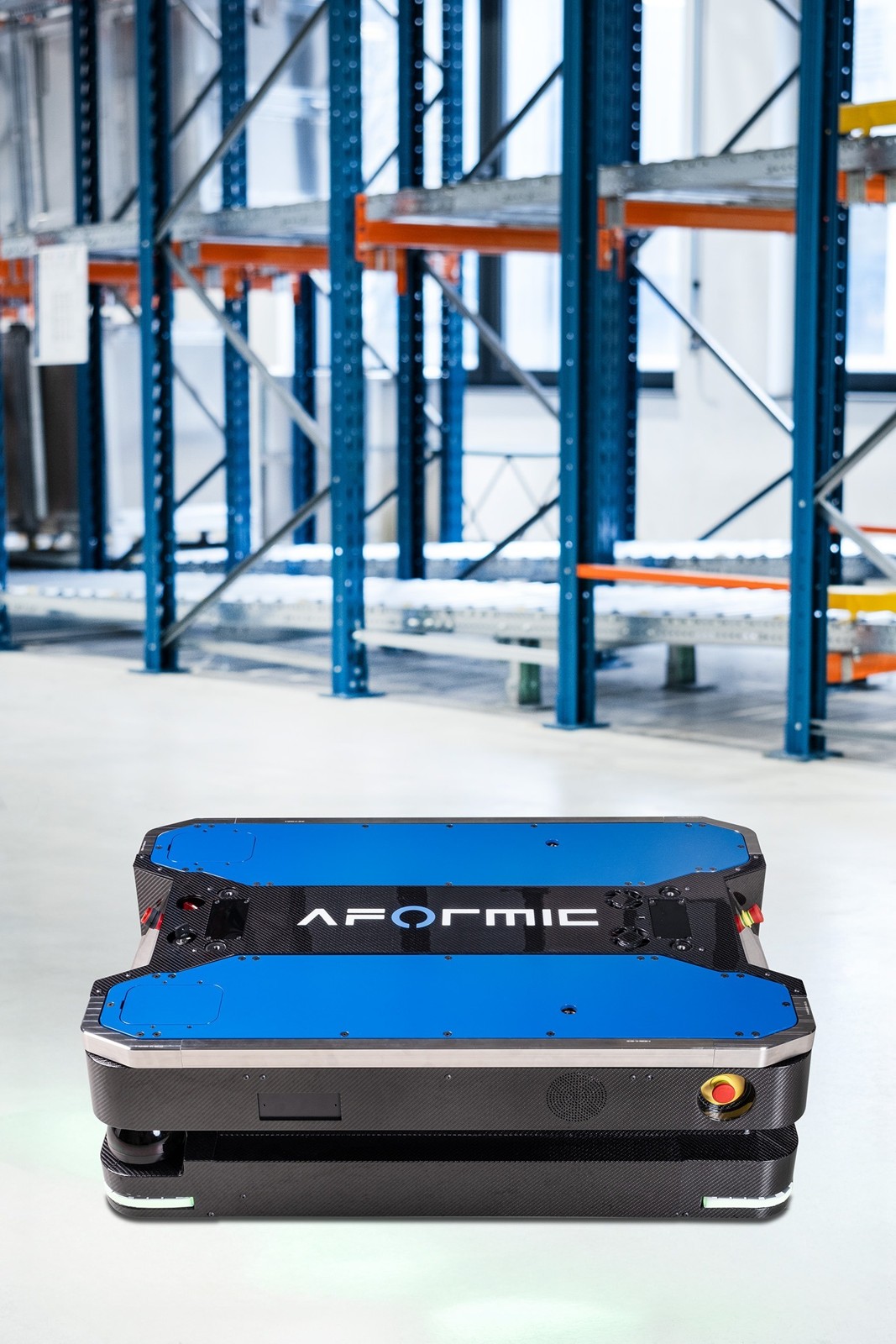

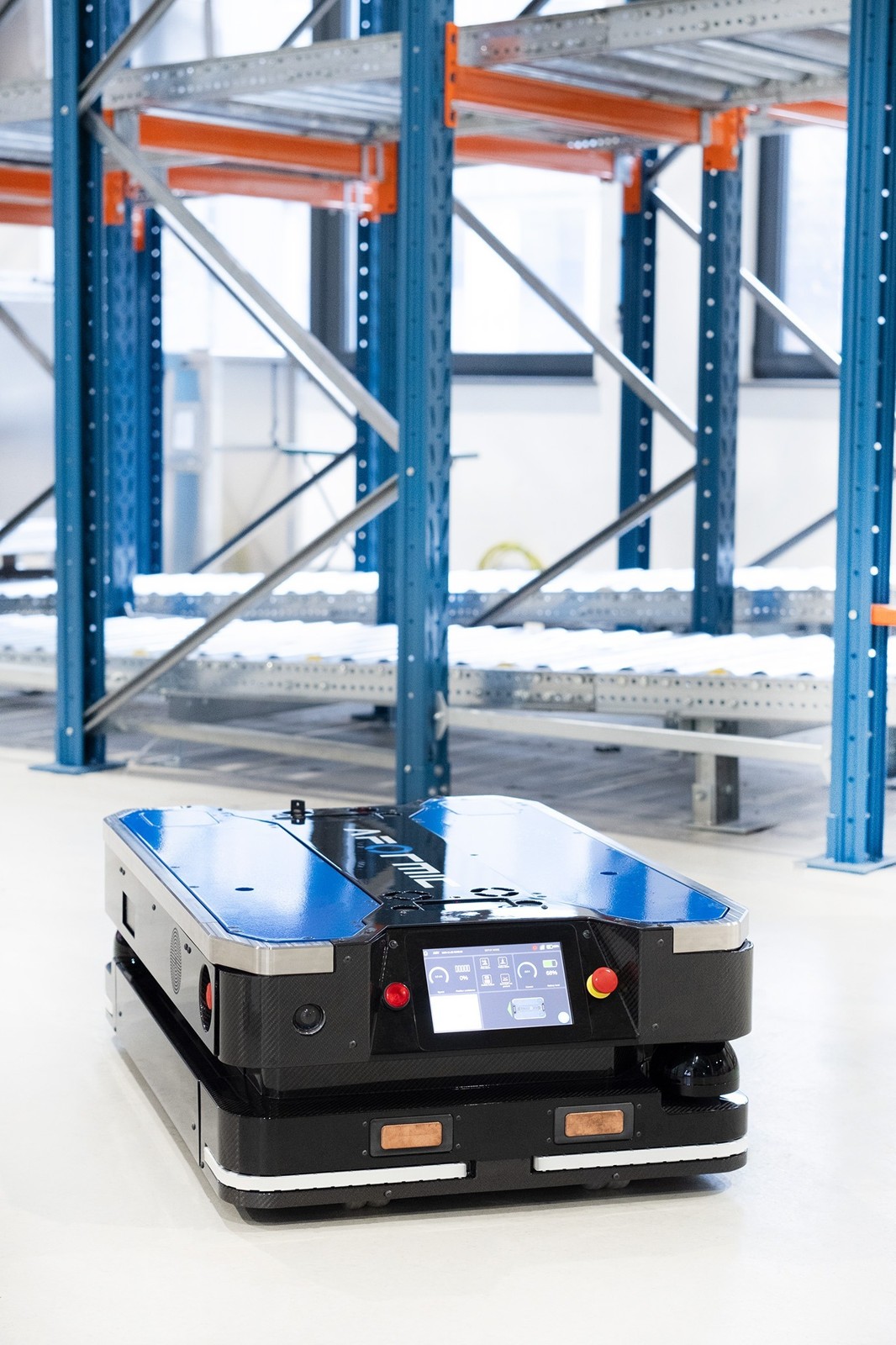

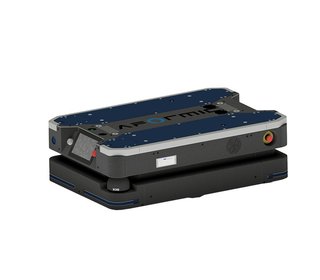

FP 3 is AFORMIC's small modular underride robot, with a quick-swap interface so different top modules can be fitted for different jobs. It carries 300 kg and lifts 25 mm. It measures 900 x 600 x 300 mm, weighs 200 kg, carries 300 kg, lifts 25 mm and travels at up to 2 m/s with +/-10 mm positioning accuracy. Drive: differential (2 x 0.75 kW). It navigates by lidar SLAM using safety laser scanners with a 360-degree field of view, and is managed by AFORMIC's QURSOR fleet platform, which handles task allocation, path planning, traffic and KANBAN workflows. Power comes from a Li-Ion 51 Ah, 48 V battery.
特長
- Payload: 300 kg (660 lb)
- Dimensions (LxWxH): 900 x 600 x 300 mm (35.4 × 23.6 × 11.8 in)
- Lifting height: 25 mm (1 in)
- Weight: 200 kg (440 lb)
- Max speed: 2.0 m/s (6.6 ft/s)
- Drive: differential
- drive power 2 x 0.75 kW
- Positioning accuracy +/- 1.0 cm (0.4 in)
- Safety: Laser scanner field of view: 360° Safety scanners:
- Sick Micro Scanners: 2 units Emergency push buttons: 4 units Blue spot lamp: 2 units
- Battery: Li-Ion 51 Ah, 48 V
- Lidar SLAM navigation
- no floor tape, wires or markers
- Managed by the QURSOR fleet management platform
技術仕様
検証済み| 本体 | |
| 重量 | 200 kg |
|---|---|
| 寸法 | L 900 mm × W 600 mm × H 300 mm |
| 可搬重量 | 300 kg |
| 繰り返し精度 | ±10 mm |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 7.2 km/h |
| 使用環境 | Indoor factories and warehouses |
| アクチュエーター | differential (2 x 0.75 kW) |
| 電源 | |
| バッテリー駆動時間 | Li-Ion 51 Ah, 48 V |
| センシング・演算 | |
| センサー | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 接続性 | Wireless link to QURSOR fleet manager |
| ソフトウェア / AI | AFORMIC QURSOR fleet management |
ロボットフォーラム
フォーラムを読み込み中...
技術仕様
検証済み| 本体 | |
| 重量 | 200 kg |
|---|---|
| 寸法 | L 900 mm × W 600 mm × H 300 mm |
| 可搬重量 | 300 kg |
| 繰り返し精度 | ±10 mm |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 7.2 km/h |
| 使用環境 | Indoor factories and warehouses |
| アクチュエーター | differential (2 x 0.75 kW) |
| 電源 | |
| バッテリー駆動時間 | Li-Ion 51 Ah, 48 V |
| センシング・演算 | |
| センサー | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 接続性 | Wireless link to QURSOR fleet manager |
| ソフトウェア / AI | AFORMIC QURSOR fleet management |
画像
martti
martti
martti
martti投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the FP 3?
FP 3 is AFORMIC's small modular underride robot, with a quick-swap interface so different top modules can be fitted for different jobs. It carries 300 kg and lifts 25 mm. It measures 900 x 600 x 300 mm, weighs 200 kg, carries 300 kg, lifts 25 mm and travels at up to 2 m/s with +/-10 mm positioning accuracy.
Who makes the FP 3?
The FP 3 is made by AFORMIC, a robotics company based in Poland.
How much does the FP 3 cost?
AFORMIC has not publicly announced pricing for the FP 3. You can enquire through RobotAIGeek for current pricing.
What is the FP 3 used for?
The FP 3 is designed for 構内物流, リフティング, マテリアルハンドリング, and 搬送. It is used in 自動車, 倉庫・物流, and 製造 settings.
What is the payload capacity of the FP 3?
The FP 3 has a payload capacity of 300 kg.
How much does the FP 3 weigh?
The FP 3 weighs 200 kg.
How fast is the FP 3?
The FP 3 can move at speeds of up to 7.2 km/h.
