説明
FL 16はAFORMICのIndustrial-Robotです。 構内物流、積み込み、マテリアルハンドリング向けに設計されています。 主な数値：1350 kg、可搬質量 1600 kg。
FL 16 is AFORMIC's autonomous fork-over-leg pallet stacker, lifting loads to 1.6 m for stacking and rack loading in factories and warehouses. It measures 1984 x 1089 x 1900 mm, weighs 1350 kg, carries 1600 kg, lifts 1600 mm and travels at up to 1.2 m/s with +/-10 mm positioning accuracy. Drive: steerable traction wheel (1.5 kW). It navigates by lidar SLAM using safety laser scanners with a 360-degree field of view, and is managed by AFORMIC's QURSOR fleet platform, which handles task allocation, path planning, traffic and KANBAN workflows. Power comes from a Li-Ion 200 Ah, 24 V battery.
特長
- Payload: 1600 kg (3 527 lb)
- Dimensions (LxWxH): 1984 x 1089 x 1900 mm,
- Lifting height: 1600 mm (63 in)
- Weight: 1350 kg (2 976 lb)
- Max speed: 1.2 m/s (3,94 ft/s)
- Drive: steerable traction wheel
- drive power 1.5 kW
- Positioning accuracy +/- 1.0 cm (0.4 in)
- Safety: Laser scanner field of view: 360° Safety scanners:
- Sick Nano Scanners: 3 units Emergency push buttons: 3 units Blue spot lamp: 3 units One front and two rear safety bumpers
- Battery: Li-Ion 200 Ah, 24 V
- Lidar SLAM navigation
- no floor tape, wires or markers
- Managed by the QURSOR fleet management platform
技術仕様
検証済み| 本体 | |
| 重量 | 1350 kg |
|---|---|
| 寸法 | L 1.98 m × W 1.09 m × H 1.9 m |
| 可搬重量 | 1600 kg |
| 繰り返し精度 | ±10 mm |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 4.32 km/h |
| 使用環境 | Indoor factories and warehouses |
| アクチュエーター | steerable traction wheel (1.5 kW) |
| 電源 | |
| バッテリー駆動時間 | Li-Ion 200 Ah, 24 V |
| センシング・演算 | |
| センサー | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 接続性 | Wireless link to QURSOR fleet manager |
| ソフトウェア / AI | AFORMIC QURSOR fleet management |
ロボットフォーラム
フォーラムを読み込み中...
技術仕様
検証済み| 本体 | |
| 重量 | 1350 kg |
|---|---|
| 寸法 | L 1.98 m × W 1.09 m × H 1.9 m |
| 可搬重量 | 1600 kg |
| 繰り返し精度 | ±10 mm |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 4.32 km/h |
| 使用環境 | Indoor factories and warehouses |
| アクチュエーター | steerable traction wheel (1.5 kW) |
| 電源 | |
| バッテリー駆動時間 | Li-Ion 200 Ah, 24 V |
| センシング・演算 | |
| センサー | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 接続性 | Wireless link to QURSOR fleet manager |
| ソフトウェア / AI | AFORMIC QURSOR fleet management |

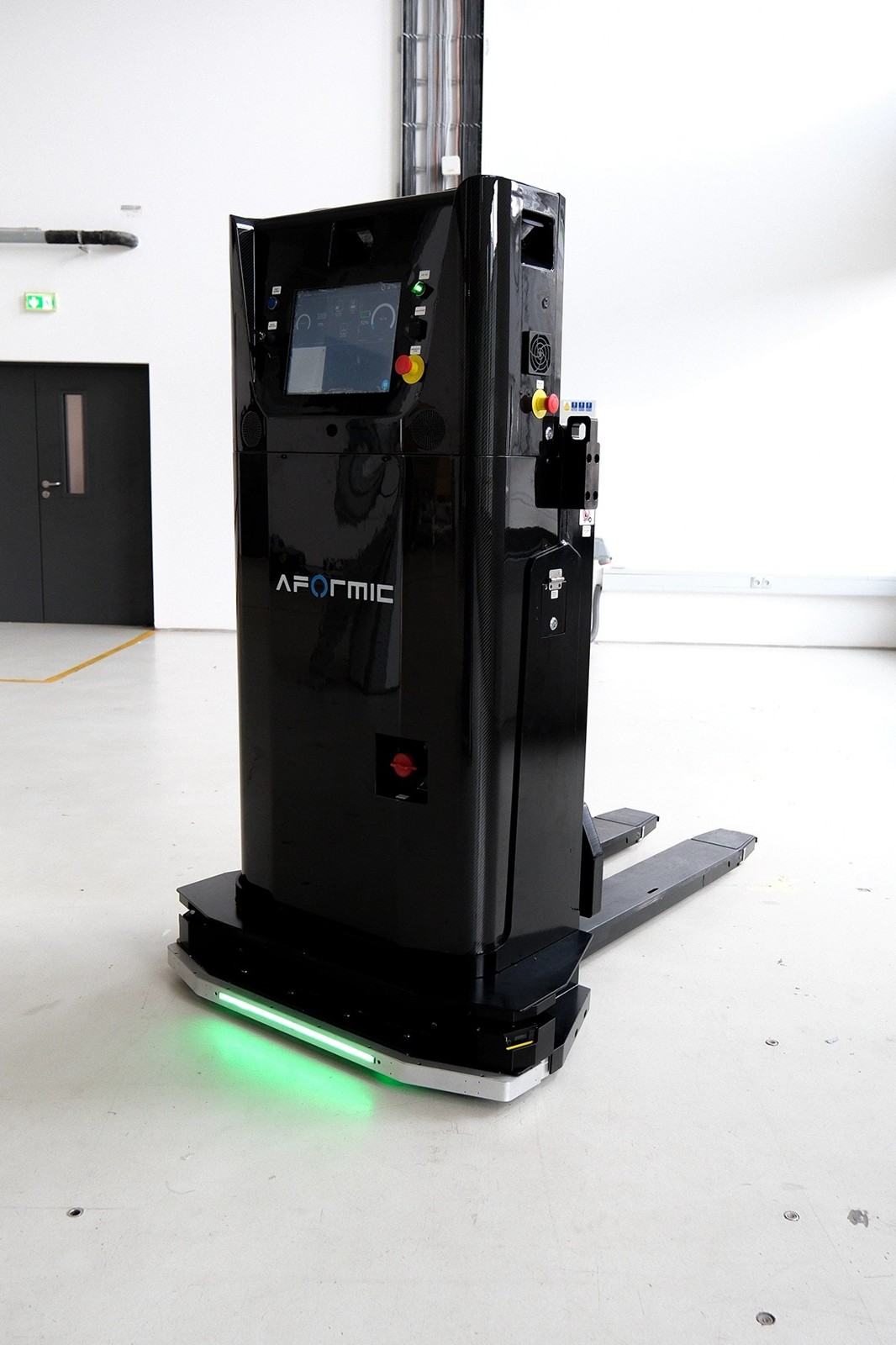

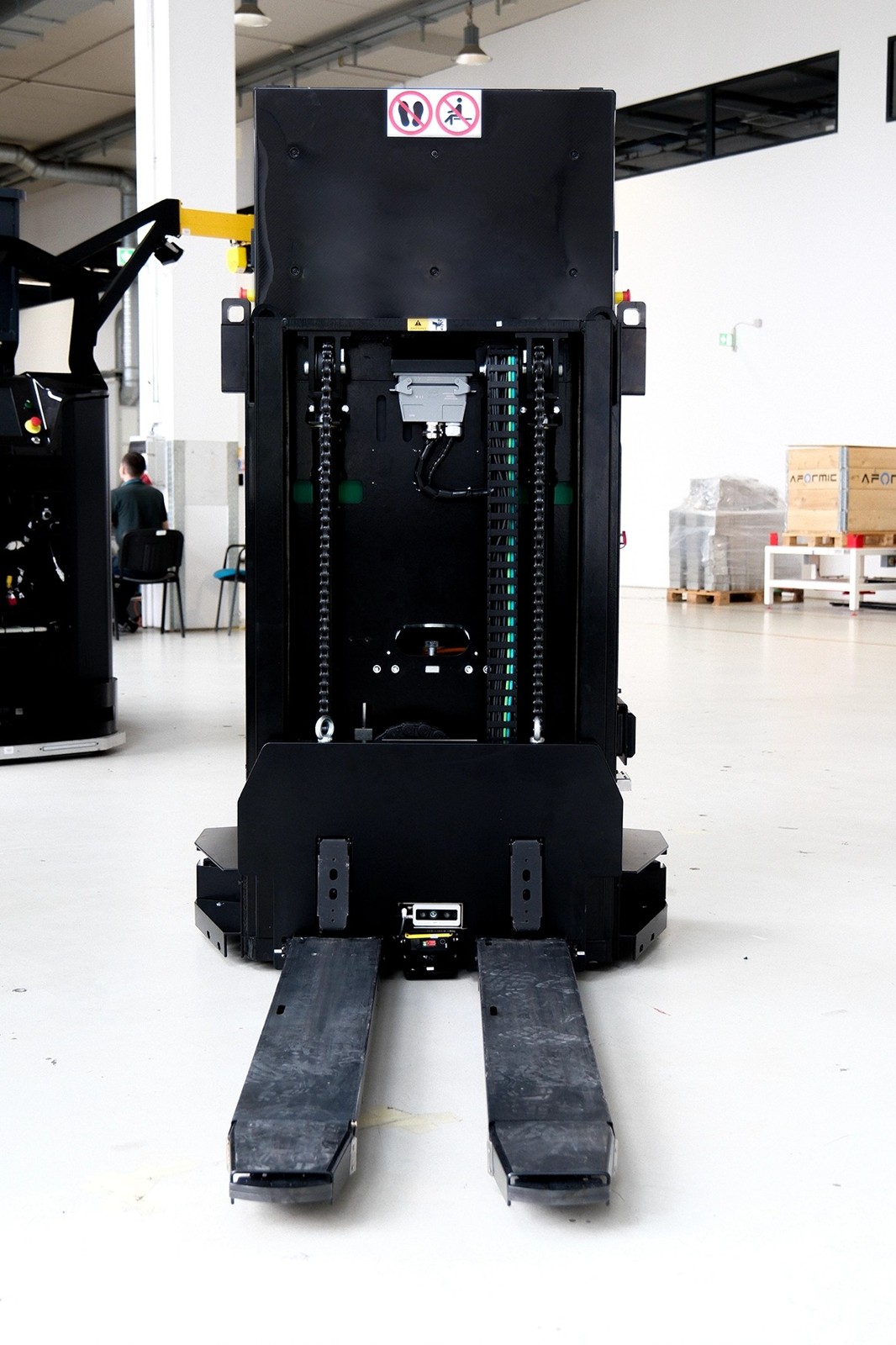

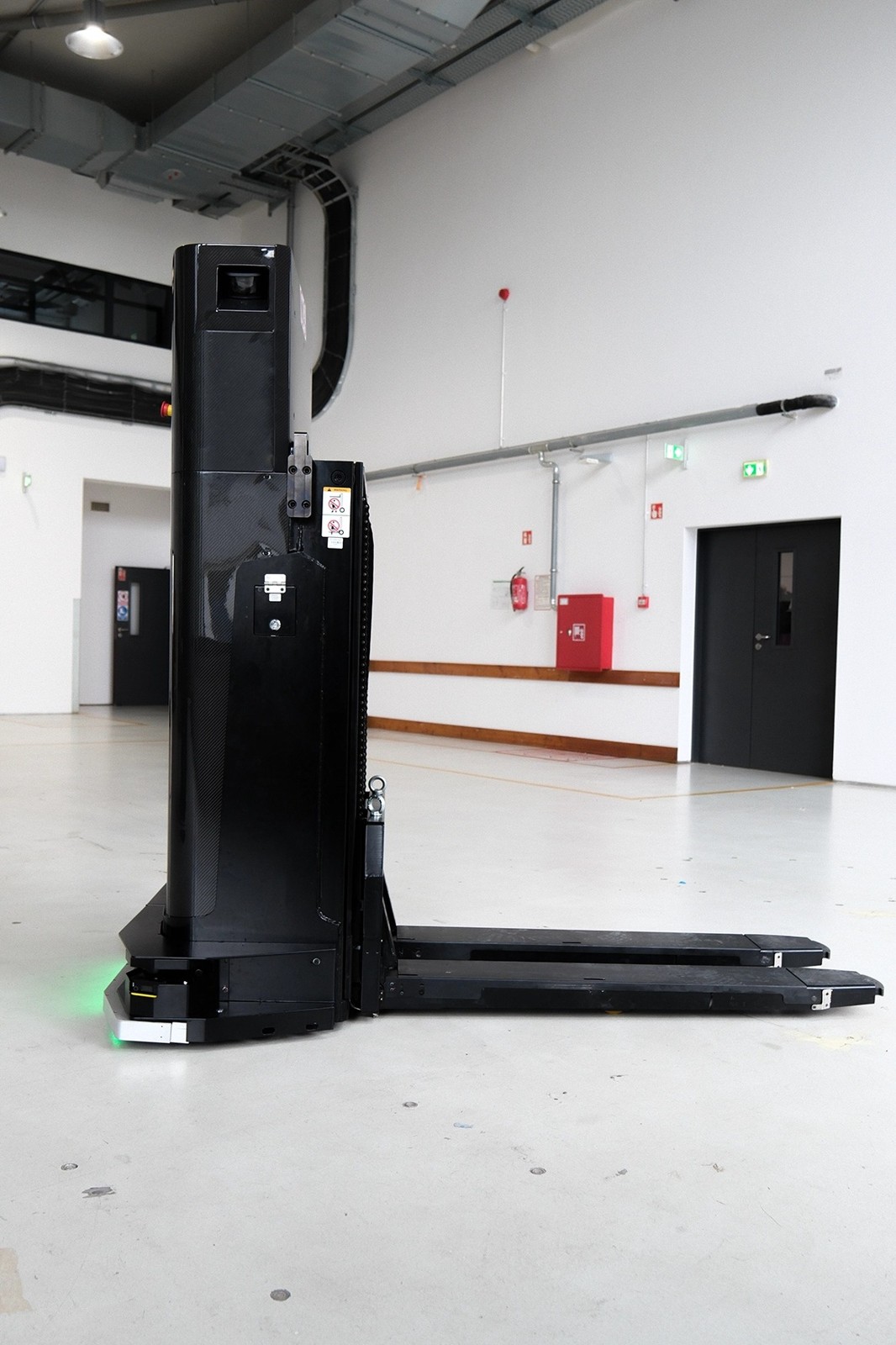

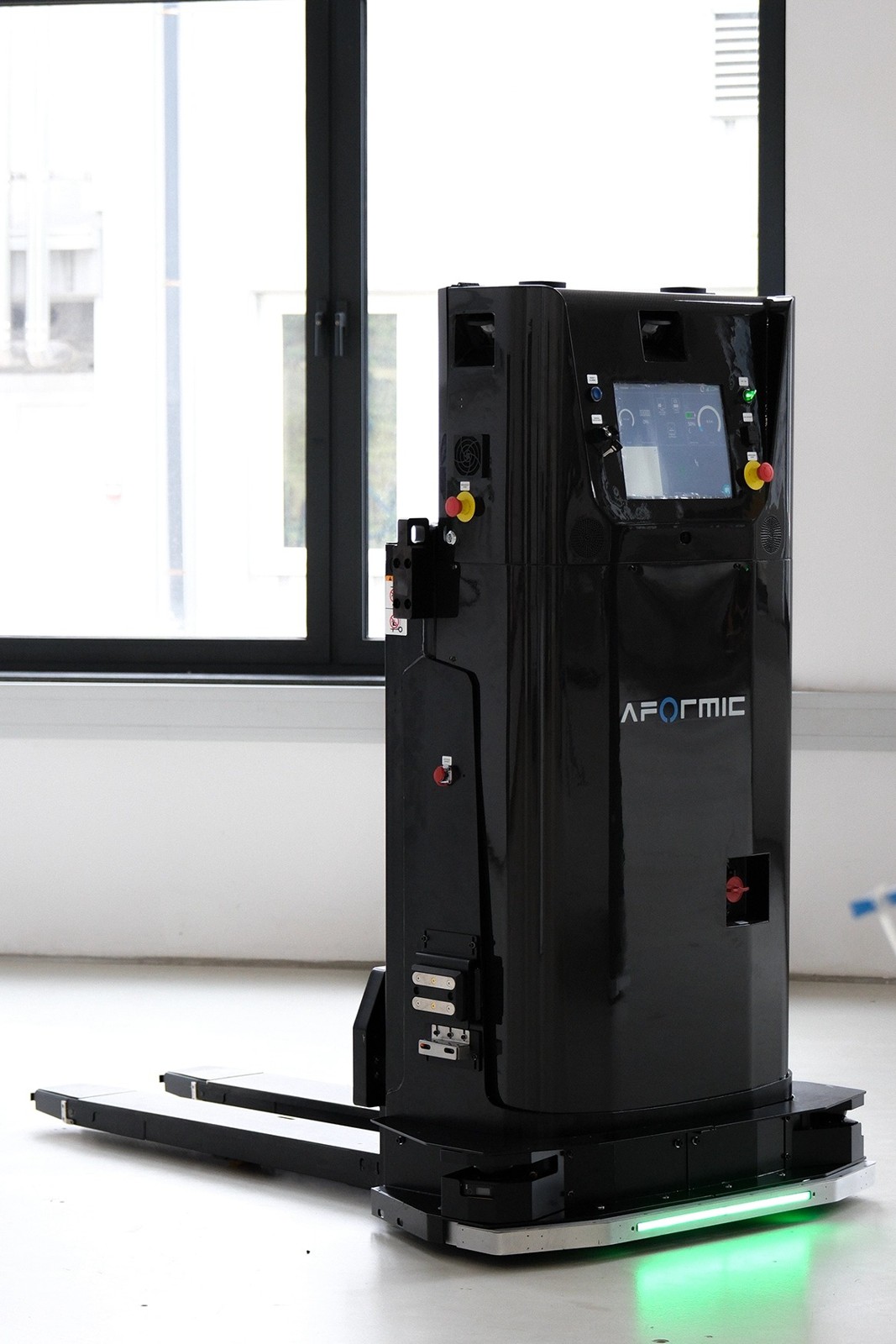

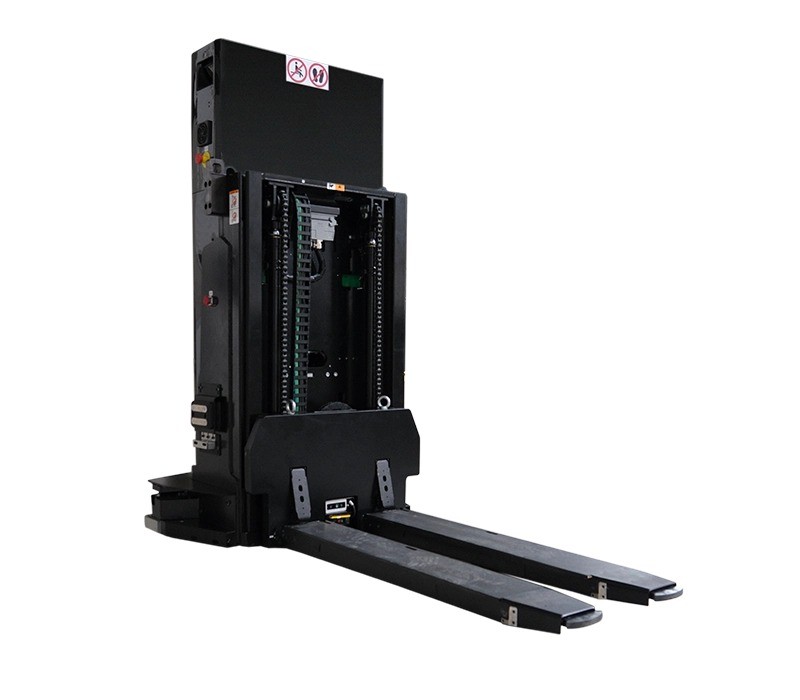

画像
martti
martti
martti
martti
martti
martti投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the FL 16?
FL 16 is AFORMIC's autonomous fork-over-leg pallet stacker, lifting loads to 1.6 m for stacking and rack loading in factories and warehouses. It measures 1984 x 1089 x 1900 mm, weighs 1350 kg, carries 1600 kg, lifts 1600 mm and travels at up to 1.2 m/s with +/-10 mm positioning accuracy.
Who makes the FL 16?
The FL 16 is made by AFORMIC, a robotics company based in Poland.
How much does the FL 16 cost?
AFORMIC has not publicly announced pricing for the FL 16. You can enquire through RobotAIGeek for current pricing.
What is the FL 16 used for?
The FL 16 is designed for 構内物流, 積み込み, マテリアルハンドリング, and パレット搬送. It is used in 自動車, 倉庫・物流, and 製造 settings.
What is the payload capacity of the FL 16?
The FL 16 has a payload capacity of 1,600 kg.
How much does the FL 16 weigh?
The FL 16 weighs 1,350 kg.
How fast is the FL 16?
The FL 16 can move at speeds of up to 4.32 km/h.
