説明
FC 30はAFORMICのIndustrial-Robotです。 構内物流、積み込み、マテリアルハンドリング向けに設計されています。 主な数値：2700 kg、可搬質量 1500 kg。

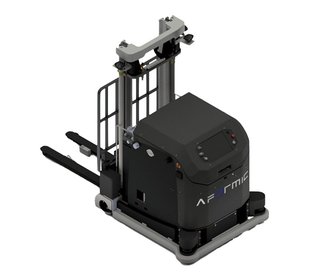

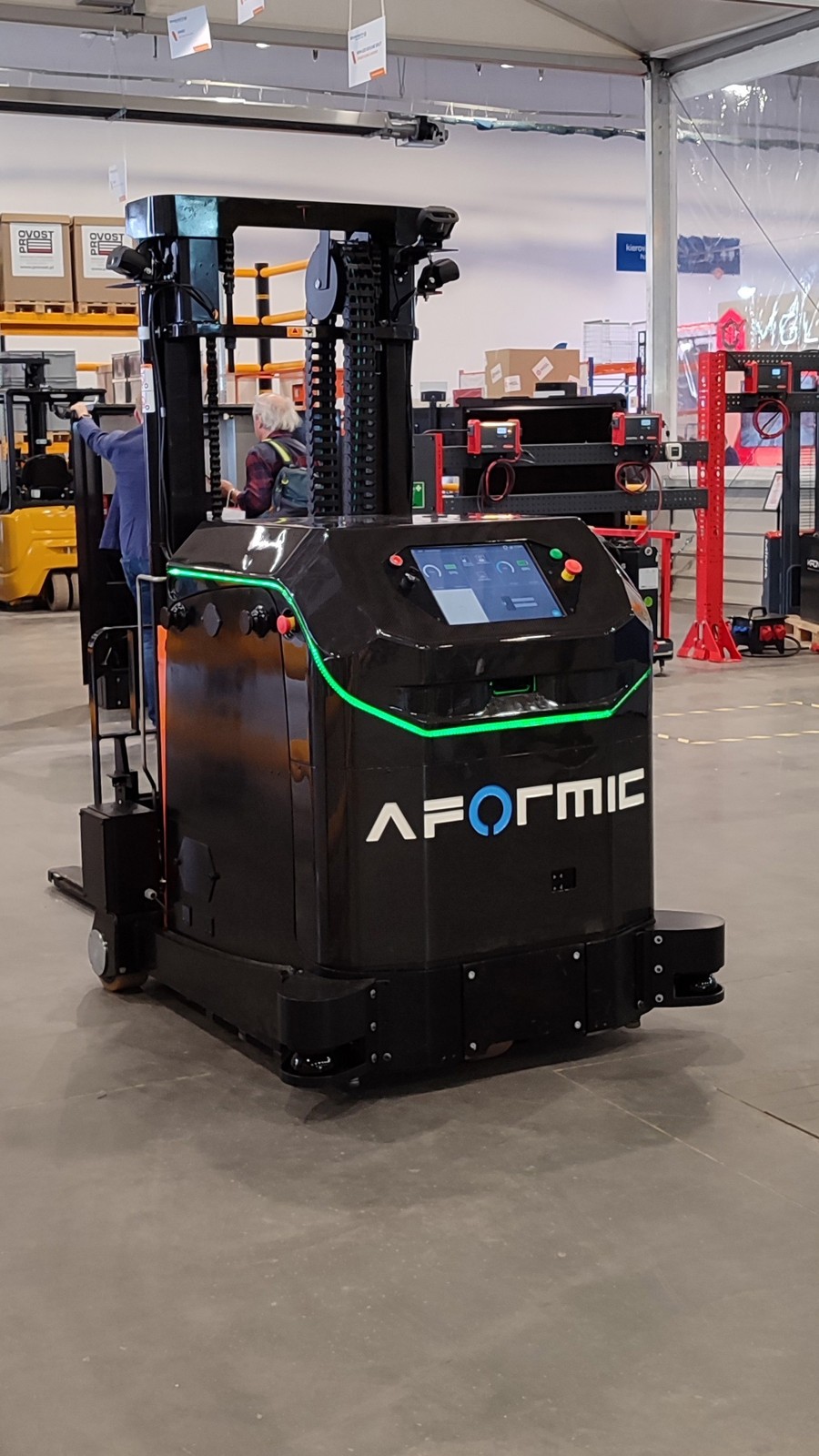

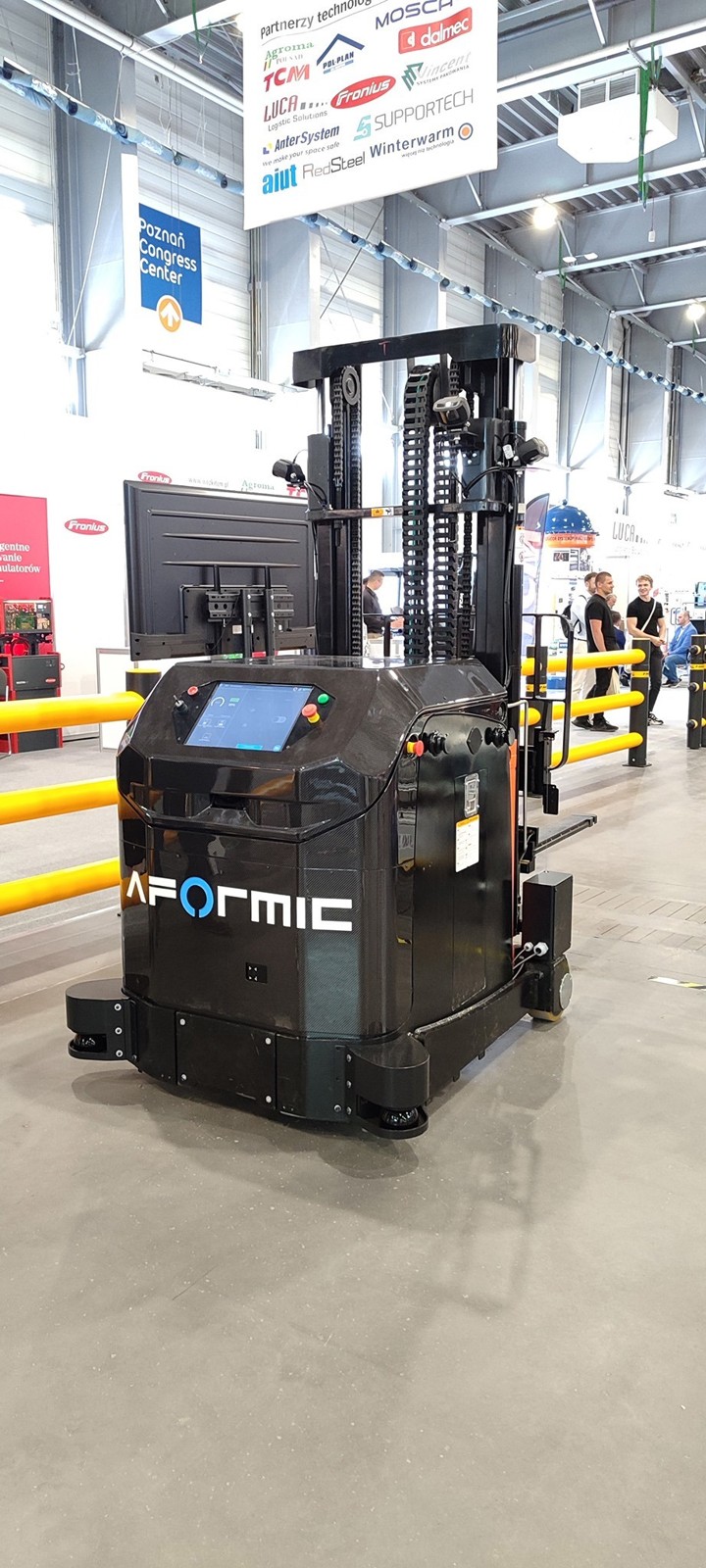

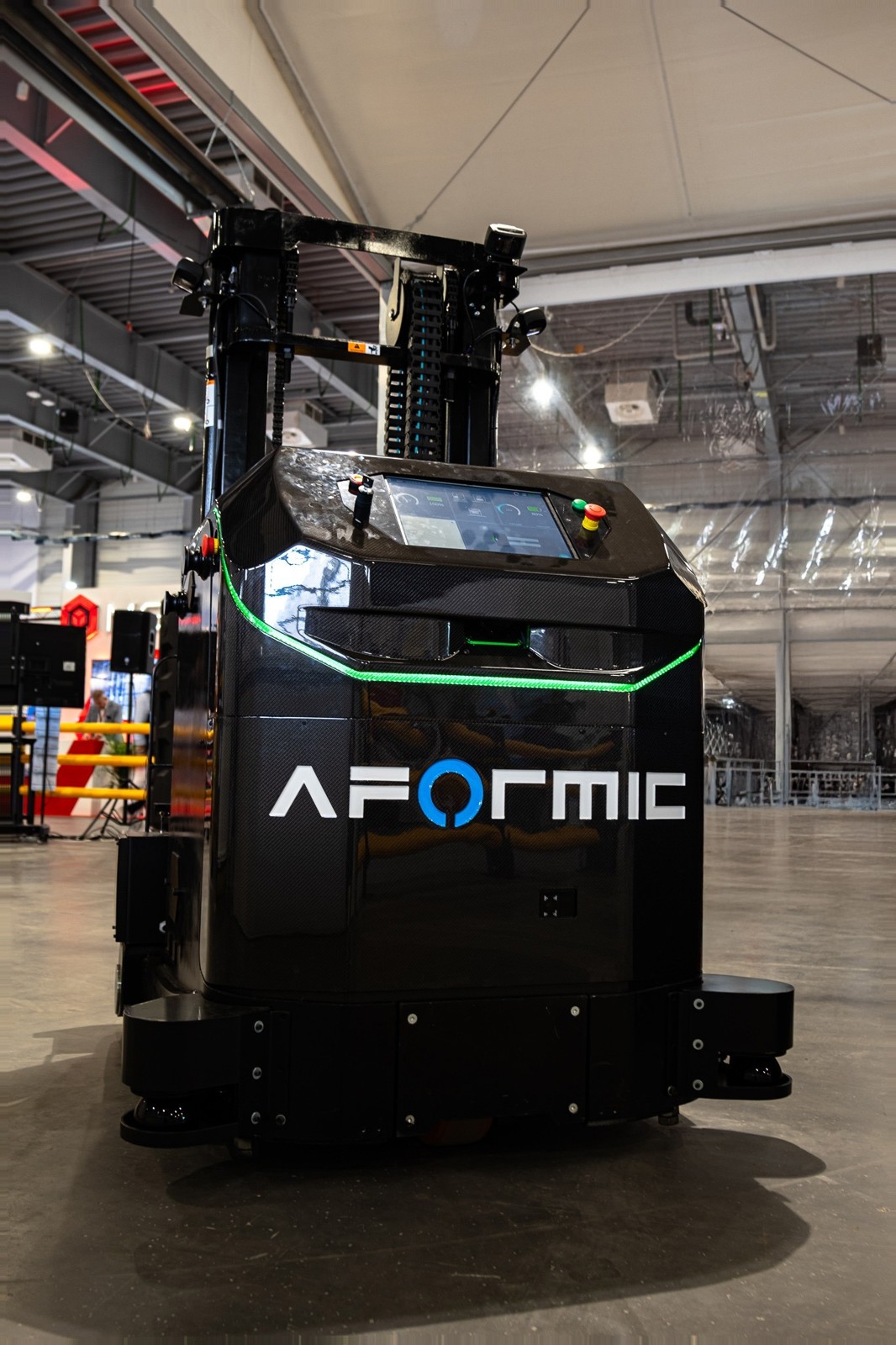

FC 30 is AFORMIC's autonomous counterbalance forklift with an extended mast, lifting pallets of up to 1.5 t to 3 m in factories and warehouses. It measures 2480 x 1160 x 2020 mm, weighs 2700 kg, carries 1500 kg, lifts 3000 mm and travels at up to 1.5 m/s with +/-10 mm positioning accuracy. Drive: steerable traction wheel (2.5 kW). It navigates by lidar SLAM using safety laser scanners with a 360-degree field of view, and is managed by AFORMIC's QURSOR fleet platform, which handles task allocation, path planning, traffic and KANBAN workflows. Power comes from a Li-Ion 272 Ah, 24 V battery.
特長
- Payload: 1500 kg (3300 lb)
- Dimensions (LxWxH): 2480 x 1160 x 2020 mm (97.6 × 45.7 × 79.5 in)
- Lifting height: 3000 mm (118 in)
- Weight: 2700 kg (5,950 lb)
- Max speed: 1.5 m/s (4.9 ft/s)
- Drive: steerable traction wheel
- drive power 2.5 kW
- Positioning accuracy +/- 1.0 cm (0.4 in)
- Safety: Laser scanner field of view: 360° Safety scanners:
- Sick Micro Scanners: 3 units
- Sick Nano Scanners: 1 unit Emergency push buttons: 5 units Blue spot lamps: 3 units One perimeter and two fork safety bumpers
- Battery: Li-Ion 272 Ah, 24 V
- Lidar SLAM navigation
- no floor tape, wires or markers
- Managed by the QURSOR fleet management platform
技術仕様
検証済み| 本体 | |
| 重量 | 2700 kg |
|---|---|
| 寸法 | L 2.48 m × W 1.16 m × H 2.02 m |
| 可搬重量 | 1500 kg |
| 繰り返し精度 | ±10 mm |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 5.4 km/h |
| 使用環境 | Indoor factories and warehouses |
| アクチュエーター | steerable traction wheel (2.5 kW) |
| 電源 | |
| バッテリー駆動時間 | Li-Ion 272 Ah, 24 V |
| センシング・演算 | |
| センサー | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 接続性 | Wireless link to QURSOR fleet manager |
| ソフトウェア / AI | AFORMIC QURSOR fleet management |
ロボットフォーラム
フォーラムを読み込み中...
技術仕様
検証済み| 本体 | |
| 重量 | 2700 kg |
|---|---|
| 寸法 | L 2.48 m × W 1.16 m × H 2.02 m |
| 可搬重量 | 1500 kg |
| 繰り返し精度 | ±10 mm |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 5.4 km/h |
| 使用環境 | Indoor factories and warehouses |
| アクチュエーター | steerable traction wheel (2.5 kW) |
| 電源 | |
| バッテリー駆動時間 | Li-Ion 272 Ah, 24 V |
| センシング・演算 | |
| センサー | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| 接続性 | Wireless link to QURSOR fleet manager |
| ソフトウェア / AI | AFORMIC QURSOR fleet management |
画像
martti
martti
martti
martti投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the FC 30?
FC 30 is AFORMIC's autonomous counterbalance forklift with an extended mast, lifting pallets of up to 1.5 t to 3 m in factories and warehouses. It measures 2480 x 1160 x 2020 mm, weighs 2700 kg, carries 1500 kg, lifts 3000 mm and travels at up to 1.5 m/s with +/-10 mm positioning accuracy.
Who makes the FC 30?
The FC 30 is made by AFORMIC, a robotics company based in Poland.
How much does the FC 30 cost?
AFORMIC has not publicly announced pricing for the FC 30. You can enquire through RobotAIGeek for current pricing.
What is the FC 30 used for?
The FC 30 is designed for 構内物流, 積み込み, マテリアルハンドリング, and パレット搬送. It is used in 自動車, 倉庫・物流, and 製造 settings.
What is the payload capacity of the FC 30?
The FC 30 has a payload capacity of 1,500 kg.
How much does the FC 30 weigh?
The FC 30 weighs 2,700 kg.
How fast is the FC 30?
The FC 30 can move at speeds of up to 5.4 km/h.
