BESCHREIBUNG
TX2-90 ist ein Industrial-Robot von Stäubli. Er ist für Montage, Palettieren, Pick-and-Place ausgelegt. Eckdaten: 114 kg, 14 kg Traglast, 1000 mm Reichweite, 6 Freiheitsgrade, erschienen 2017.

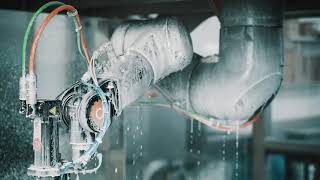

TX2-90 is a Stäubli TX2 6-axis industrial robot with a hygienic encapsulated arm, hollow-shaft gearboxes, and modular SIL3-PLe safety options on the CS9 controller for collaborative-capable cells.
FUNKTIONEN
- 14 kg load capacity
- 1000 mm reach at wrist
- ±0.02 mm repeatability (ISO 9283)
- 114 kg arm mass
- IP65 arm (IP67 with pressurization kit)
- NSF H1 food-oil option
- CS9 controller family
- optional modular SIL3-PLe safety functions.
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 114 kg |
|---|---|
| Traglast | 14 kg |
| Reichweite | 1 m |
| Wiederholgenauigkeit | ±0.02 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 114 kg |
|---|---|
| Traglast | 14 kg |
| Reichweite | 1 m |
| Wiederholgenauigkeit | ±0.02 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
| Manipulation | Hoch |
Bilder
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the TX2-90?
TX2-90 is a Stäubli TX2 6-axis industrial robot with a hygienic encapsulated arm, hollow-shaft gearboxes, and modular SIL3-PLe safety options on the CS9 controller for collaborative-capable cells.
Who makes the TX2-90?
The TX2-90 is made by Stäubli, a robotics company based in Switzerland.
How much does the TX2-90 cost?
Stäubli has not publicly announced pricing for the TX2-90. You can enquire through RobotAIGeek for current pricing.
What is the TX2-90 used for?
The TX2-90 is designed for montage, palettieren, pick-and-place, and forschung. It is used in forschung and fertigung settings.
What is the payload capacity of the TX2-90?
The TX2-90 has a payload capacity of 14 kg and a reach of 1 m.
How much does the TX2-90 weigh?
The TX2-90 weighs 114 kg.
How many degrees of freedom does the TX2-90 have?
The TX2-90 has 6 degrees of freedom.
When was the TX2-90 released?
The TX2-90 was released in 2017.
