BESCHREIBUNG
Tugger High ist ein Mobile-Robots von Bluepath Robotics. Er ist für Transport ausgelegt. Eckdaten: 18500 kg Traglast.

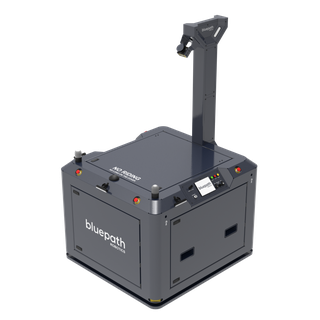

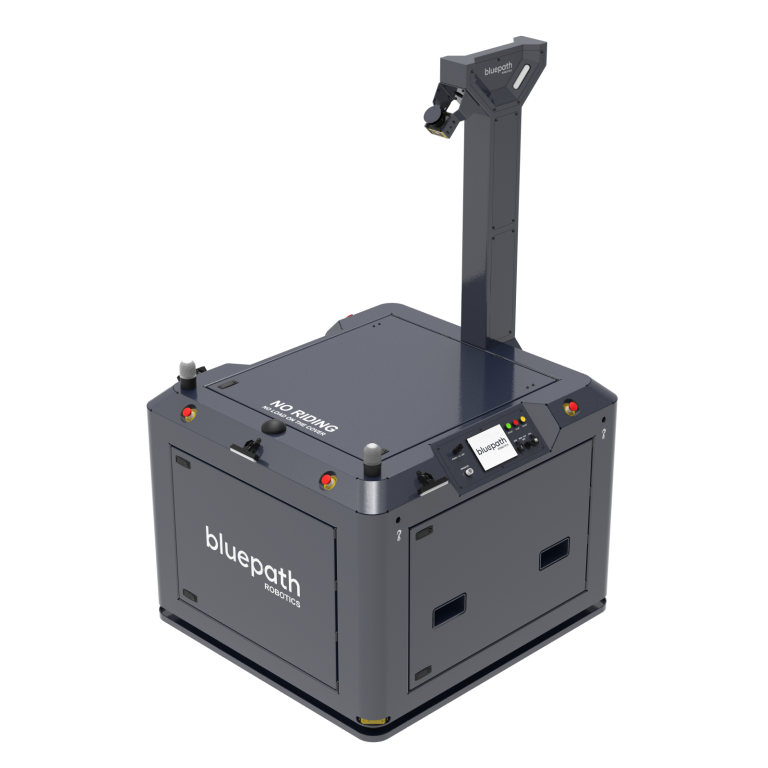

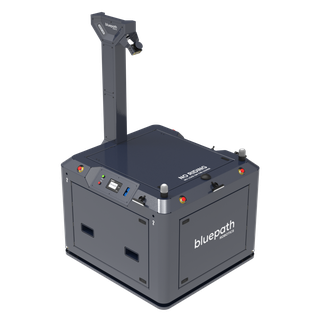

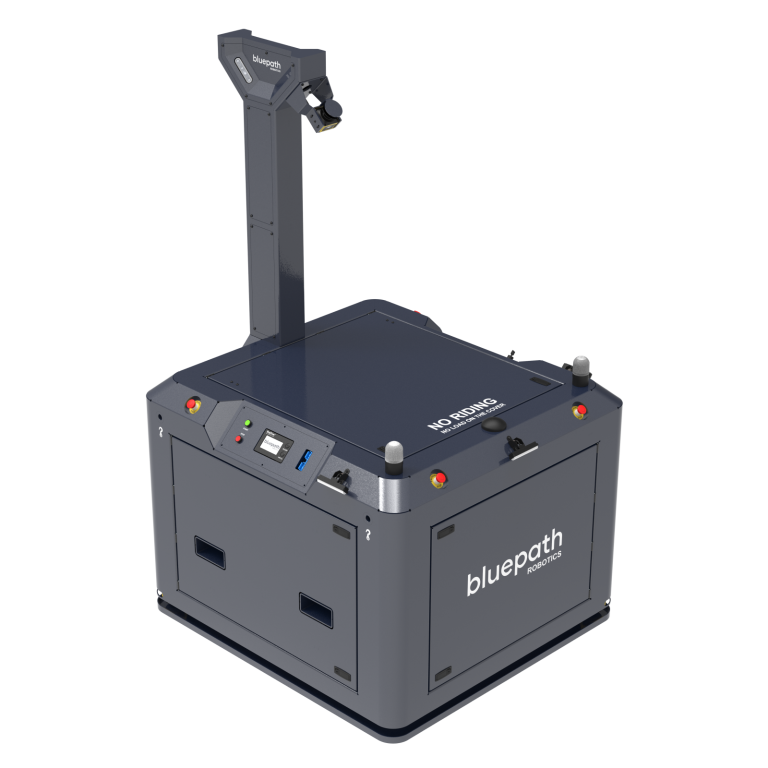

Tugger High is the top of Bluepath Robotics' tow-type AMR line, rated to tow 18,500 kg — the load class of automotive body-shop and large-scale distribution work. Built by Bluepath Robotics of Istanbul, Turkey, the 1,500 x 1,400 x 2,450 mm unit runs at up to 2 m/s while holding +/-10 mm positioning accuracy, and a 690 Ah lithium pack with opportunity charging keeps it working across shifts rather than parking to recharge. It is PLd certified with 3D object detection for situational awareness on a shared floor, and VDA 5050 compliant for mixed-vendor fleet scheduling. Source: https://bluepathrobotics.com/product/tugger-high/
FUNKTIONEN
- Tows up to 18,500 kg — the automotive body-shop and distribution load class
- 1,500 x 1,400 x 2,450 mm body
- differential drive at up to 2 m/s
- 690 Ah lithium pack with opportunity charging for continuous multi-shift running
- PLd certified with +/-10 mm positioning accuracy under full load
- Natural SLAM navigation — no floor magnets, reflectors or line tape required
- 3D object detection, dynamic map update and safe remote on/off
- VDA 5050 compatible
- scheduled from the Bluepath All-in-One Fleet Manager
- WMS/ERP integration and PLC/IoT interaction with smart charging scheduling
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Abmessungen | L 1.5 m × W 1.4 m × H 2.45 m |
|---|---|
| Traglast | 18500 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 7.2 km/h |
| Einsatzumgebung | Indoor factory and warehouse floors shared with people and vehicles |
| Energie | |
| Akkulaufzeit | 690 Ah lithium, opportunity charging |
| Sensorik & Rechenleistung | |
| Software / KI | Bluepath Robotic Software System with All-in-One Fleet Management; automated task management with manual override, shift management |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Abmessungen | L 1.5 m × W 1.4 m × H 2.45 m |
|---|---|
| Traglast | 18500 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 7.2 km/h |
| Einsatzumgebung | Indoor factory and warehouse floors shared with people and vehicles |
| Energie | |
| Akkulaufzeit | 690 Ah lithium, opportunity charging |
| Sensorik & Rechenleistung | |
| Software / KI | Bluepath Robotic Software System with All-in-One Fleet Management; automated task management with manual override, shift management |
Bilder
martti
martti
marttiBildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Tugger High?
Tugger High is the top of Bluepath Robotics' tow-type AMR line, rated to tow 18,500 kg — the load class of automotive body-shop and large-scale distribution work.
Who makes the Tugger High?
The Tugger High is made by Bluepath Robotics, a robotics company based in Turkey.
How much does the Tugger High cost?
Bluepath Robotics has not publicly announced pricing for the Tugger High. You can enquire through RobotAIGeek for current pricing.
What is the Tugger High used for?
The Tugger High is designed for transport. It is used in lager & logistik and fertigung settings.
What is the payload capacity of the Tugger High?
The Tugger High has a payload capacity of 18,500 kg.
How fast is the Tugger High?
The Tugger High can move at speeds of up to 7.2 km/h.
