BESCHREIBUNG

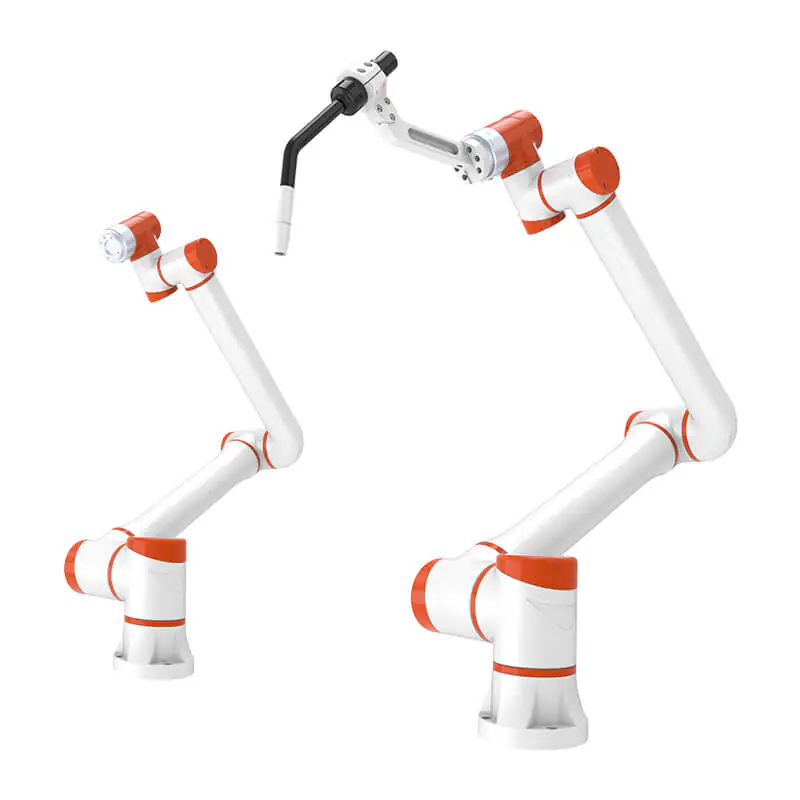

SC20-2027 ist ein Industrial-Robot von RSM Machinery. Er ist für Maschinenbeschickung, Materialhandhabung, Schweißen ausgelegt. Eckdaten: 68 kg, 20 kg Traglast, 2027 mm Reichweite, 6 Freiheitsgrade.
ERSM SC20-2027 is a six-axis collaborative welding robot in the SC series for heavy-plate and sheet-metal fabrication. Documented on the OEM SC family page alongside SC6-1460 / SC15-1464 / SC20-2027 / SC7-1077.
FUNKTIONEN
- ERSM SC-series collaborative welding robot — model SC20-2027. OEM publishes all SC SKUs (SC7-1077, SC6-1460, SC15-1464, SC20-2027) in one Technical Parameters table on the SC6-1460 family product page
- values below are the SC20-2027 column only (not sibling columns). Six-axis cobot for heavy-plate and sheet-metal welding with arc tracking, multi-layer multi-pass, and swing fixed-point arc
- drag-and-drop / teach-handle programming
- fence-free ISO 10218-1 collaboration with force/collision stop. Specs for SC20-2027: max working radius 2027.0 mm
- payload 20.0 kg
- repeat positioning ±0.05 mm
- tool-end max speed 4000 mm/s
- body weight 68.0 kg
- IP65
- EtherCAT 1 kHz.
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 68 kg |
|---|---|
| Traglast | 20 kg |
| Reichweite | 2.03 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 68 kg |
|---|---|
| Traglast | 20 kg |
| Reichweite | 2.03 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
Bilder
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the SC20-2027?
ERSM SC20-2027 is a six-axis collaborative welding robot in the SC series for heavy-plate and sheet-metal fabrication. Documented on the OEM SC family page alongside SC6-1460 / SC15-1464 / SC20-2027 / SC7-1077.
Who makes the SC20-2027?
The SC20-2027 is made by RSM Machinery, a robotics company based in China.
How much does the SC20-2027 cost?
RSM Machinery has not publicly announced pricing for the SC20-2027. You can enquire through RobotAIGeek for current pricing.
What is the SC20-2027 used for?
The SC20-2027 is designed for maschinenbeschickung, materialhandhabung, and schweißen. It is used in fertigung settings.
What is the payload capacity of the SC20-2027?
The SC20-2027 has a payload capacity of 20 kg and a reach of 2.03 m.
How much does the SC20-2027 weigh?
The SC20-2027 weighs 68 kg.
How many degrees of freedom does the SC20-2027 have?
The SC20-2027 has 6 degrees of freedom.
