ROKAE NB185 Series

Rokae (Shandong) Intelligent Technology Co., Ltd.
Industrial-RobotChinaChinaVeröffentlicht
ROKAE NB185 Series
Vergleichen
Quellen:
rokae.com
Branchen:
Lager & LogistikFertigung
Anwendungen:
MontageMaterialhandhabung
Preis:
Nicht angekündigt

BESCHREIBUNG

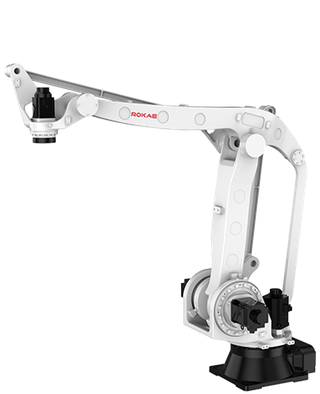

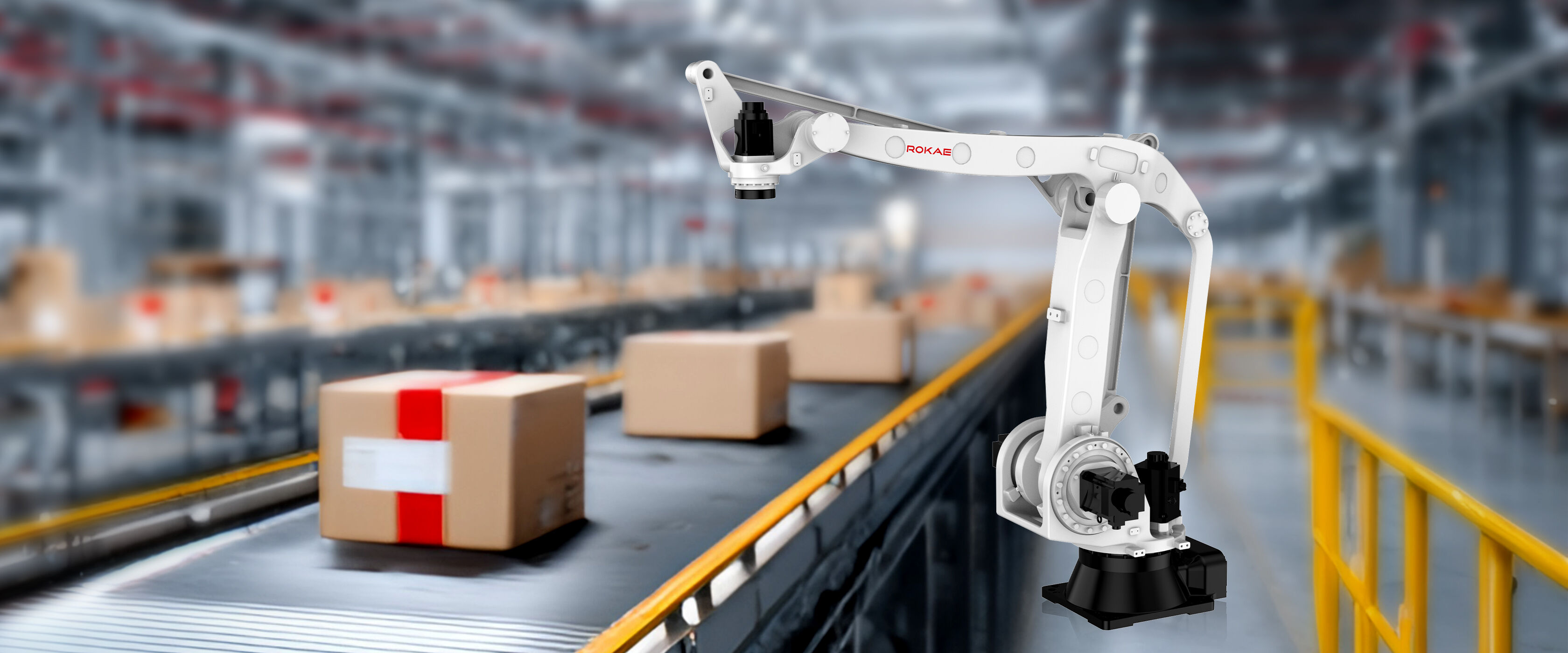

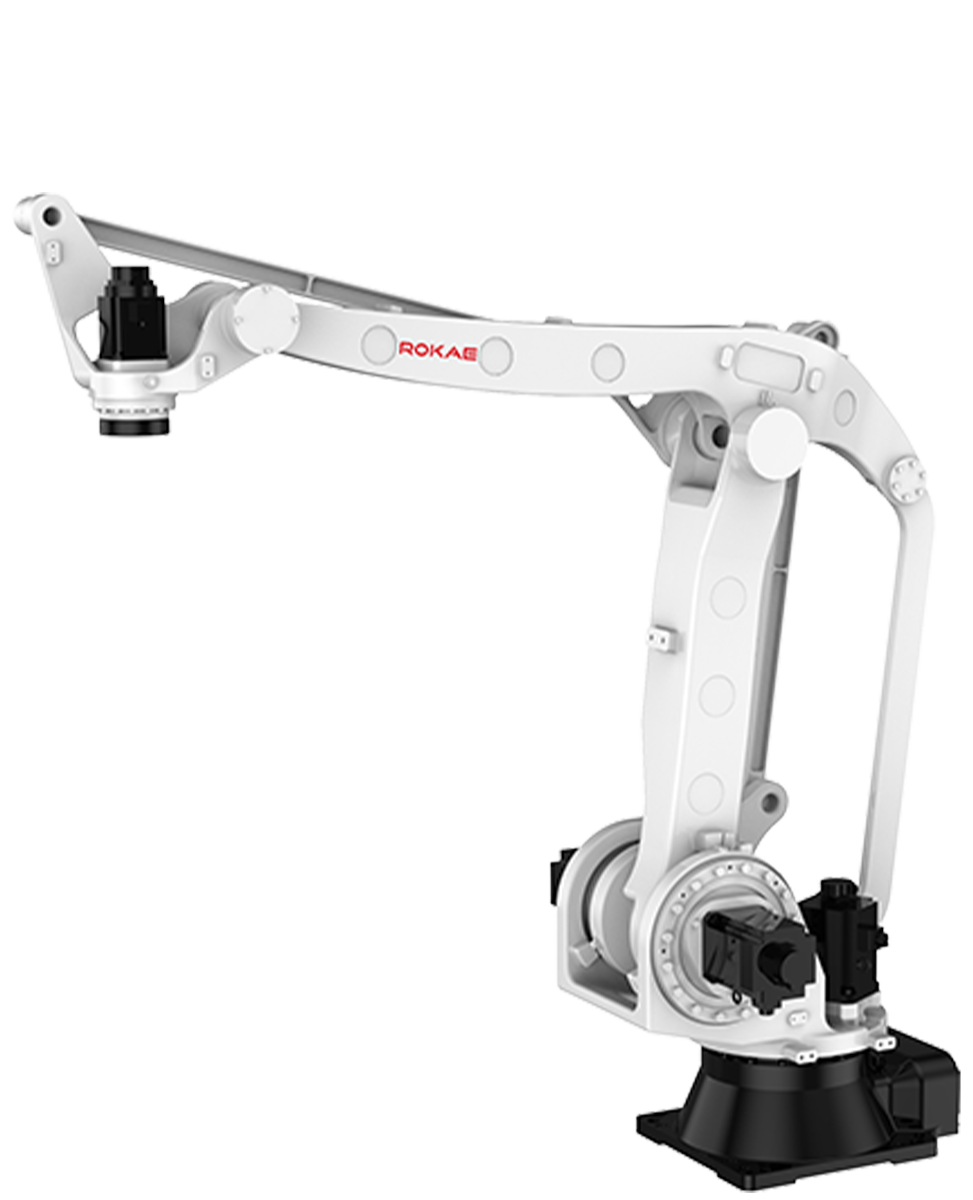

The NB185 is ROKAE's dedicated palletising robot, and the giveaway is the axis count: four, not the six of a general-purpose arm. A palletiser does not need to tilt its wrist — it lifts, swings and sets down level — so dropping two axes buys rigidity and payload for the same money. The single model in the series, the NB185-185/3.2-4, carries 185 kg through a 3,170 mm reach and weighs about 1,200 kg itself, repeating to plus or minus 0.06 mm on AC servo drive. It bolts to the floor, is rated IP54 with an IP67 wrist, and works from 0 to 40 C. That reach and payload put it at end-of-line palletising for heavy cases and sacks on continuous production lines.

FUNKTIONEN

  • Four-axis palletising configuration
  • Single model in the series: NB185-185/3.2-4
  • Payload 185 kg at 3,170 mm reach
  • Body weight approximately 1,200 kg
  • Repeatability plus or minus 0.06 mm
  • AC servo drive
  • IP54 body with IP67 wrist
  • Floor (ground) mounting
  • Operating temperature 0 to +40 C
  • storage -10 to +55 C

TECHNISCHE DATEN

Verifiziert
Physisch
Gewicht1200 kg
Traglast185 kg
Reichweite3.17 m
Wiederholgenauigkeit±0.06 mm
Mobilität
BewegungsartStationär
Freiheitsgrade4
HerstellerangabeDrittquelleOhne QuelleDer Quellenstatus basiert auf den angegebenen Quellen dieses Roboters.

Videos

Programming a Robot is NOW This Easy: Introducing Smart Drag-Teaching by ROKAE | No Code Needed
8. Aug. 2026
Roboter-Video

Programming a Robot is NOW This Easy: Introducing Smart Drag-Teaching by ROKAE | No Code Needed

marttimarttiflag
Breaking Boundaries with ROKAE: Control System Boosts Speed by 40% #robot #robotics
8. Aug. 2026
Roboter-Video

Breaking Boundaries with ROKAE: Control System Boosts Speed by 40% #robot #robotics

marttimarttiflag
ROKAE xMate SR Cobots: Transforming Industries with Unmatched Performance and Safety #robotics
8. Aug. 2026
Roboter-Video

ROKAE xMate SR Cobots: Transforming Industries with Unmatched Performance and Safety #robotics

marttimarttiflag

HÄUFIG GESTELLTE FRAGEN

What is the ROKAE NB185 Series?

The NB185 is ROKAE's dedicated palletising robot, and the giveaway is the axis count: four, not the six of a general-purpose arm. A palletiser does not need to tilt its wrist — it lifts, swings and sets down level — so dropping two axes buys rigidity and payload for the same money.

Who makes the ROKAE NB185 Series?

The ROKAE NB185 Series is made by Rokae (Shandong) Intelligent Technology Co., Ltd., a robotics company based in China.

How much does the ROKAE NB185 Series cost?

Rokae (Shandong) Intelligent Technology Co., Ltd. has not publicly announced pricing for the ROKAE NB185 Series. You can enquire through RobotAIGeek for current pricing.

What is the ROKAE NB185 Series used for?

The ROKAE NB185 Series is designed for montage and materialhandhabung. It is used in lager & logistik and fertigung settings.

What is the payload capacity of the ROKAE NB185 Series?

The ROKAE NB185 Series has a payload capacity of 185 kg and a reach of 3.17 m.

How much does the ROKAE NB185 Series weigh?

The ROKAE NB185 Series weighs 1,200 kg.

How many degrees of freedom does the ROKAE NB185 Series have?

The ROKAE NB185 Series has 4 degrees of freedom.
