BESCHREIBUNG

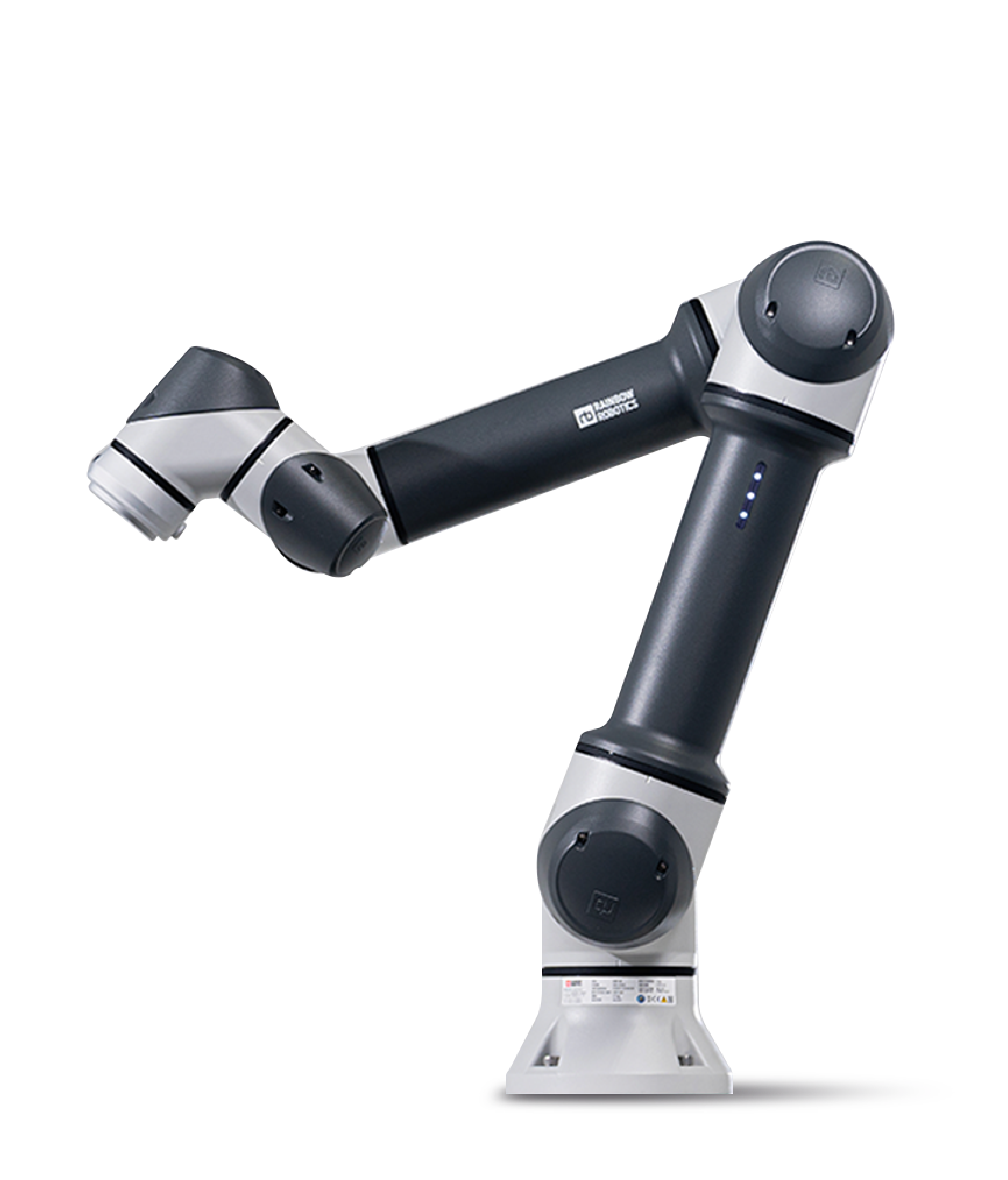

RB3-1200 ist ein Industrial-Robot von Rainbow Robotics. Er ist für Montage, Palettieren, Pick-and-Place ausgelegt. Eckdaten: 22.4 kg, 3 kg Traglast, 1200 mm Reichweite, 6 Freiheitsgrade.
The RB3-1200 is a Rainbow Robotics collaborative robot arm with a 3 kg payload and 1200 mm reach, built for safe human-robot cooperation on industrial tasks such as packaging, welding, assembly, and inspection.
FUNKTIONEN
- In-house engineered high-performance collaborative arm
- globally certified safety (NRTL, CE, KCs / TÜV SÜD — ISO 13849-1 Cat.3 PL d, ISO 10218-1, ISO/TS 15066)
- ±0.05 mm repeatability
- IP-rated operating environment per model
- M8 tool flange
- 5 m robot-arm cable. Model RB3-1200: payload 3 kg, reach 1200 mm, arm weight 22.4 kg, footprint ∅ 173 mm, operating environment IP66 / 0-50 °C.
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 22.4 kg |
|---|---|
| Traglast | 3 kg |
| Reichweite | 1.2 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 22.4 kg |
|---|---|
| Traglast | 3 kg |
| Reichweite | 1.2 m |
| Wiederholgenauigkeit | ±0.05 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
Bilder
martti
Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the RB3-1200?
The RB3-1200 is a Rainbow Robotics collaborative robot arm with a 3 kg payload and 1200 mm reach, built for safe human-robot cooperation on industrial tasks such as packaging, welding, assembly, and inspection.
Who makes the RB3-1200?
The RB3-1200 is made by Rainbow Robotics, a robotics company based in South Korea.
How much does the RB3-1200 cost?
Rainbow Robotics has not publicly announced pricing for the RB3-1200. You can enquire through RobotAIGeek for current pricing.
What is the RB3-1200 used for?
The RB3-1200 is designed for montage, palettieren, pick-and-place, and schweißen. It is used in fertigung settings.
What is the payload capacity of the RB3-1200?
The RB3-1200 has a payload capacity of 3 kg and a reach of 1.2 m.
How much does the RB3-1200 weigh?
The RB3-1200 weighs 22.4 kg.
How many degrees of freedom does the RB3-1200 have?
The RB3-1200 has 6 degrees of freedom.
