BESCHREIBUNG
RB-Y1 ist ein Industrial-Robot von Rainbow Robotics. Er ist für Montage, Pick-and-Place ausgelegt. Eckdaten: 131 kg, 3 kg Traglast, 24 Freiheitsgrade.

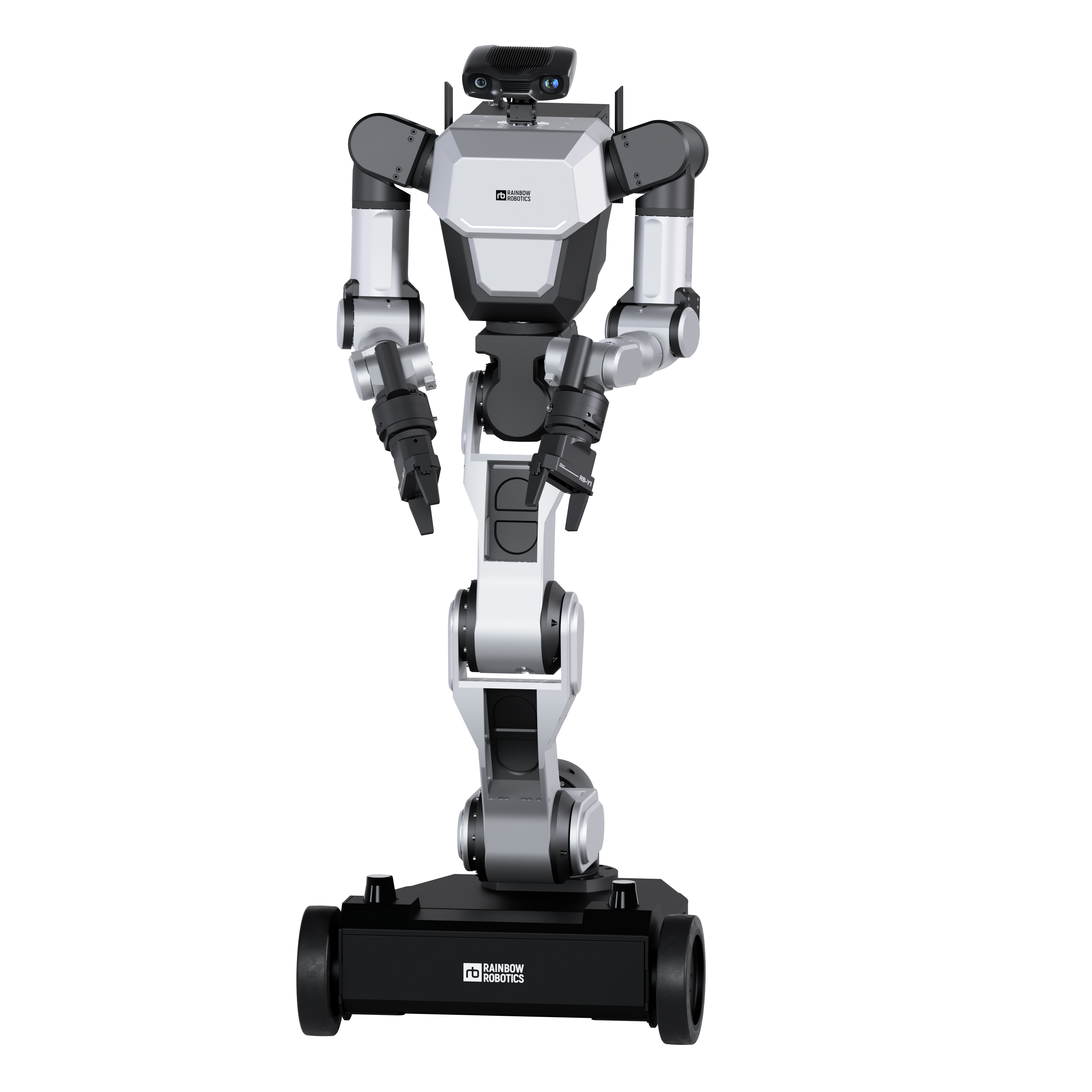

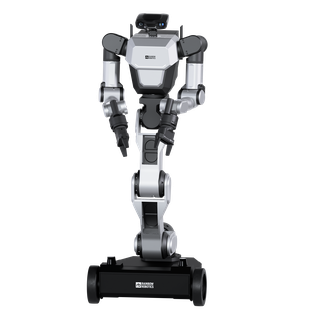

RB-Y1 is Rainbow Robotics' dual-arm mobile manipulator: two 7-DOF arms and a 6-DOF leg on a wheeled base, built as an open platform for AI teleoperation and industrial dexterous tasks.
FUNKTIONEN
- Dual 7-DOF arms (3 kg payload per arm)
- 6-DOF leg
- 1-DOF grippers x2
- 1-DOF wheels x2
- total 24 DOF
- size 600 x 690 x 1,400 mm (W x D x H)
- battery 50 V / 25 Ah (1,270 Wh)
- mobile velocity 1.5 m/s
- total weight 131 kg (upper 38 / lower 42 / mobile 51 kg).
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 131 kg |
|---|---|
| Abmessungen | L 690 mm × W 600 mm × H 1.4 m |
| Traglast | 3 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Freiheitsgrade | 24 |
| Geschwindigkeit | 5.4 km/h |
| Energie | |
| Akkulaufzeit | 1.27 kWh |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 131 kg |
|---|---|
| Abmessungen | L 690 mm × W 600 mm × H 1.4 m |
| Traglast | 3 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Freiheitsgrade | 24 |
| Geschwindigkeit | 5.4 km/h |
| Energie | |
| Akkulaufzeit | 1.27 kWh |
Bilder
martti
Bildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the RB-Y1?
RB-Y1 is Rainbow Robotics' dual-arm mobile manipulator: two 7-DOF arms and a 6-DOF leg on a wheeled base, built as an open platform for AI teleoperation and industrial dexterous tasks.
Who makes the RB-Y1?
The RB-Y1 is made by Rainbow Robotics, a robotics company based in South Korea.
How much does the RB-Y1 cost?
Rainbow Robotics has not publicly announced pricing for the RB-Y1. You can enquire through RobotAIGeek for current pricing.
What is the RB-Y1 used for?
The RB-Y1 is designed for montage and pick-and-place. It is used in forschung and fertigung settings.
What is the payload capacity of the RB-Y1?
The RB-Y1 has a payload capacity of 3 kg.
How much does the RB-Y1 weigh?
The RB-Y1 weighs 131 kg.
How fast is the RB-Y1?
The RB-Y1 can move at speeds of up to 5.4 km/h.
How many degrees of freedom does the RB-Y1 have?
The RB-Y1 has 24 degrees of freedom.
