BESCHREIBUNG
PILOT 7 ist ein Collaborative-Robot von Tianji Gento. Er ist für Montage, Materialhandhabung, Kommissionierung ausgelegt. Eckdaten: 36 kg, 7 kg Traglast, 1066 mm Reichweite, 6 Freiheitsgrade.

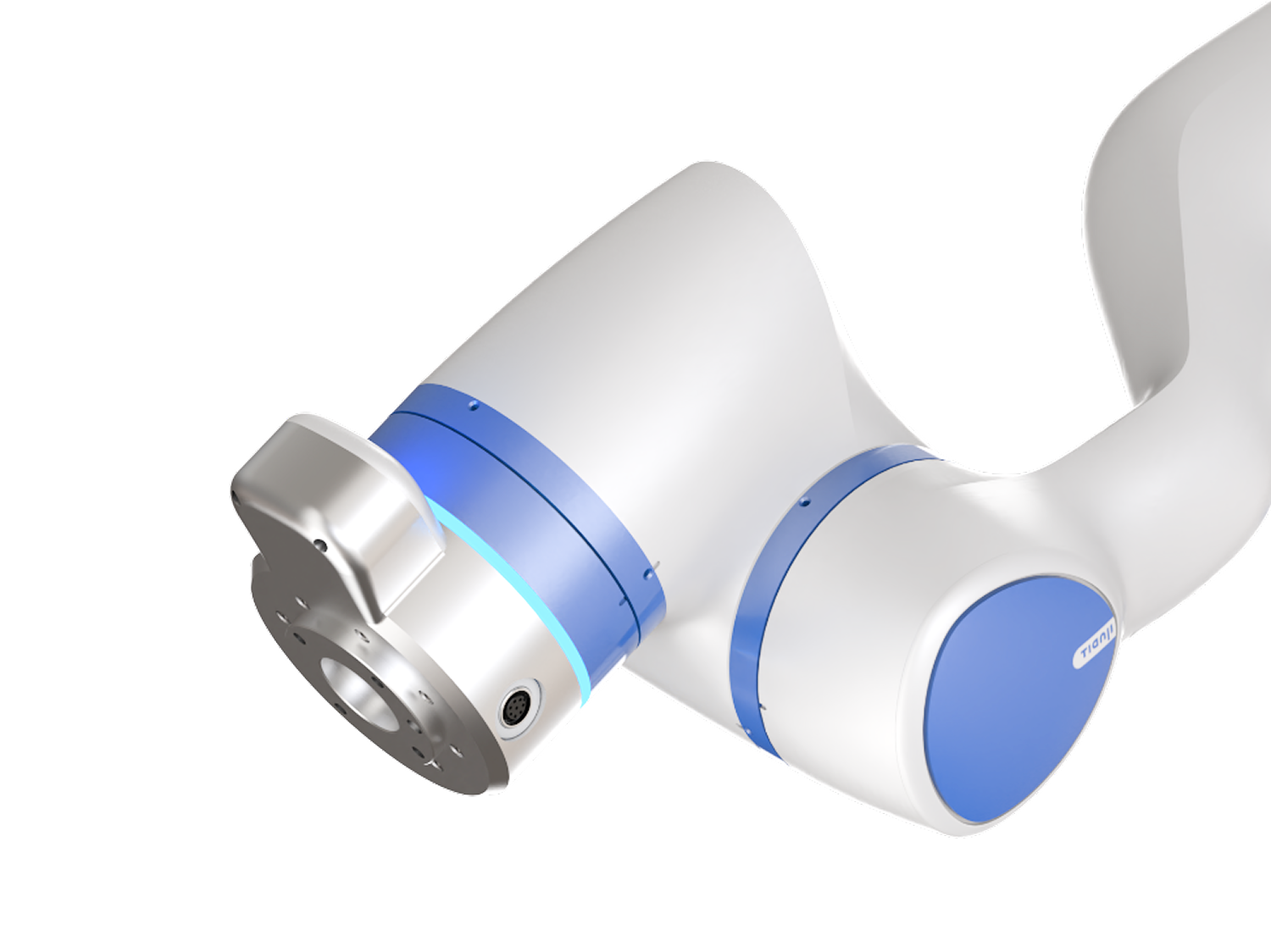

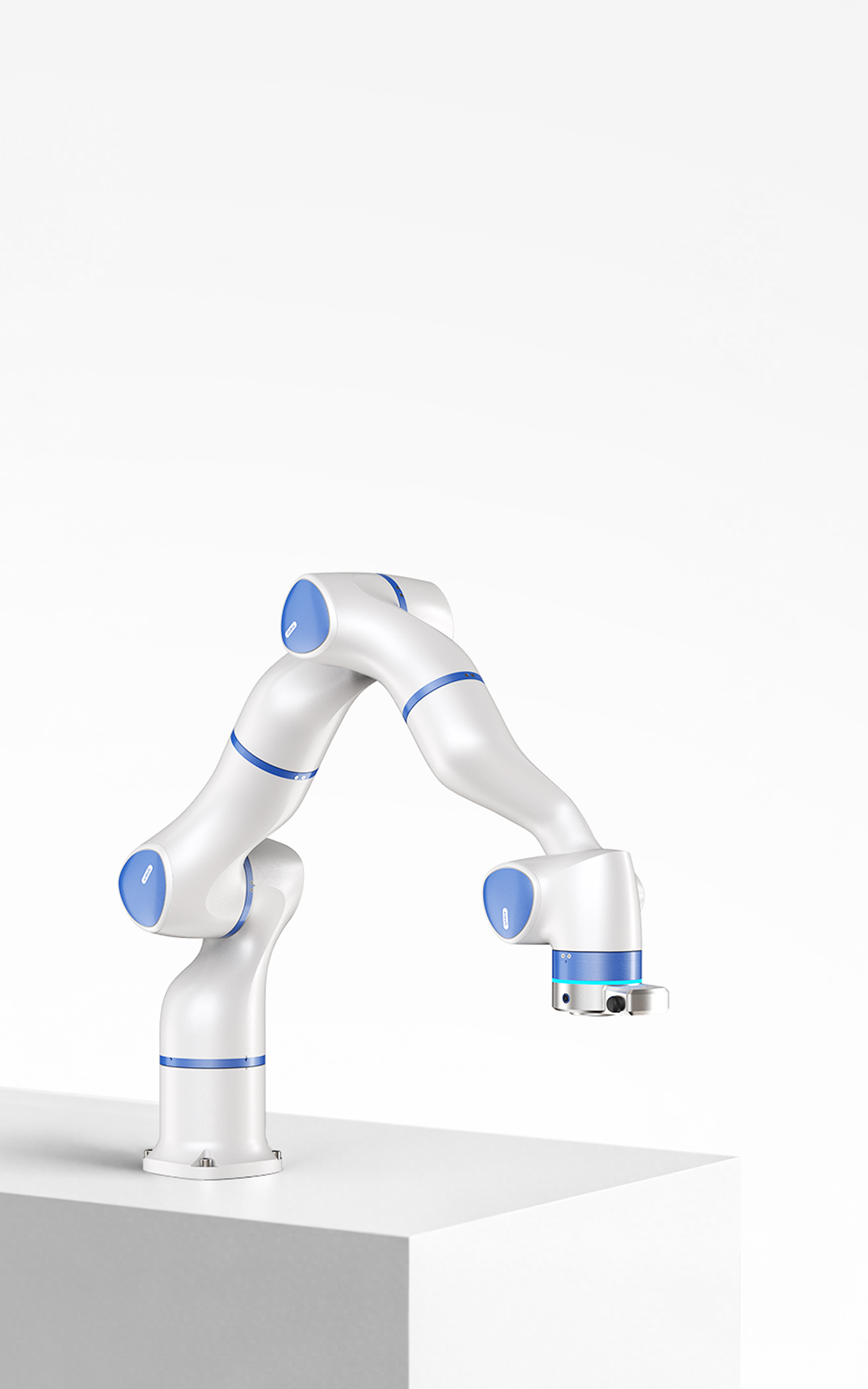

The PILOT 7 is a collaborative robot arm from Tianji carrying 7 kg over a 1066 mm reach with ±0.03 mm repeatability. Contact-sensing stops the arm on collision so it can work alongside people without fencing, and at 36 kg it mounts at any angle for quick redeployment. It pairs a high-precision force sensor with Tianji's process-oriented control system.
FUNKTIONEN
- 7 kg payload over 1066 mm reach
- ±0.03 mm repeatability
- Collision detection stops the arm on contact
- 36 kg body, mounts at any angle
- IP54 protection rating
- Zero-force drag teaching with trajectory replay
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 36 kg |
|---|---|
| Traglast | 7 kg |
| Reichweite | 1.07 m |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 36 kg |
|---|---|
| Traglast | 7 kg |
| Reichweite | 1.07 m |
| Wiederholgenauigkeit | ±0.03 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
Bilder
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the PILOT 7?
The PILOT 7 is a collaborative robot arm from Tianji carrying 7 kg over a 1066 mm reach with ±0.03 mm repeatability. Contact-sensing stops the arm on collision so it can work alongside people without fencing, and at 36 kg it mounts at any angle for quick redeployment.
Who makes the PILOT 7?
The PILOT 7 is made by Tianji Gento, a robotics company based in China.
How much does the PILOT 7 cost?
Tianji Gento has not publicly announced pricing for the PILOT 7. You can enquire through RobotAIGeek for current pricing.
What is the PILOT 7 used for?
The PILOT 7 is designed for montage, materialhandhabung, and kommissionierung. It is used in automobilindustrie, elektronik, and fertigung settings.
What is the payload capacity of the PILOT 7?
The PILOT 7 has a payload capacity of 7 kg and a reach of 1.07 m.
How much does the PILOT 7 weigh?
The PILOT 7 weighs 36 kg.
How many degrees of freedom does the PILOT 7 have?
The PILOT 7 has 6 degrees of freedom.
