BESCHREIBUNG

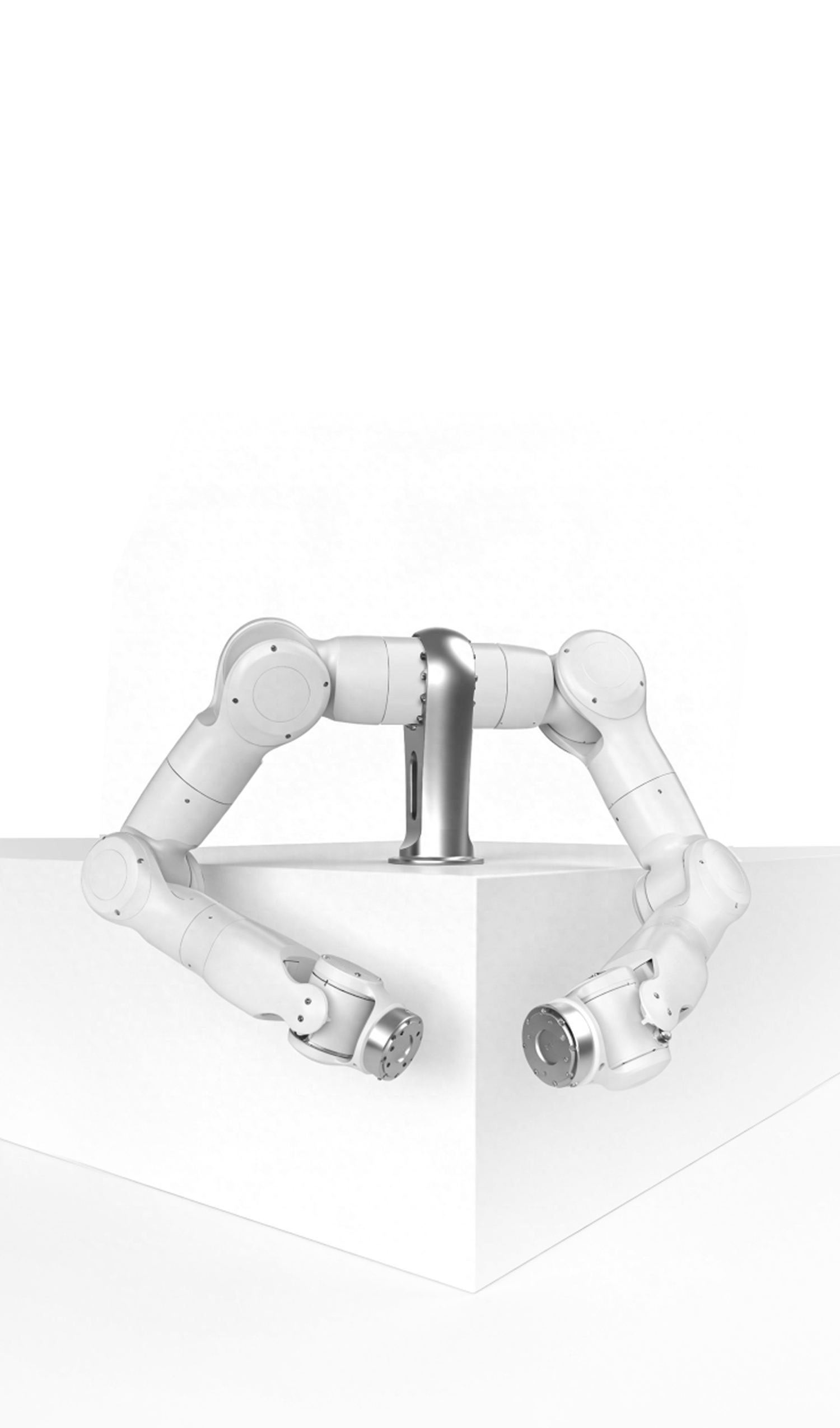

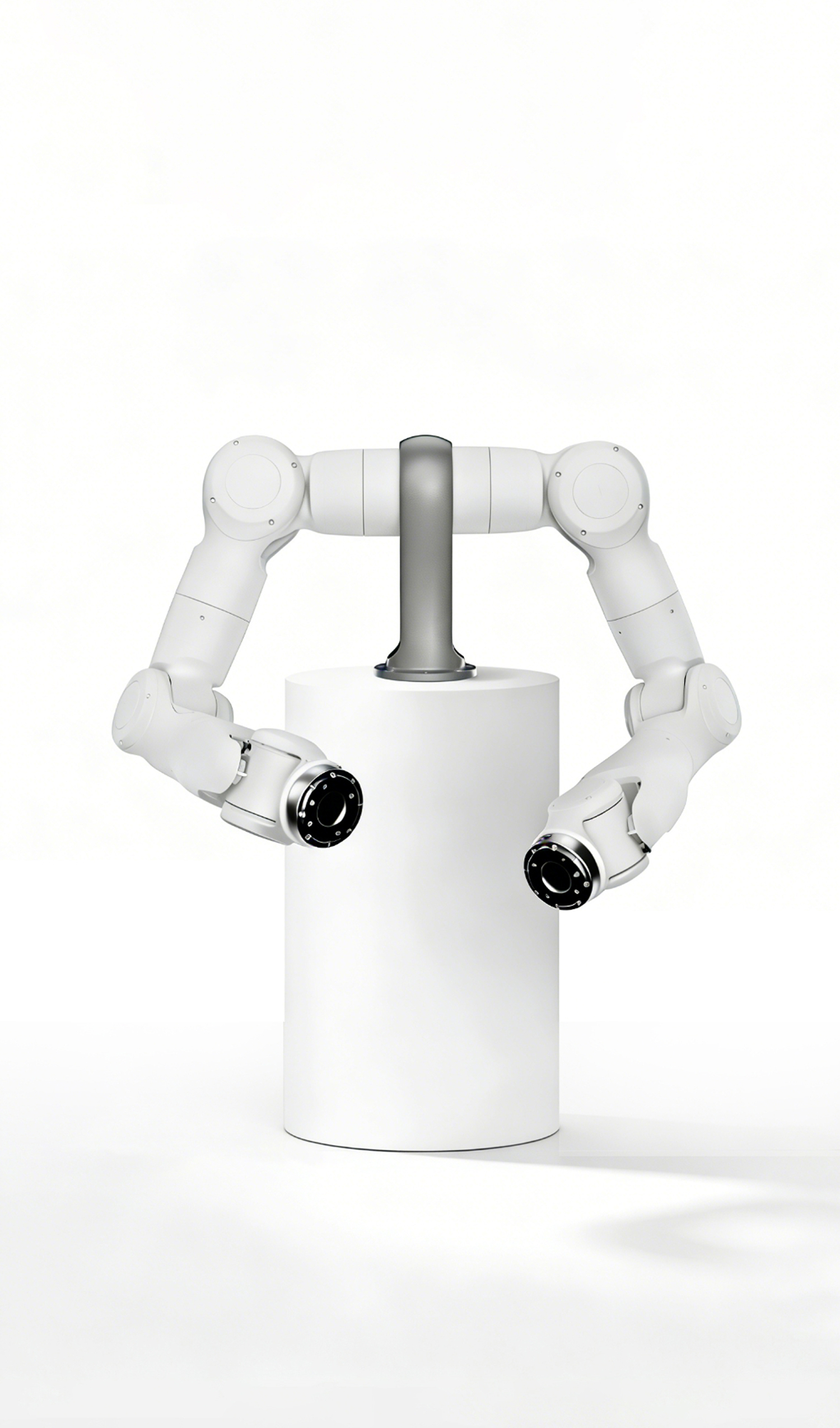

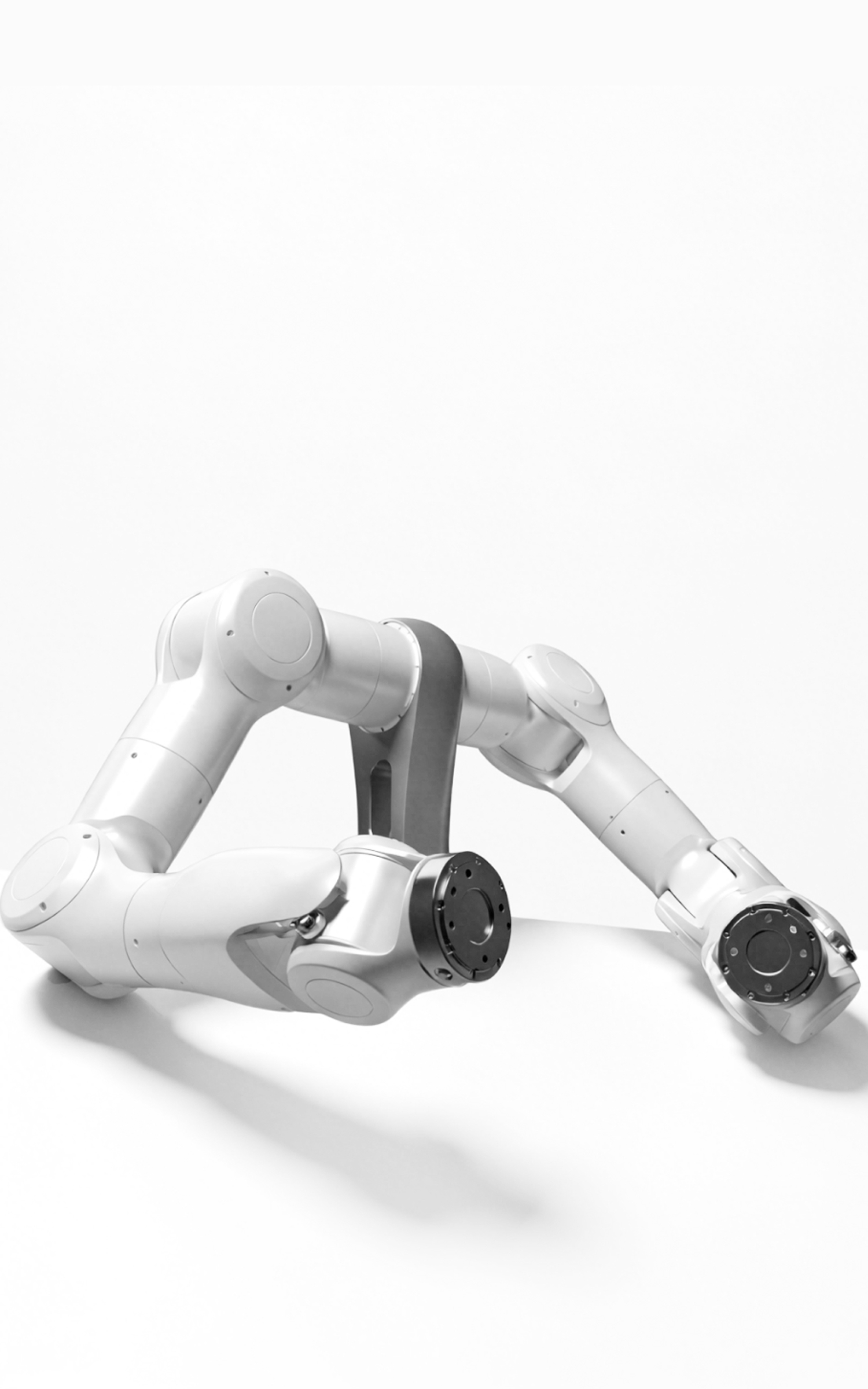

Marvin M6S CCS-809 ist ein Collaborative-Robot von Tianji Gento. Er ist für Montage, Forschung ausgelegt. Eckdaten: 12.7 kg, 5 kg Traglast, 809 mm Reichweite, 7 Freiheitsgrade.
The Marvin M6S CCS-809 is a seven-axis force-controlled humanoid robot arm from Tianji, rated for 5 kg over a 809 mm working radius measured from the J2 axis to the end flange. Every joint carries a torque sensor as standard, giving force repeatability within 0.15 N, and the arm uses a cross-axis bionic wrist. At 12.7 kg per arm it reaches a 2 m/s TCP speed and repeats to ±0.04 mm.
FUNKTIONEN
- Seven degrees of freedom, 5 kg rated payload
- 809 mm working radius from J2 to end flange
- Torque sensor on every joint as standard
- Force repeatability within 0.15 N
- Cross-axis bionic wrist
- Camera cabling can be routed inside to the end effector
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 12.7 kg |
|---|---|
| Traglast | 5 kg |
| Reichweite | 809 mm |
| Wiederholgenauigkeit | ±0.04 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 7 |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Gewicht | 12.7 kg |
|---|---|
| Traglast | 5 kg |
| Reichweite | 809 mm |
| Wiederholgenauigkeit | ±0.04 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 7 |
Bilder
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Marvin M6S CCS-809?
The Marvin M6S CCS-809 is a seven-axis force-controlled humanoid robot arm from Tianji, rated for 5 kg over a 809 mm working radius measured from the J2 axis to the end flange. Every joint carries a torque sensor as standard, giving force repeatability within 0.15 N, and the arm uses a cross-axis bionic wrist.
Who makes the Marvin M6S CCS-809?
The Marvin M6S CCS-809 is made by Tianji Gento, a robotics company based in China.
How much does the Marvin M6S CCS-809 cost?
Tianji Gento has not publicly announced pricing for the Marvin M6S CCS-809. You can enquire through RobotAIGeek for current pricing.
What is the Marvin M6S CCS-809 used for?
The Marvin M6S CCS-809 is designed for montage and forschung. It is used in automobilindustrie, elektronik, and fertigung settings.
What is the payload capacity of the Marvin M6S CCS-809?
The Marvin M6S CCS-809 has a payload capacity of 5 kg and a reach of 809 mm.
How much does the Marvin M6S CCS-809 weigh?
The Marvin M6S CCS-809 weighs 12.7 kg.
How many degrees of freedom does the Marvin M6S CCS-809 have?
The Marvin M6S CCS-809 has 7 degrees of freedom.
