BESCHREIBUNG
Marvin M20S CCS-1050 ist ein Collaborative-Robot von Tianji Gento. Er ist für Montage, Forschung ausgelegt. Eckdaten: 30 kg, 20 kg Traglast, 1050 mm Reichweite, 7 Freiheitsgrade.

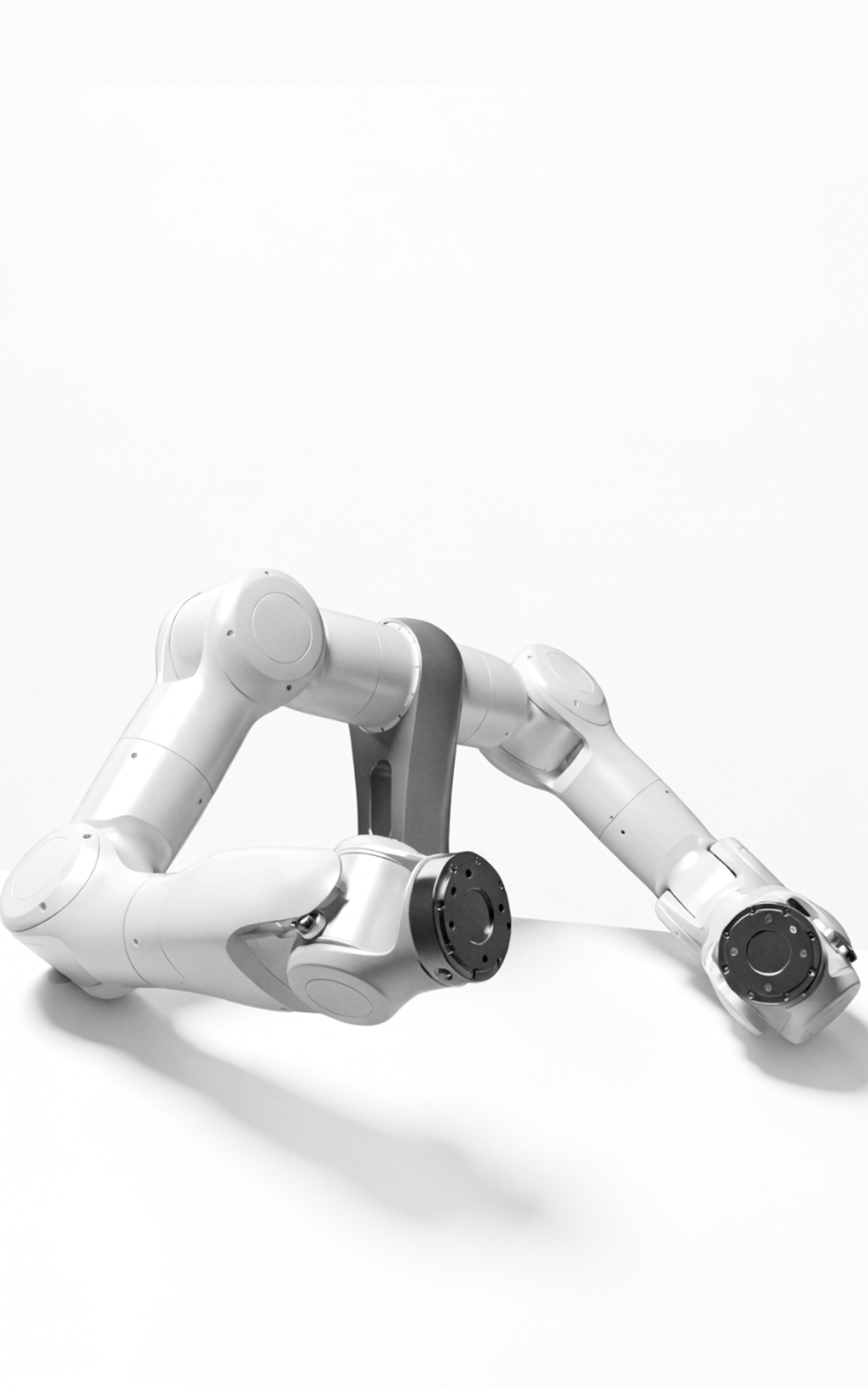

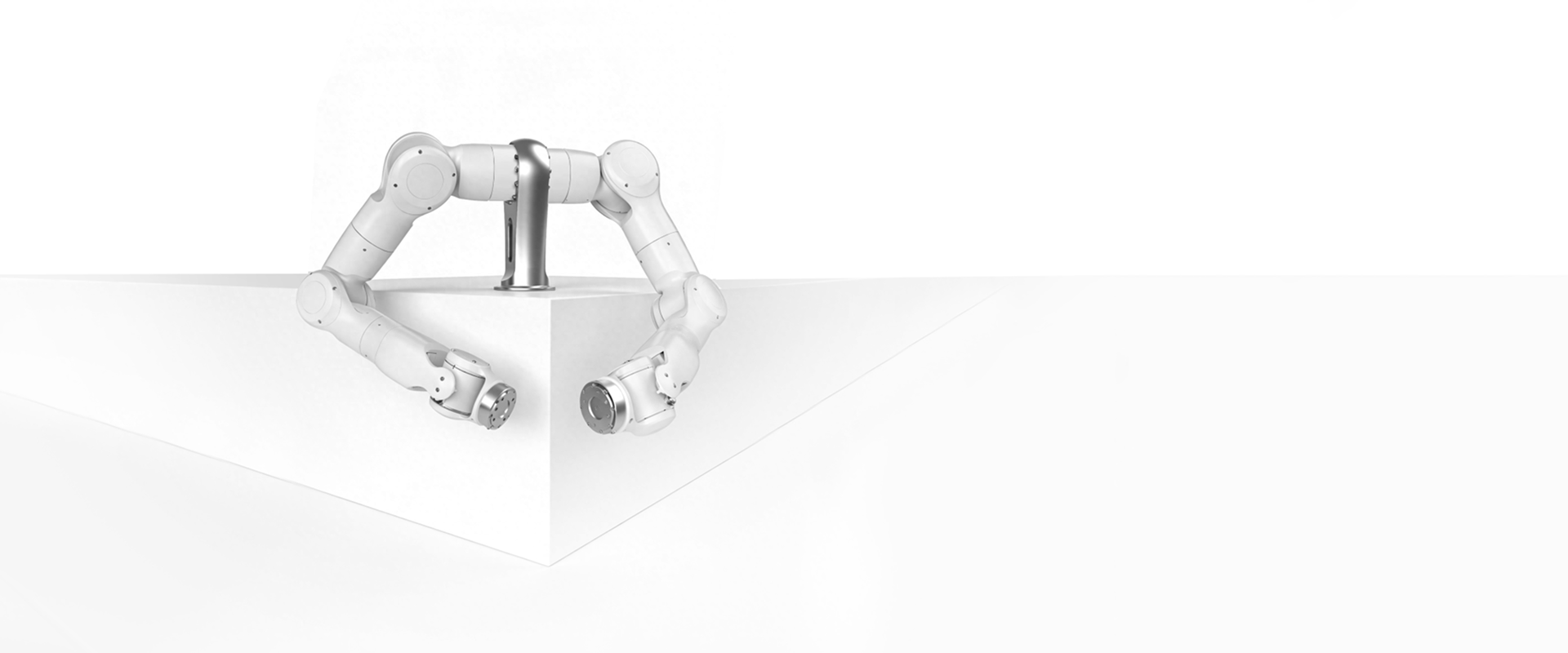

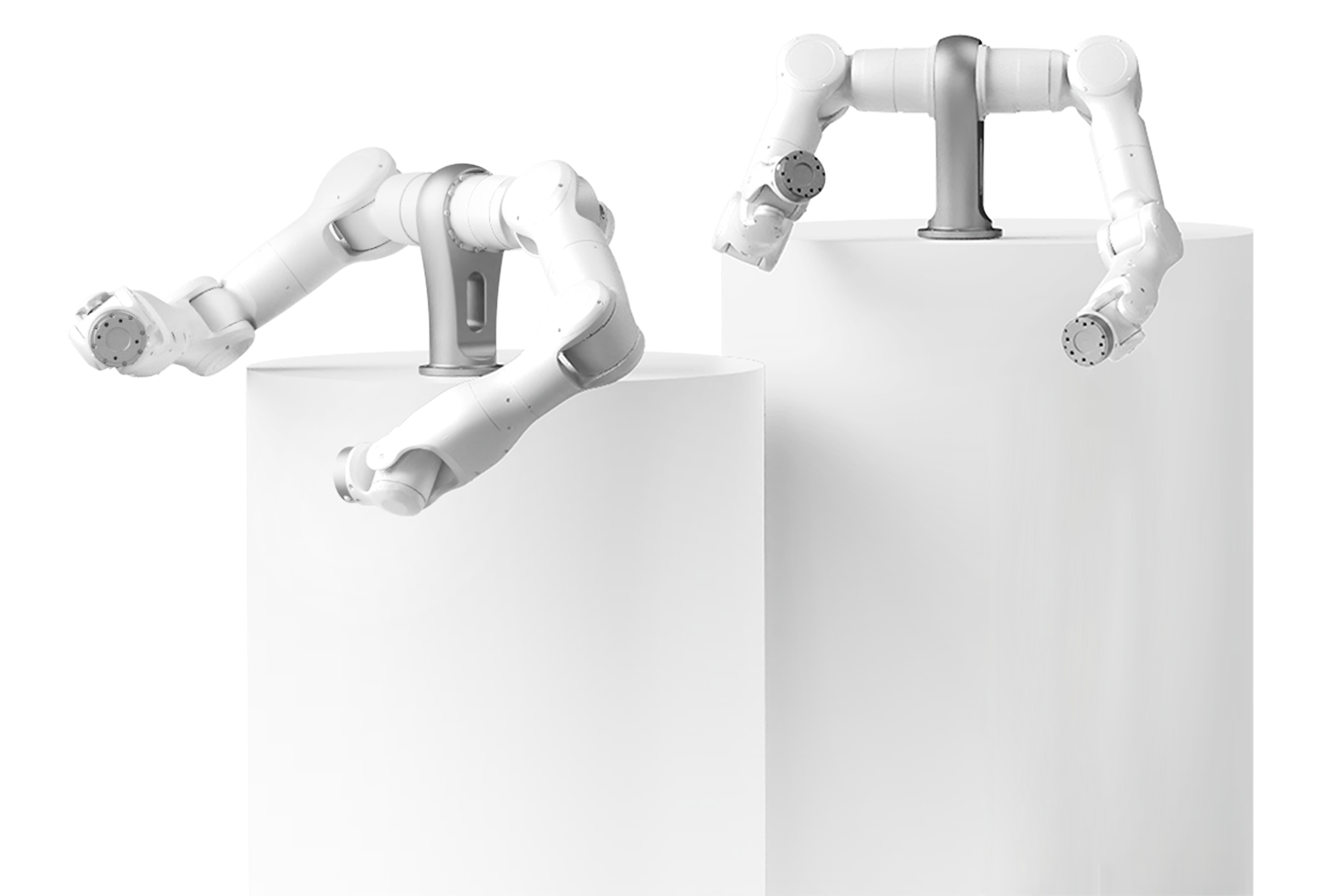

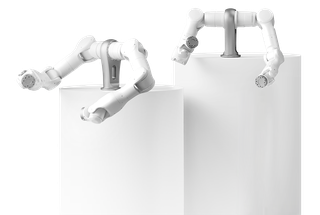

The Marvin M20S CCS-1050 is a seven-axis force-controlled humanoid robot arm from Tianji, rated for 20 kg over a 1050 mm working radius measured from the J2 axis to the end flange. Every joint carries a torque sensor as standard, giving force repeatability within 0.15 N, and the arm uses a cross-axis bionic wrist. At 30 kg per arm it reaches a 2 m/s TCP speed and repeats to ±0.1 mm.
FUNKTIONEN
- Seven degrees of freedom, 20 kg rated payload
- 1050 mm working radius from J2 to end flange
- Torque sensor on every joint as standard
- Force repeatability within 0.15 N

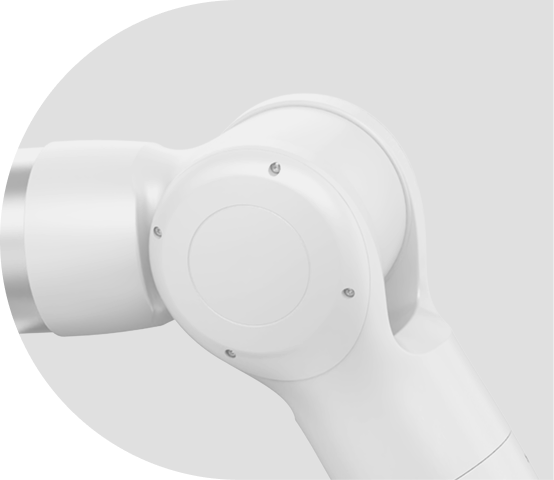

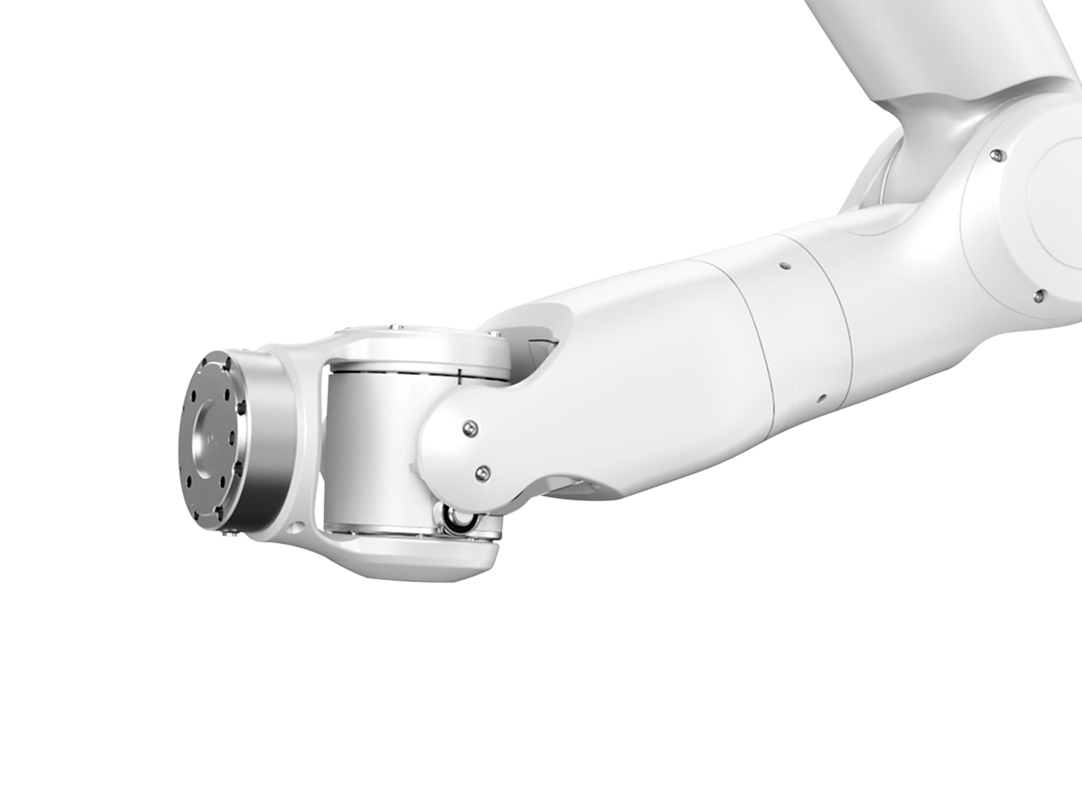

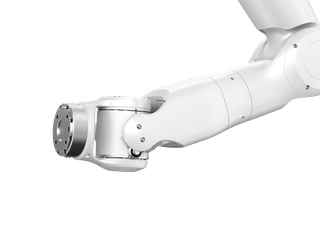

- Cross-axis bionic wrist
- Camera cabling can be routed inside to the end effector
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 30 kg |
|---|---|
| Traglast | 20 kg |
| Reichweite | 1.05 m |
| Wiederholgenauigkeit | ±0.1 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 7 |
| Geschwindigkeit | 7.2 km/h |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 30 kg |
|---|---|
| Traglast | 20 kg |
| Reichweite | 1.05 m |
| Wiederholgenauigkeit | ±0.1 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 7 |
| Geschwindigkeit | 7.2 km/h |
Bilder
martti
martti
martti
martti
martti
marttiBildbeiträge
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Marvin M20S CCS-1050?
The Marvin M20S CCS-1050 is a seven-axis force-controlled humanoid robot arm from Tianji, rated for 20 kg over a 1050 mm working radius measured from the J2 axis to the end flange. Every joint carries a torque sensor as standard, giving force repeatability within 0.15 N, and the arm uses a cross-axis bionic wrist.
Who makes the Marvin M20S CCS-1050?
The Marvin M20S CCS-1050 is made by Tianji Gento, a robotics company based in China.
How much does the Marvin M20S CCS-1050 cost?
Tianji Gento has not publicly announced pricing for the Marvin M20S CCS-1050. You can enquire through RobotAIGeek for current pricing.
What is the Marvin M20S CCS-1050 used for?
The Marvin M20S CCS-1050 is designed for montage and forschung. It is used in automobilindustrie, elektronik, and fertigung settings.
What is the payload capacity of the Marvin M20S CCS-1050?
The Marvin M20S CCS-1050 has a payload capacity of 20 kg and a reach of 1.05 m.
How much does the Marvin M20S CCS-1050 weigh?
The Marvin M20S CCS-1050 weighs 30 kg.
How fast is the Marvin M20S CCS-1050?
The Marvin M20S CCS-1050 can move at speeds of up to 7.2 km/h.
How many degrees of freedom does the Marvin M20S CCS-1050 have?
The Marvin M20S CCS-1050 has 7 degrees of freedom.
