BESCHREIBUNG

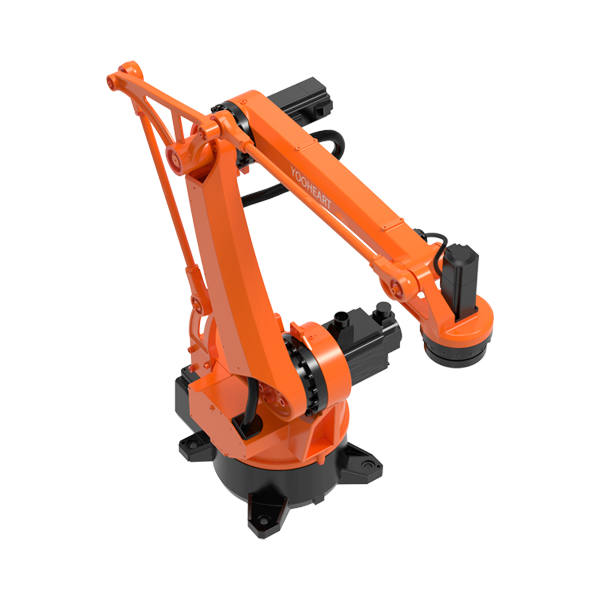

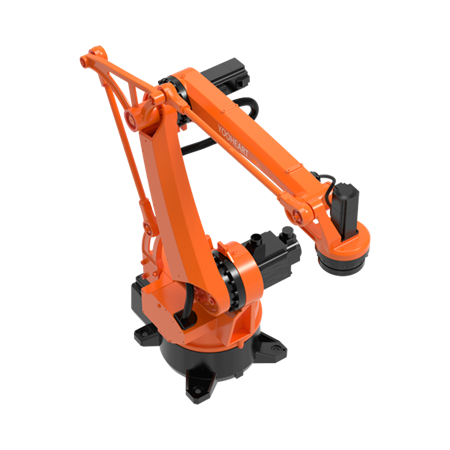

HY1010B-140 ist ein Industrial-Robot von Yooheart. Er ist für Montage, Pick-and-Place ausgelegt. Eckdaten: 60 kg, 10 kg Traglast, 1400 mm Reichweite, 4 Freiheitsgrade.

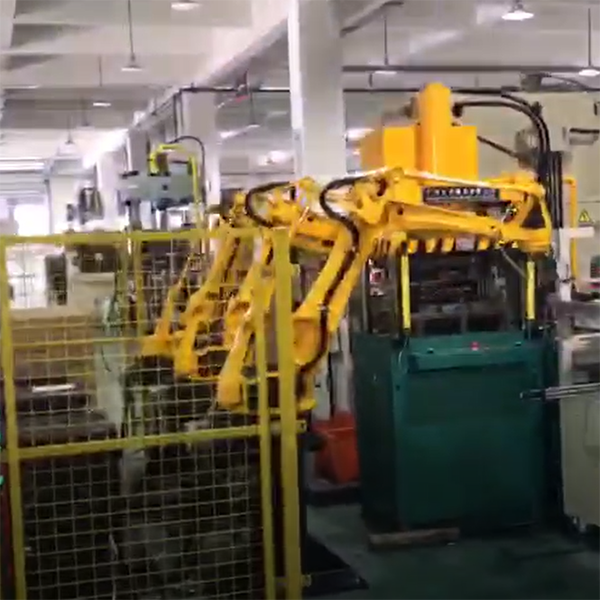

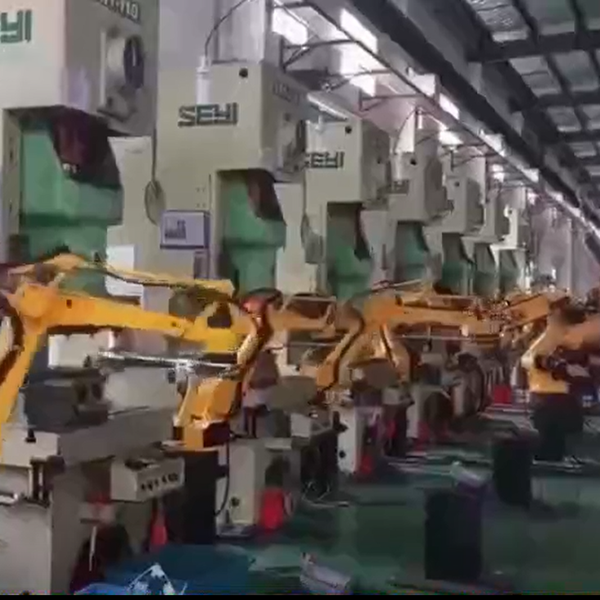

The HY1010B-140 is an industrial, stationary robot from Yooheart. This robot is designed for loading, unloading, and stamping operations within press production lines in manufacturing environments. The HY1010B-140 stands out with over 18,000 units sold and significant praise from its end-users. Yooheart also offers entry-level products that can help individuals or companies obtain dealer qualifications. Deployment evidence for this robot is available.
FUNKTIONEN
- 4-axis stamping robot for press production lines
- 10 kg maximum payload
- 60 kg robot weight
- ±0.08 mm repeatability
- 2.7 KVA power capacity
- IP65 protection
- Ground, wall or ceiling installation
- J1 ±170°, J4 +360° motion range
- J1 maximum speed 190°/s
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 60 kg |
|---|---|
| Traglast | 10 kg |
| Reichweite | 1.4 m |
| Wiederholgenauigkeit | ±0.08 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 4 |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 60 kg |
|---|---|
| Traglast | 10 kg |
| Reichweite | 1.4 m |
| Wiederholgenauigkeit | ±0.08 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 4 |
Bilder
martti
martti
martti
martti
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the HY1010B-140?
The HY1010B-140 is an industrial, stationary robot from Yooheart. This robot is designed for loading, unloading, and stamping operations within press production lines in manufacturing environments. The HY1010B-140 stands out with over 18,000 units sold and significant praise from its end-users.
Who makes the HY1010B-140?
The HY1010B-140 is made by Yooheart, a robotics company based in China.
How much does the HY1010B-140 cost?
Yooheart has not publicly announced pricing for the HY1010B-140. You can enquire through RobotAIGeek for current pricing.
What is the HY1010B-140 used for?
The HY1010B-140 is designed for montage and pick-and-place. It is used in fertigung settings.
What is the payload capacity of the HY1010B-140?
The HY1010B-140 has a payload capacity of 10 kg and a reach of 1.4 m.
How much does the HY1010B-140 weigh?
The HY1010B-140 weighs 60 kg.
How many degrees of freedom does the HY1010B-140 have?
The HY1010B-140 has 4 degrees of freedom.
