BESCHREIBUNG

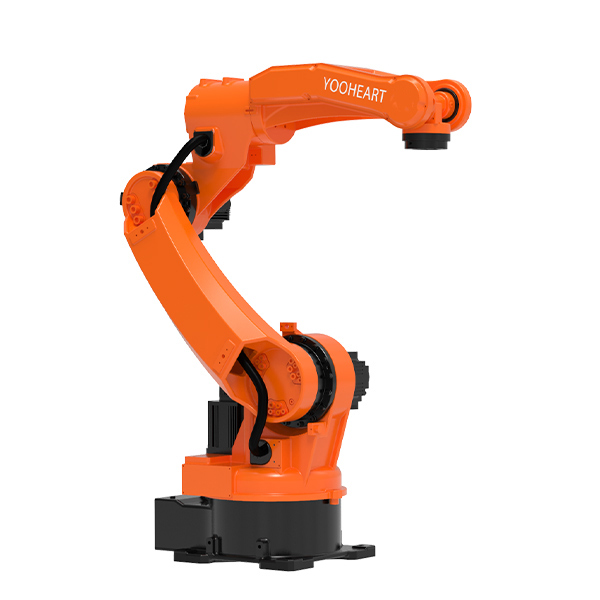

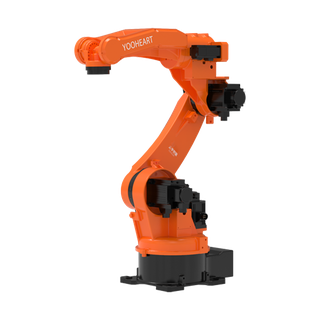

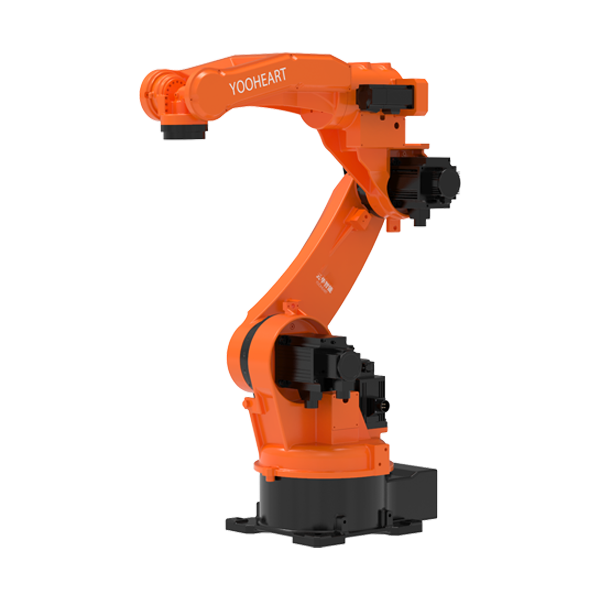

HY1010A-143 ist ein Industrial-Robot von Yooheart. Er ist für Pick-and-Place, Transport ausgelegt. Eckdaten: 170 kg, 10 kg Traglast, 1430 mm Reichweite, 6 Freiheitsgrade.
Introduction HY1010A-143 is a 6 axis handling robot which can be used for Handling, palletizing and depalletizing. Here it is used for stamping function for press machine. For some special situations, the parts will have to change more pose in order to meet press machine’s requirements, So soluti...
FUNKTIONEN
- 6-axis handling and stamping robot
- 10 kg maximum payload
- 170 kg robot weight
- ±0.08 mm repeatability
- 3 KVA power capacity
- IP65 protection
- Ground, wall or ceiling installation
- J1 ±170°, J6 ±360° motion range
- J1 maximum speed 180°/s
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 170 kg |
|---|---|
| Traglast | 10 kg |
| Reichweite | 1.43 m |
| Wiederholgenauigkeit | ±0.08 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
TECHNISCHE DATEN
| Physisch | |
| Gewicht | 170 kg |
|---|---|
| Traglast | 10 kg |
| Reichweite | 1.43 m |
| Wiederholgenauigkeit | ±0.08 mm |
| Mobilität | |
| Bewegungsart | Stationär |
| Freiheitsgrade | 6 |
Bilder
martti
martti
martti
martti
martti
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the HY1010A-143?
Introduction HY1010A-143 is a 6 axis handling robot which can be used for Handling, palletizing and depalletizing. Here it is used for stamping function for press machine. For some special situations, the parts will have to change more pose in order to meet press machine’s requirements, So soluti...
Who makes the HY1010A-143?
The HY1010A-143 is made by Yooheart, a robotics company based in China.
How much does the HY1010A-143 cost?
Yooheart has not publicly announced pricing for the HY1010A-143. You can enquire through RobotAIGeek for current pricing.
What is the HY1010A-143 used for?
The HY1010A-143 is designed for pick-and-place and transport. It is used in fertigung settings.
What is the payload capacity of the HY1010A-143?
The HY1010A-143 has a payload capacity of 10 kg and a reach of 1.43 m.
How much does the HY1010A-143 weigh?
The HY1010A-143 weighs 170 kg.
How many degrees of freedom does the HY1010A-143 have?
The HY1010A-143 has 6 degrees of freedom.
