BESCHREIBUNG
Hercules 500 ist ein Mobile-Robots von Humro. Er ist für Intralogistik, Heben, Materialhandhabung ausgelegt. Eckdaten: 500 kg Traglast.

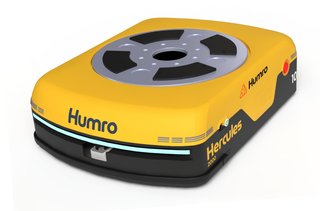

Hercules 500 is a low-profile autonomous mobile robot from Humro, the robotics brand of Pune-based ARAPL, that drives under storage shelves, lifts them and carries them to picking stations for goods-to-person order fulfilment. The robot navigates by laser SLAM and carries a 3D laser scanner for top-side safety protection, along with LiDAR scanning, collision avoidance and emergency stop buttons. It lifts 60 mm, which is enough to raise a shelf off the floor, and turns in place within a 1,035 mm rotation diameter so it can rotate a shelf to present the required face. The Hercules 500 carries 500 kg, measures 924 x 760 x 300 mm and travels at 1.5 m/s when loaded, up to 2 m/s maximum, on gradients of up to 5 percent. Humro says the Hercules range covers payloads from 100 kg to 1,200 kg and that its fleet software can coordinate up to 100 robots; a Hercules 2000 is also listed.
FUNKTIONEN
- Shelf-lifting autonomous mobile robot for goods-to-person picking
- Rated capacity: 500 kg (1,100 lb)
- Lifting height: 60 mm
- Dimensions (L x W x H): 924 x 760 x 300 mm
- Rotation diameter: 1,035 mm
- Max travelling speed (loaded): 1.5 m/s
- Maximum speed: 2 m/s
- Max gradeability: 5%
- Laser SLAM navigation
- Top safety protection: 3D laser scanner
- LiDAR scanning for obstacle and people detection
- Collision avoidance and emergency stop buttons
- Configurable restricted and slow-down zones
- Fleet management for up to 100 robots
- Hercules range payload options from 100 kg to 1,200 kg
- Hercules 2000 also listed
TECHNISCHE DATEN
| Physisch | |
| Abmessungen | L 924 mm × W 760 mm × H 300 mm |
|---|---|
| Traglast | 500 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 5.4 km/h |
| Einsatzumgebung | Indoor warehouse floors |
| Sensorik & Rechenleistung | |
| Sensoren | 3D laser scanner, LiDAR |
| Software / KI | Laser SLAM navigation; fleet management for up to 100 robots |
ROBOTER-FOREN
Foren werden geladen...
TECHNISCHE DATEN
| Physisch | |
| Abmessungen | L 924 mm × W 760 mm × H 300 mm |
|---|---|
| Traglast | 500 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 5.4 km/h |
| Einsatzumgebung | Indoor warehouse floors |
| Sensorik & Rechenleistung | |
| Sensoren | 3D laser scanner, LiDAR |
| Software / KI | Laser SLAM navigation; fleet management for up to 100 robots |
Bilder
martti
Bildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Hercules 500?
Hercules 500 is a low-profile autonomous mobile robot from Humro, the robotics brand of Pune-based ARAPL, that drives under storage shelves, lifts them and carries them to picking stations for goods-to-person order fulfilment.
Who makes the Hercules 500?
The Hercules 500 is made by Humro, a robotics company based in India.
How much does the Hercules 500 cost?
Humro has not publicly announced pricing for the Hercules 500. You can enquire through RobotAIGeek for current pricing.
What is the Hercules 500 used for?
The Hercules 500 is designed for intralogistik, heben, materialhandhabung, and kommissionierung. It is used in lager & logistik and einzelhandel settings.
What is the payload capacity of the Hercules 500?
The Hercules 500 has a payload capacity of 500 kg.
How fast is the Hercules 500?
The Hercules 500 can move at speeds of up to 5.4 km/h.
